7.6 Assembling the pedal and the setpoint
device

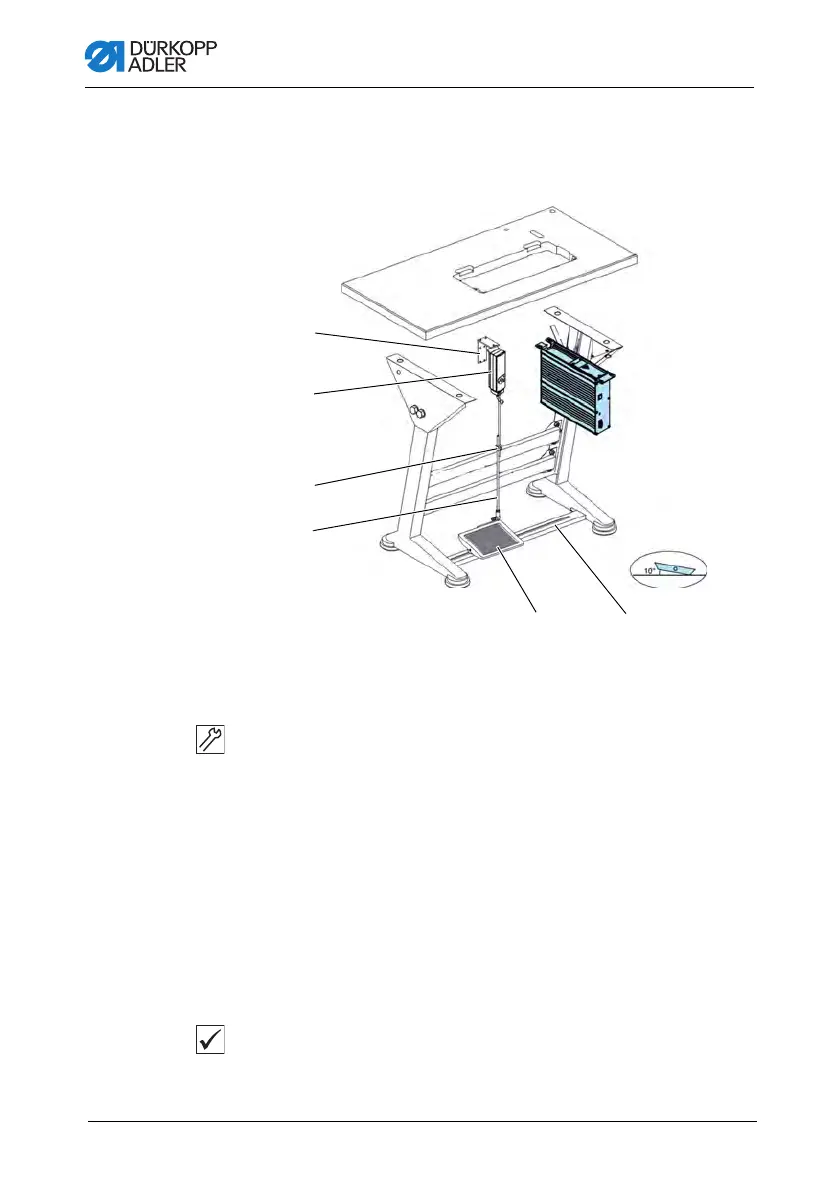

Fig. 43: Assembling the pedal and teh setpoint device
To assemble the pedal and the setpoint device:
1. Place the pedal (5) on the cross strut (6) and align it.
The pedal (5) is under the needle.
2. Assemble the pedal (5).
3. Screw the setpoint device (2) onto the bracket (1).
4. Screw the bracket (1) under the table plate so that the pedal
rod (4) runs to the pedal (5) at right-angles to the setpoint
device (2).
5. Hang the pedal rod (4) with the ball socket on the setpoint
device (2) and the pedal (5).
Proper setting
The pedal is correctly adjusted if it has an inclination of 10° when
released.
(1) - Bracket
(2) - Setpoint device
(3) - Screw
(4) - Pedal rod
(5) - Pedal
(6) - Cross strut
