4.12.4 Disassembling the edge pinker

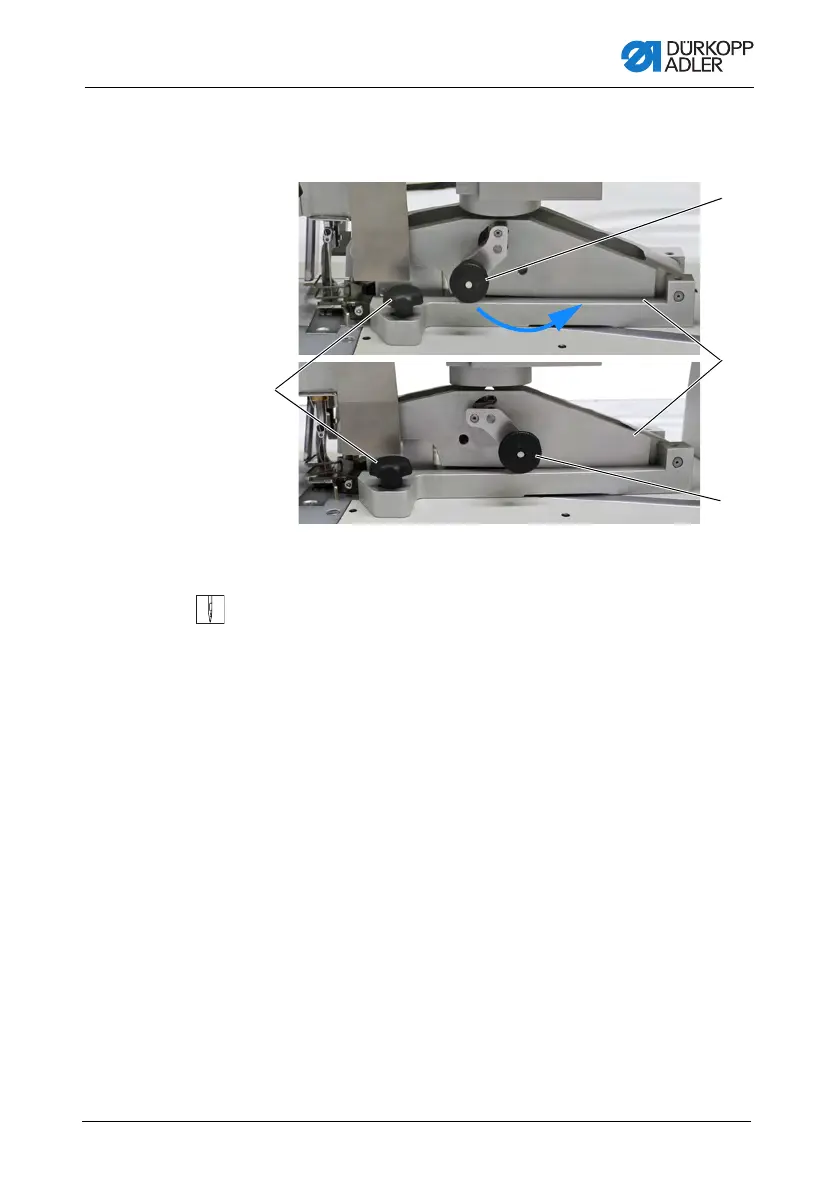

Fig. 29: Disassembling the edge pinker
To disassemble the edge pinker:
1. Move the lever (2) to the right.
Make sure the lever (2) snaps into place.
2. Loosen the screw (1).
3. Press the pedal back.
 The sewing foot is lifted.
The edge pinker (3) can be removed completely.
(1) - Screw
(2) - Lever
(3) - Edge pinker
