DURKOPP ADLER 171 User Manual

Setup
Operating Instructions 171/173 - 02.0 - 09/2019 81
7.9 Assembling the control panel

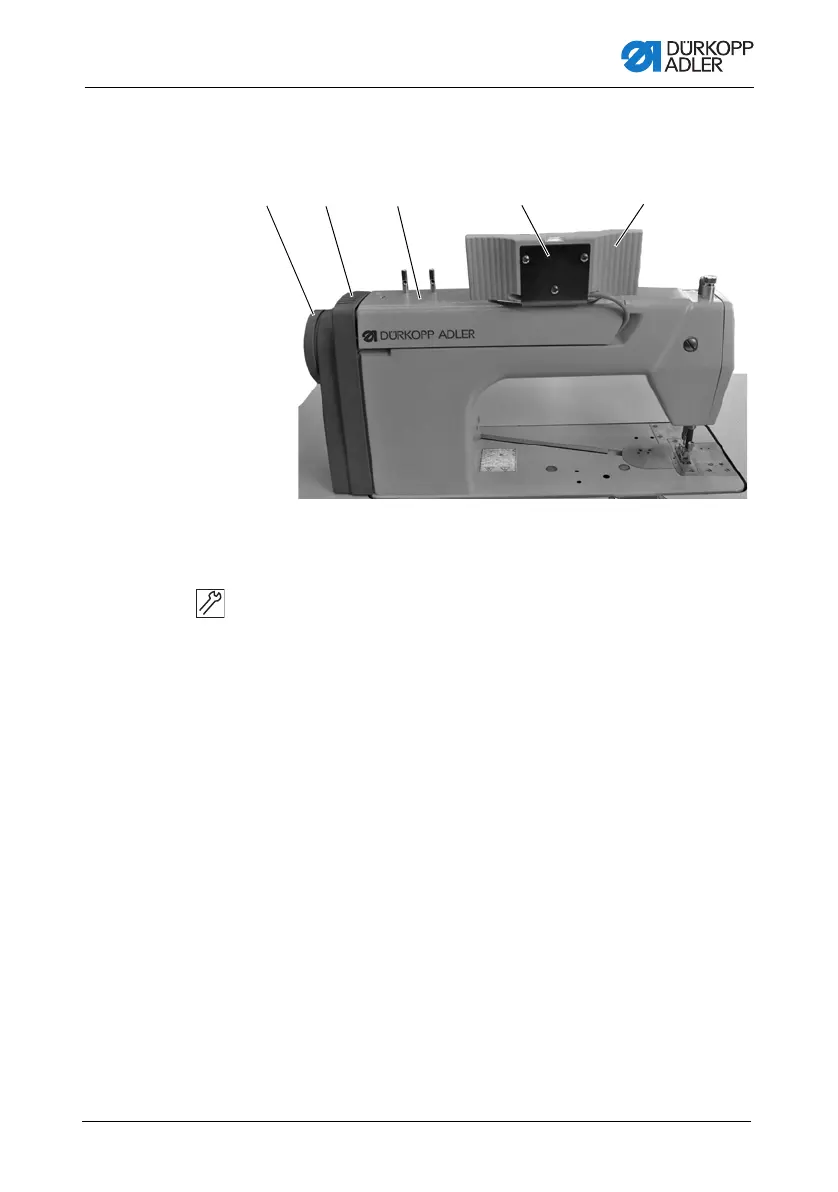

Fig. 46: Assembling the control panel (1)
To assemble the control panel:
1. Loosen the screws of the arm cover (3).
2. Disassemble the arm cover (3).
3. Disassemble the handwheel (1).
4. Disassemble the handwheel cover (2).
5.
Screw the control panel (5) onto the bracket (4).
(1) - Handwheel
(2) - Handwheel cover
(3) - Arm cover
(4) - Bracket
(5) - Control panel
