Operation
Operating Instructions 171/173 - 02.0 - 09/2019 49
4.12.2 Adjusting the height of the chain cutter guard

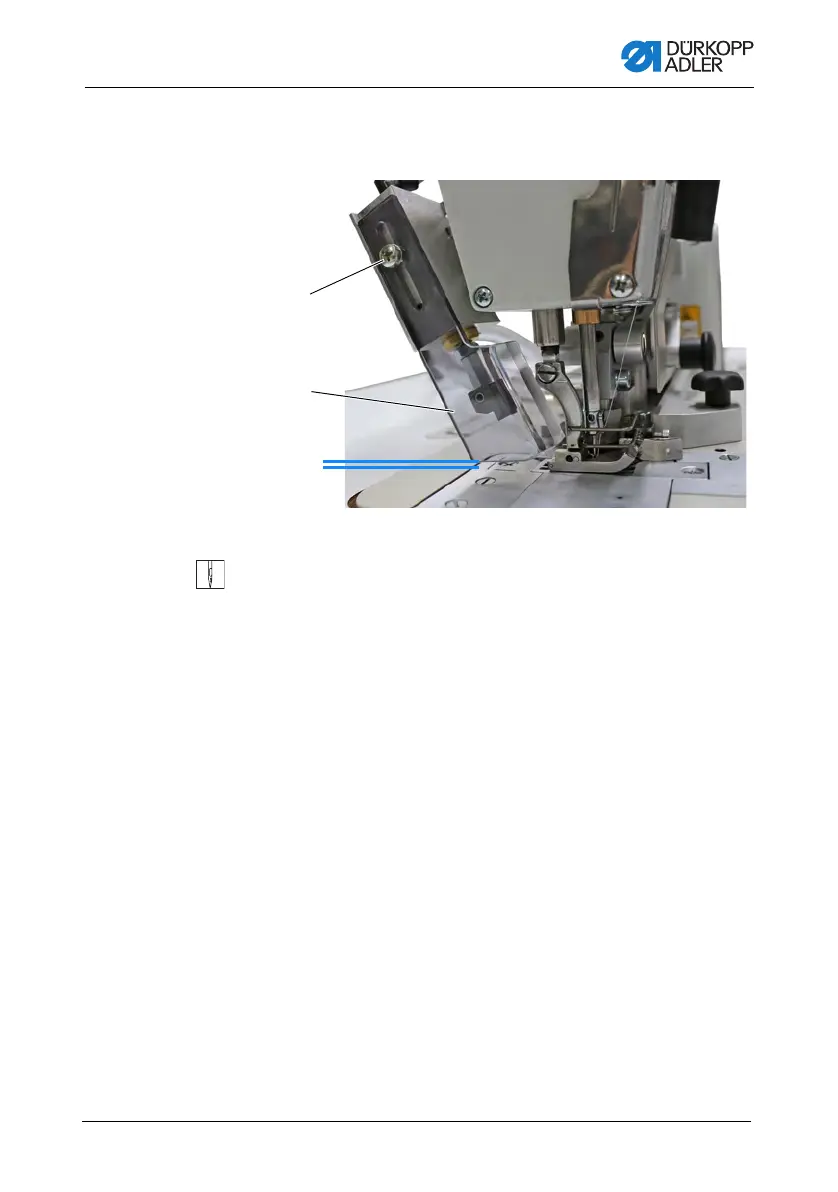

Fig. 27: Adjusting the height of the chain cutter guard
To adjust the height of the chain cutter guard:
1. Loosen the screw (1).
2. Adjust the height of the chain cutter guard (2).
3. Tighten the screw (1).
The chain cutter guard (2) cannot be positioned higher than 8 mm
above the throat plate.
(1) - Screw (2) - Chain cutter guard
①
②
max. 8 mm
