DURKOPP ADLER 171 - Assembling the Compressed Air Maintenance Unit

Setup
88 Operating Instructions 171/173 - 02.0 - 09/2019
7.13.1 Assembling the compressed air maintenance
unit

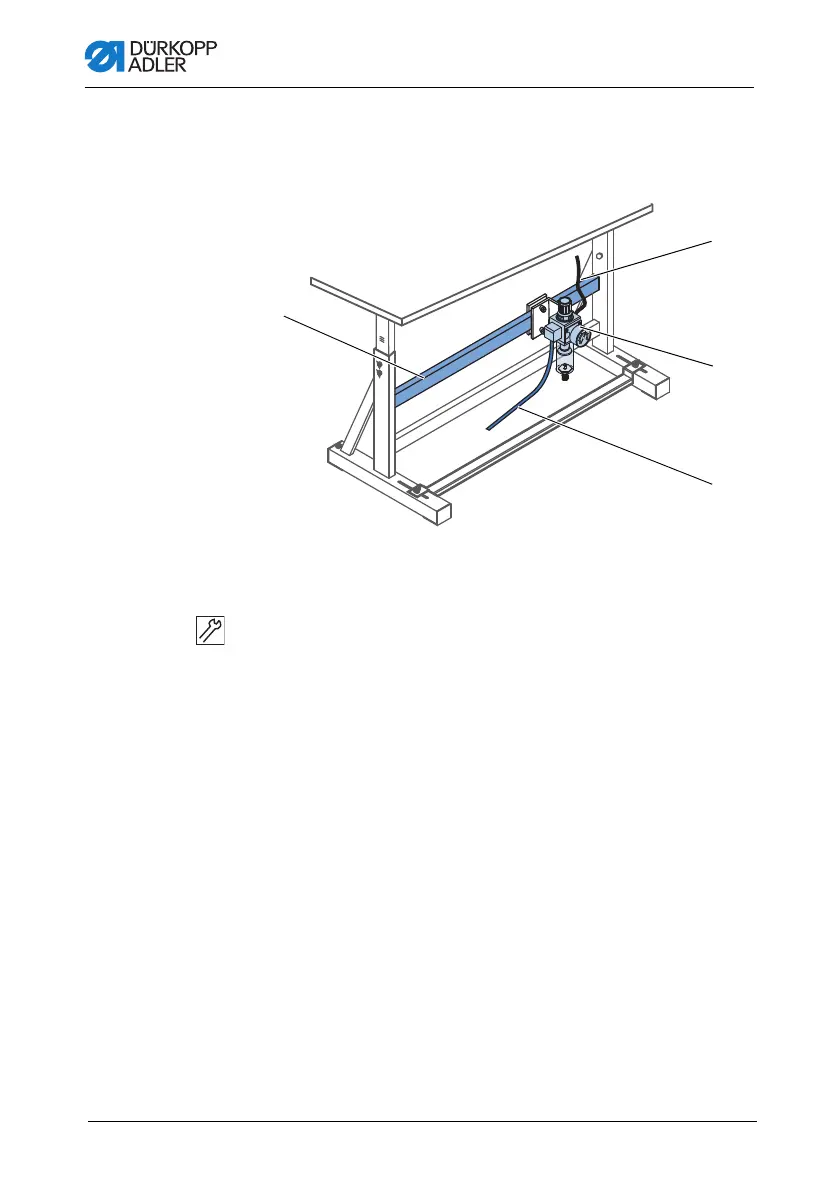

Fig. 52: Assembling the compressed air maintenance unit
To assemble the compressed air maintenance unit:
1. Attach the compressed air maintenance unit (3) to the cross
bar (1) of the stand using the bracket, screws and clip.
2. Connect the machine hose (4) to the compressed air mainte-
nance unit (3).
3. Connect the connection hose (2) to the compressed air supply
using a hose coupling R 1/4”.
(1) - Cross bar
(2) - Connection hose
(3) - Compressed air maintenance
unit
(4) - Machine hose
0
2
8
4
6
10
①
④
③
②
