4.11.1 Setting the roller top feed length
The top feed length can be adjusted by turning the adjusting wheel
continuously between 1 and 4 mm.

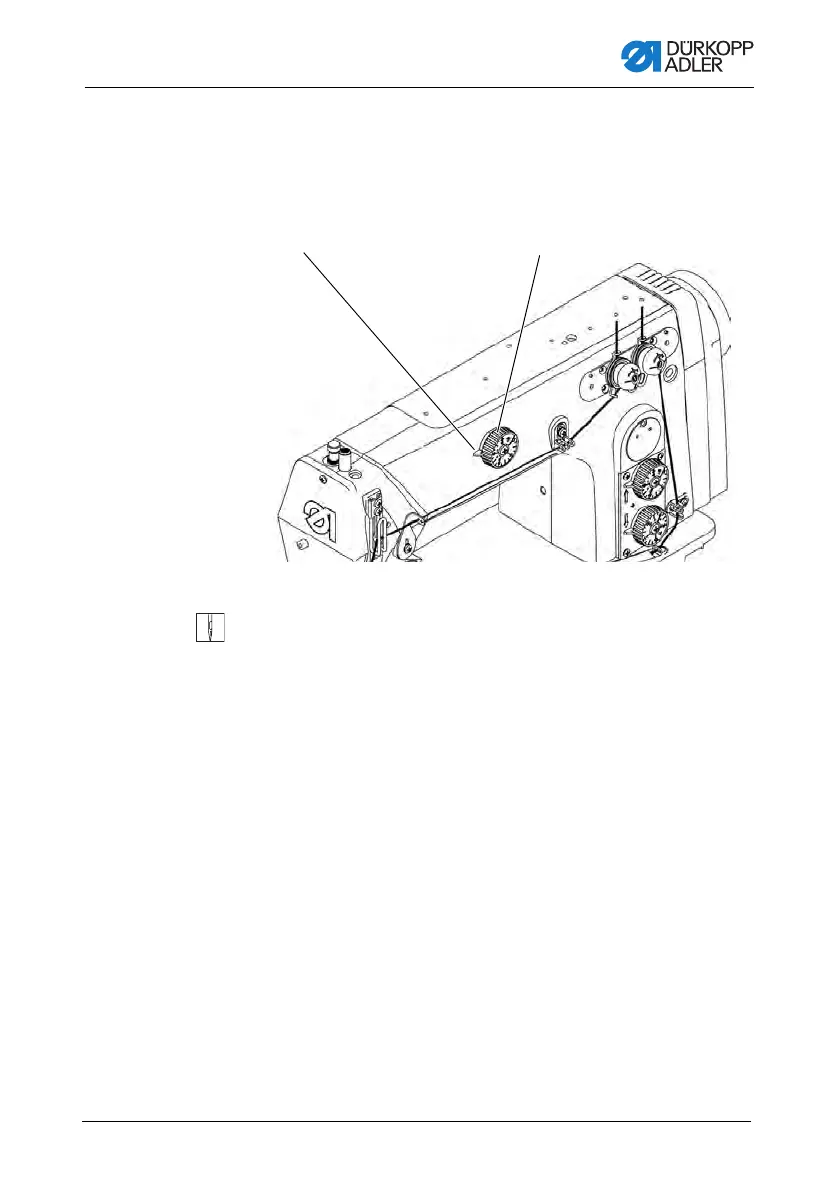

Fig. 23: Setting the roller top feed length
To set the roller top feed length:
1. Turn the adjusting wheel (2).
• increasing the roller top feed length: turn the adjusting
wheel (1) counterclockwise
• decreasing the roller top feed length: turn the adjusting
wheel (1) clockwise
 The adjusting mark (1) indicates the selected value.
(1) - Adjusting mark (2) - Adjusting wheel
