Setup
84 Operating Instructions 171/173 - 02.0 - 09/2019
7.11 Assembling the oil extraction line

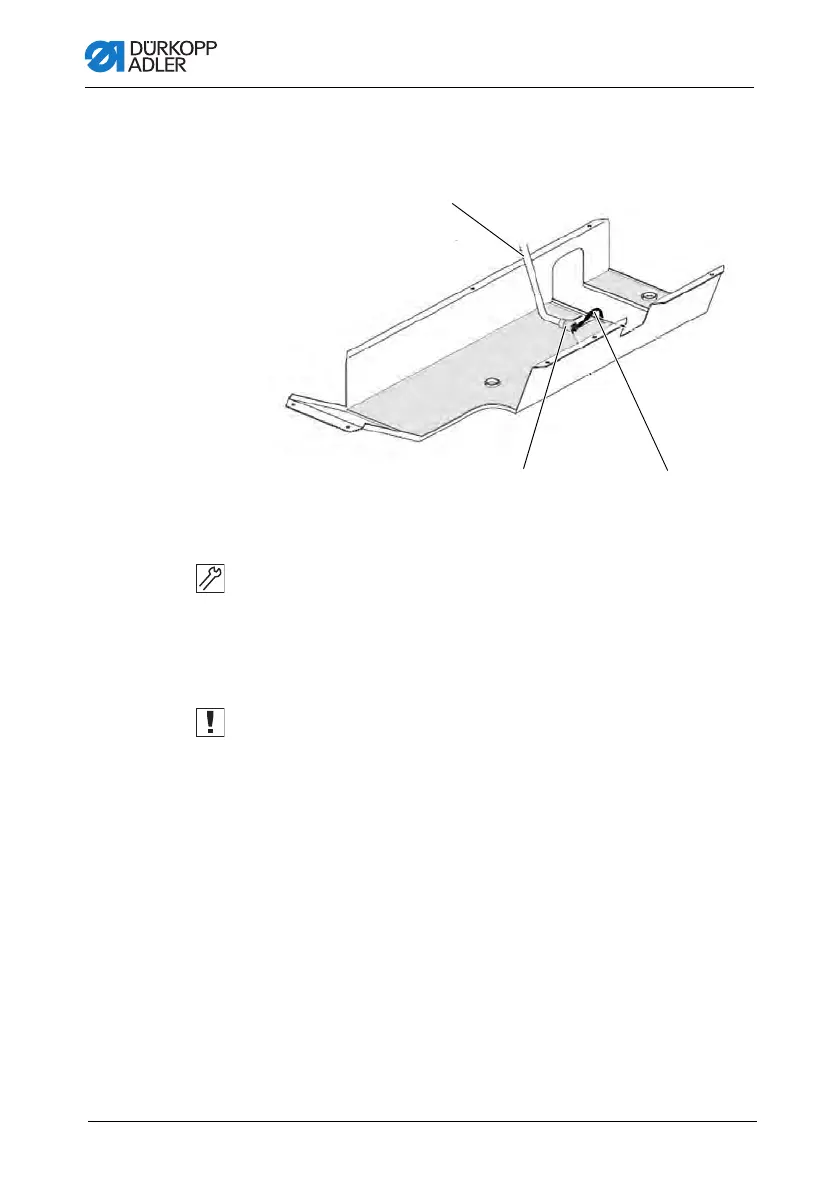

Fig. 50: Assembling the oil extraction line
To assemble the oil extraction line:
1. Tilt the machine head.
2. Wrap the suction filter (2) with felt.
3. Secure the suction filter (2) to the oil plate using the clamp (3).
Important
Lay and secure the oil hose (1) such that it does not come into
contact with any moving parts.
4. Erect the machine head.
(1) - Oil hose
(2) - Suction filter
(3) - Clamp
①
②③
