dynasonics TFX Ultra User Manual

CE COMPLIANCE DRAWINGS
LOOP WIRES THROUGH
FERRITE BEAD ONE TIME
FERRITE BEAD
DYNASONICS P/N: D003-0117-304
STEWARD P/N: 28A2024-0A2*
MALE CONDUIT FITTING
DYNASONICS P/N: D005-0938-002
STEEL CITY P/N: LT701*
ARMOURED CONDUIT
DYNASONICS P/N: D002-1401-003
ANACONDA 1/2" UA GRAY*
1/2" X 1-1/8" SS NPT NIPPLE
DYNASONICS P/N: D002-1203-002*
LOOP WIRES THROUGH
FERRITE BEAD TWO TIMES
FERRITE BEAD
DYNASONICS P/N: D003-0117-089
STEWARD P/N: 28B1020-100*
OUTLET BODY
DYNASONICS P/N: D003-0116-006
APPLETON ELECTRIC P/N: C19*
COVER
DYNASONICS P/N: D003-0116-005
APPLETON ELECTRIC P/N: 190G*
GASKET
DYNASONICS P/N: D003-0116-008
APPLETON ELECTRIC P/N: GASK1941*
* OR EQUIVALENT

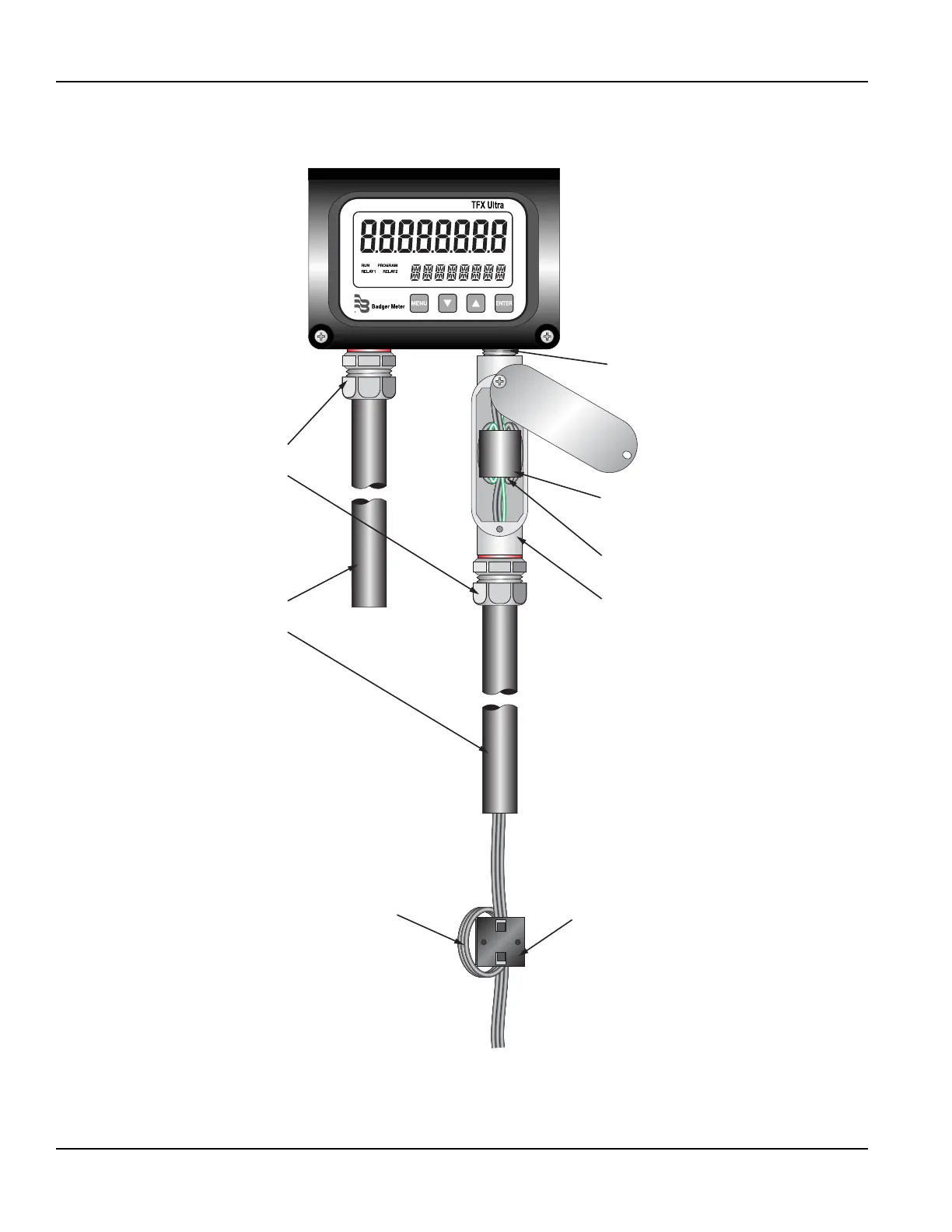

Figure 73: CE compliance drawing, AC power
CE Compliance Drawings
Page 104 May 2016TTM-UM-00136-EN-06
