Ethernet Port Settings
Changing IP Connections
Follow this procedure to get to the internal web page of the Ethernet Module. From the conguration page, you will be able
to edit the Device ID and save the changes.
OTE:N Your actual internal web pages may differ in appearance from those below.
OTE:N USB-to-Ethernet adapter, skip to step 9. If connecting Ethernet directly, the Ethernet portion of the computer must
be configured correctly.
1. Disconnect the Ethernet cable from the PC.

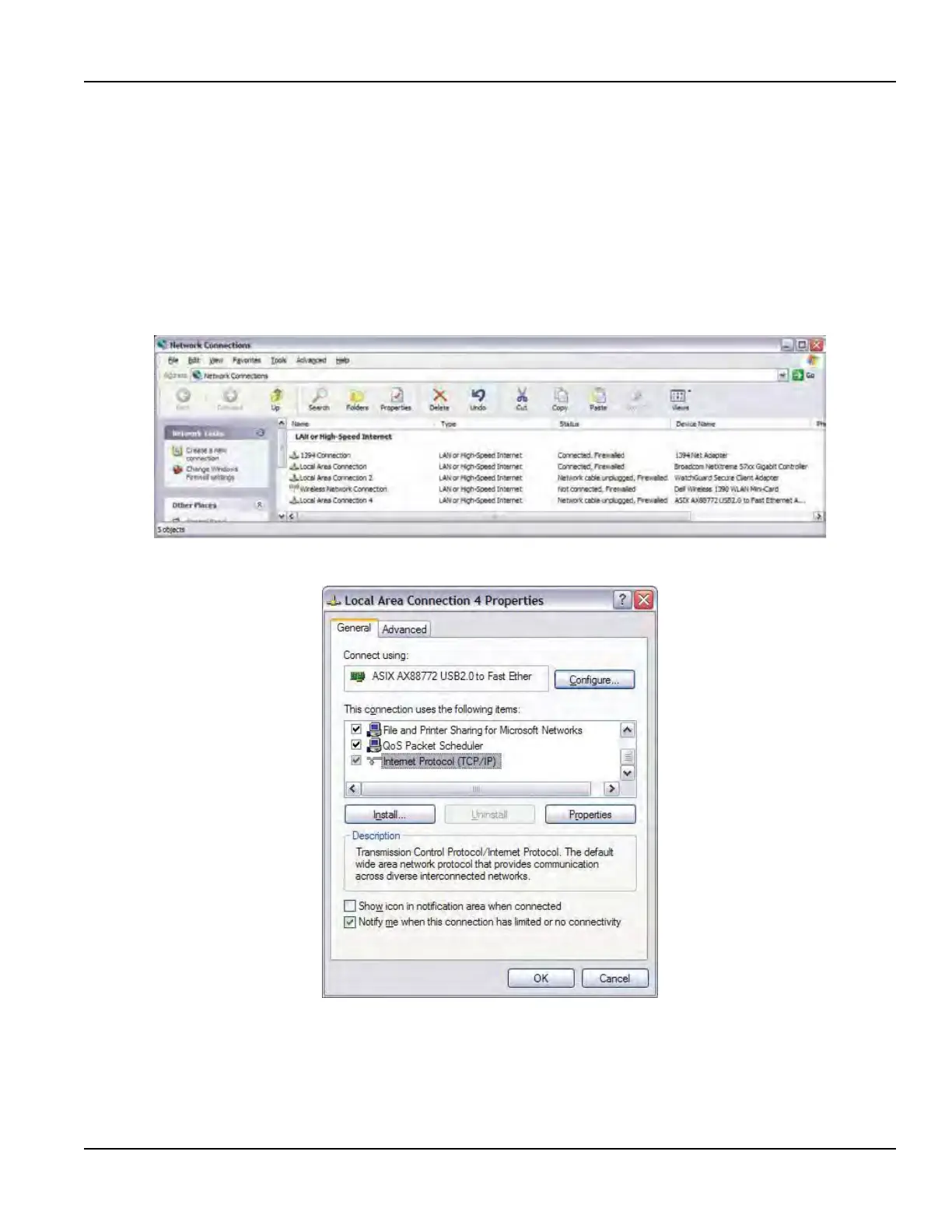

2. From the Control Panel, open Network Connections.
3. Double-click on the Ethernet Adapter (1394 is rewire, not Ethernet) to bring up its properties.
4. Scroll down and select Internet Protocol (TCP/IP).
5. Click Properties.
Communications Protocols
Page 83 May 2016 TTM-UM-00136-EN-06
