PARAMETER CONFIGURATION USING THE KEYPAD
A transmitter with a keypad can be configured through the keypad interface or by using the Windows-compatible UltraLink
software utility. When a USB programming cable is connected, the RS485 and frequency outputs are disabled.
Transmitters without a keypad can only be configured using the UltraLink software utility. See “Parameter Configuration
Using UltraLink Software” on page48 for software details. Of the two methods of configuration, the UltraLink software
utility provides more advanced features and offers the ability to store and transfer meter configurations between similar
transmitters. All entries are saved in non-volatile FLASH memory and are retained indefinitely in the event of a power loss.
The transmitter’s keypad is a four-key tactile feedback interface that lets you view and change configuration parameters used
by the operating system.
Keypad
Mode
Indicators

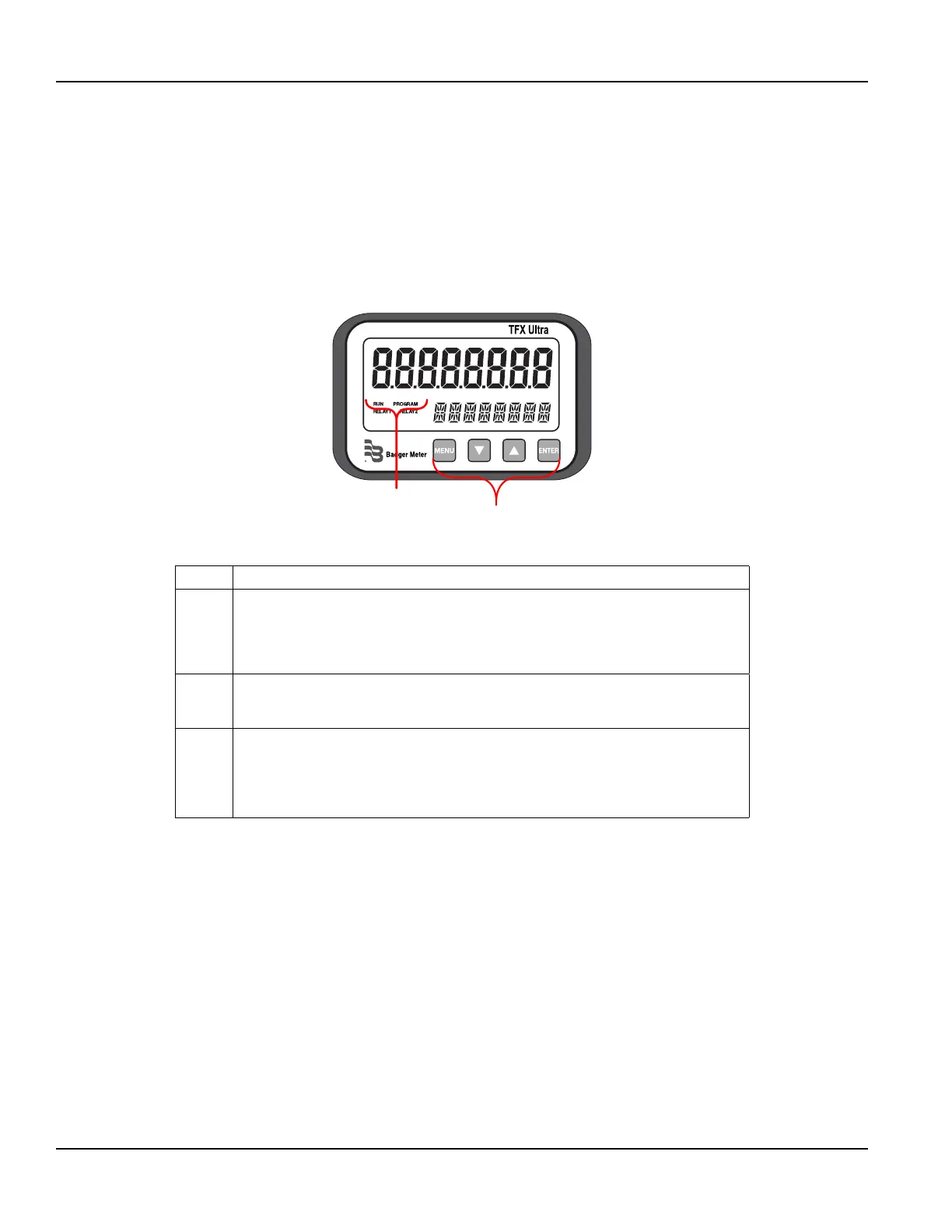

Figure 39: Keypad interface
Key Function
MENU
Press MENU to toggle between RUN mode and PROGRAM mode.
Press MENU while in PROGRAM mode to exit from configuration parameter selection
and menus. However, if you changed any configuration parameters, you will be
prompted to save the changes before returning to RUN mode. At the prompt, select
YES to save the changes.
The arrow keys have two functions. Use them to:
• Scroll through the menus and configuration parameters
• Adjust numerical values
ENTER
Press ENTER from the RUN mode to view the current software version.
Press ENTER from the PROGRAM mode to:
• Access the configuration parameters in the various menus.
• Initiate changes in configuration parameters.
• Accept configuration parameter changes.
Table 7: Keypad functions
Heat Flow for Energy Model Only
Page 34 May 2016TTM-UM-00136-EN-06
