The first screen is the RUN mode screen, which contains real-time information regarding flow rate, totals, signal strength,
communications status, and the transmitter’s serial number. The COMM indicator in the lower right corner indicates that the
serial connection is active. If the COMM box contains a red ERROR indication, select Communications on the Menu bar and
select Initialize. Choose the appropriate COM port and the RS232 / USB Com Port Type. Proper communication is verified
when a green OK is indicated in the lower right corner of the PC display and the Last Update indicator in the text area on the
left side of the screen changes from red to an active clock indication.

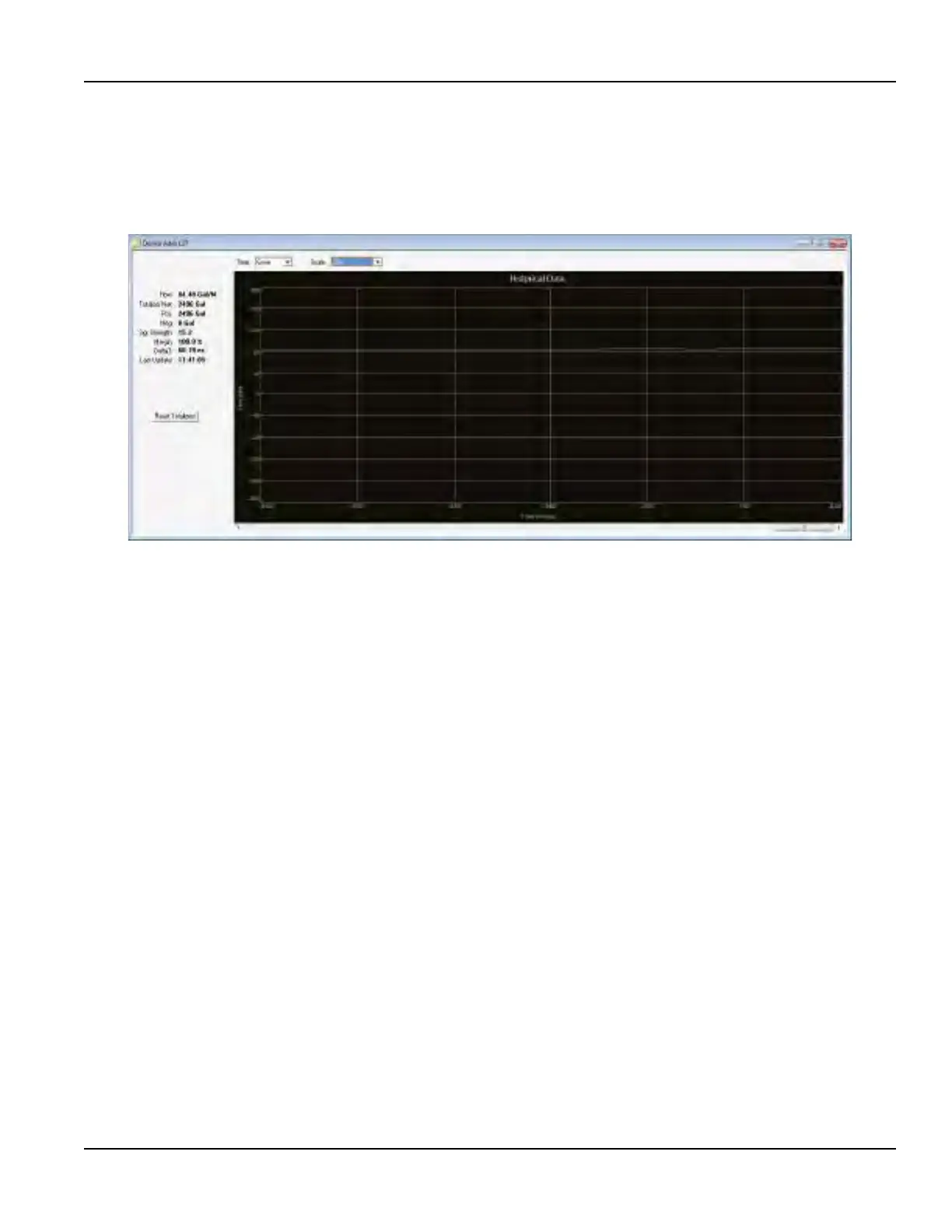

Figure 41: Data display screen
Parameter Conguration Using UltraLink Software
Page 49 May 2016 TTM-UM-00136-EN-06
