Channel 2, Control Output Configuration for Flow-Only Model
Two independent open-collector transistor outputs are included with the Flow-Only model. Each output can be
configured independently.

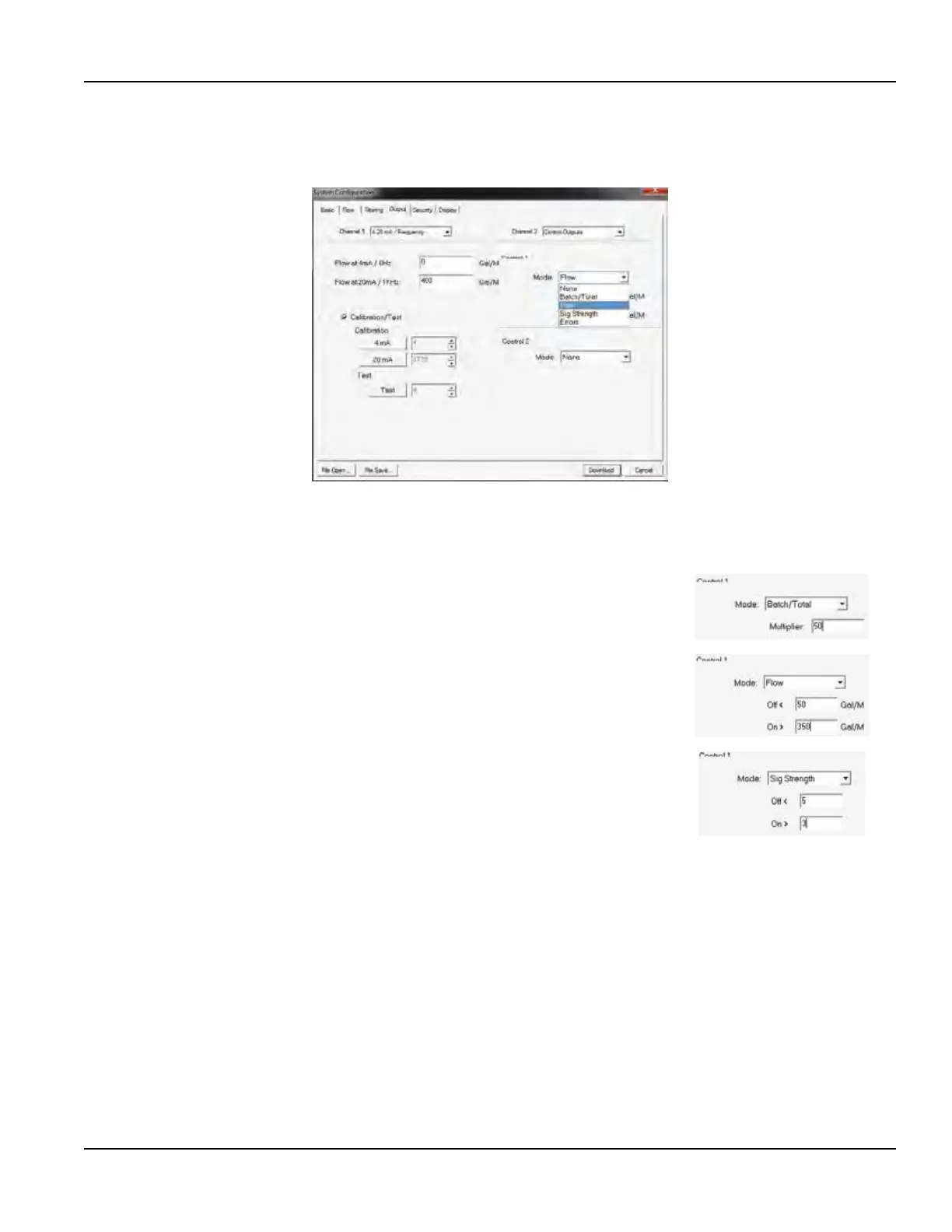

Figure 47: Channel 2 output choices
None
All alarm outputs are disabled.
Batch / Total
Multiplier value to which the totalizer will accumulate before resetting to zero and
repeating the accumulation. This value includes any exponents that were entered in the
BASIC menu as TOTAL E.
Flow
ON sets value at which the alarm output will switch from OFF to ON.
OFF sets value at which the alarm output will switch from ON to OFF.
Signal Strength
ON sets value at which the alarm output will turn ON.
OFF sets value at which the alarm output will turn OFF.
Errors
Alarm outputs on any error condition. See “Brad Harrison® Connector Option” on page95.
