Eaton M-Max series User Manual

Parameters
106 M-Max Series Adjustable Frequency Drive MN04020003E—October 2013 www.eaton.com
Example C
Comparable example A.
P10.10 = 0
P10.9 = 2: Execute program cycle once in steps.
Each fixed frequency (P10.1–P10.10) is called individually in the program sequence. After the
assigned run times (P10.11–P10.18) have elapsed, the output frequency is set to zero
according to the Stop function (P6.8) before the next numerically fixed frequency value is
executed.
A clockwise rotating field (REV) can also be assigned here to the individual fixed frequencies
as a decimal program number at parameter P10.10 (see Page 102).

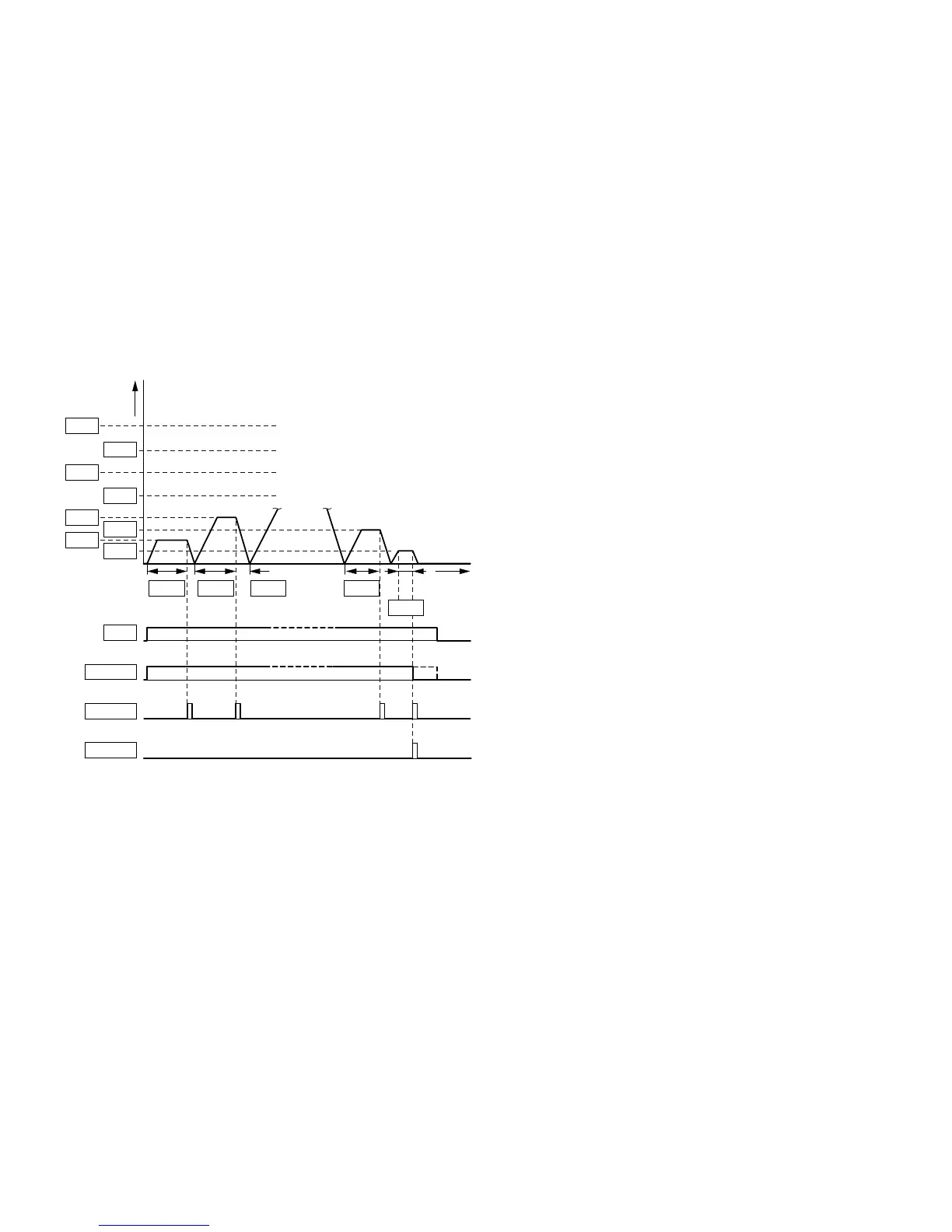

Example C, Program Cycle Executed Once in Steps (P10.9 = 2, P10.10 = 0)
P10.6
P10.5
P10.4
P10.7
P10.8
P3.21
P10.17
P10.18
P10.13P10.13P10.11
f
(Hz)
FWD
P5.3 = 18
P5.2 = 17
P5.1 = 16
P10.3
P10.2
P10.1
t
1
