The mounting is carried out without tools at the corresponding cutouts in the housing
of the MMX (snap fitting). Plug and connection cable are then fitted to the interface of
the MMX (below the LCD display unit).
Connecting the MMX-NET-XB Interface Module with the Fieldbus Interface Cards
Note: Before installing the fieldbus interface card check whether the plug connection
provided, such as GND or bus terminal resistor have to be changed.
●

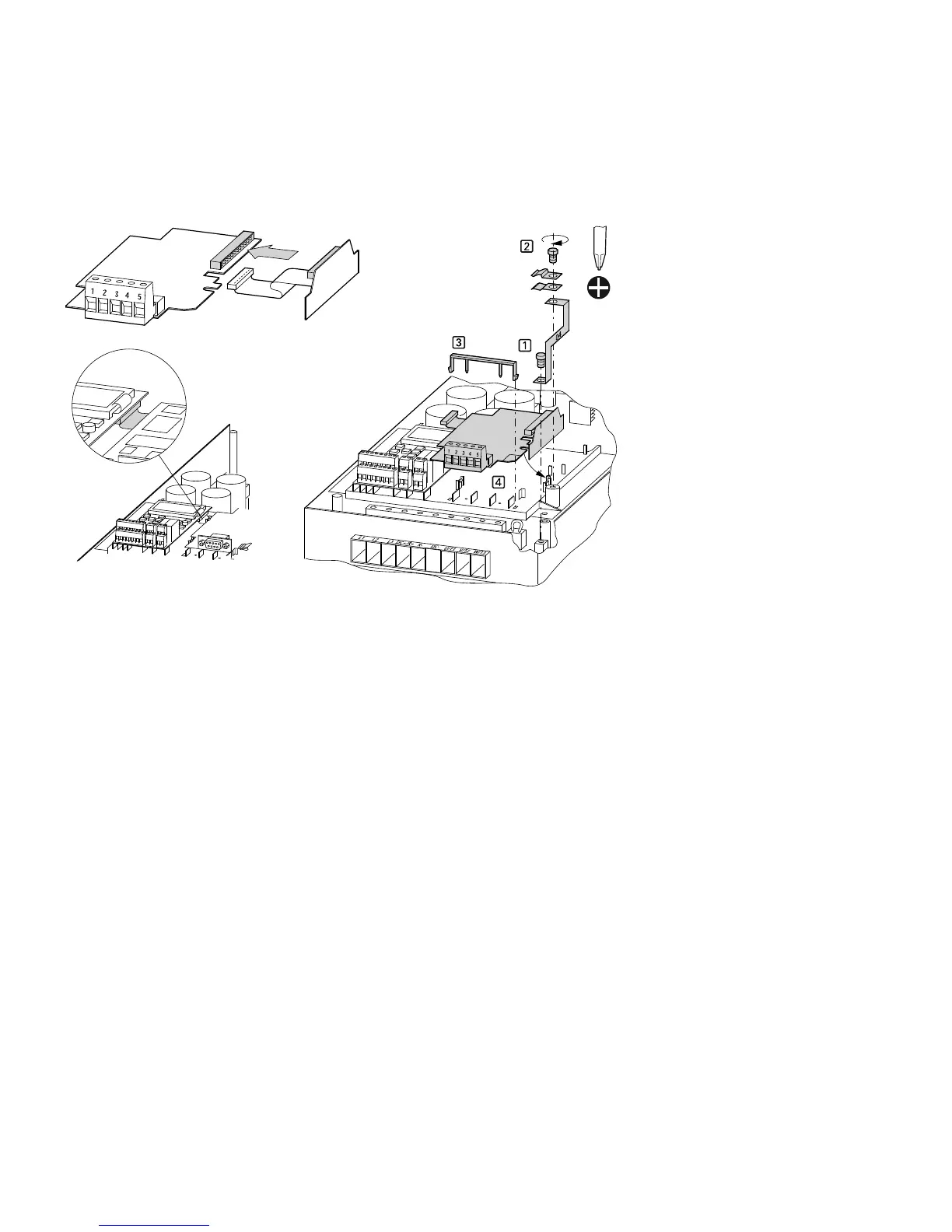

Fit the combination of MMX-NET-XB interface module and fieldbus interface
card and connect them
PZ 2
1.3 Nm
[11.5 lb-in]
