Installation
34 M-Max Series Adjustable Frequency Drive MN04020003E—October 2013 www.eaton.com
Connection in Power Section

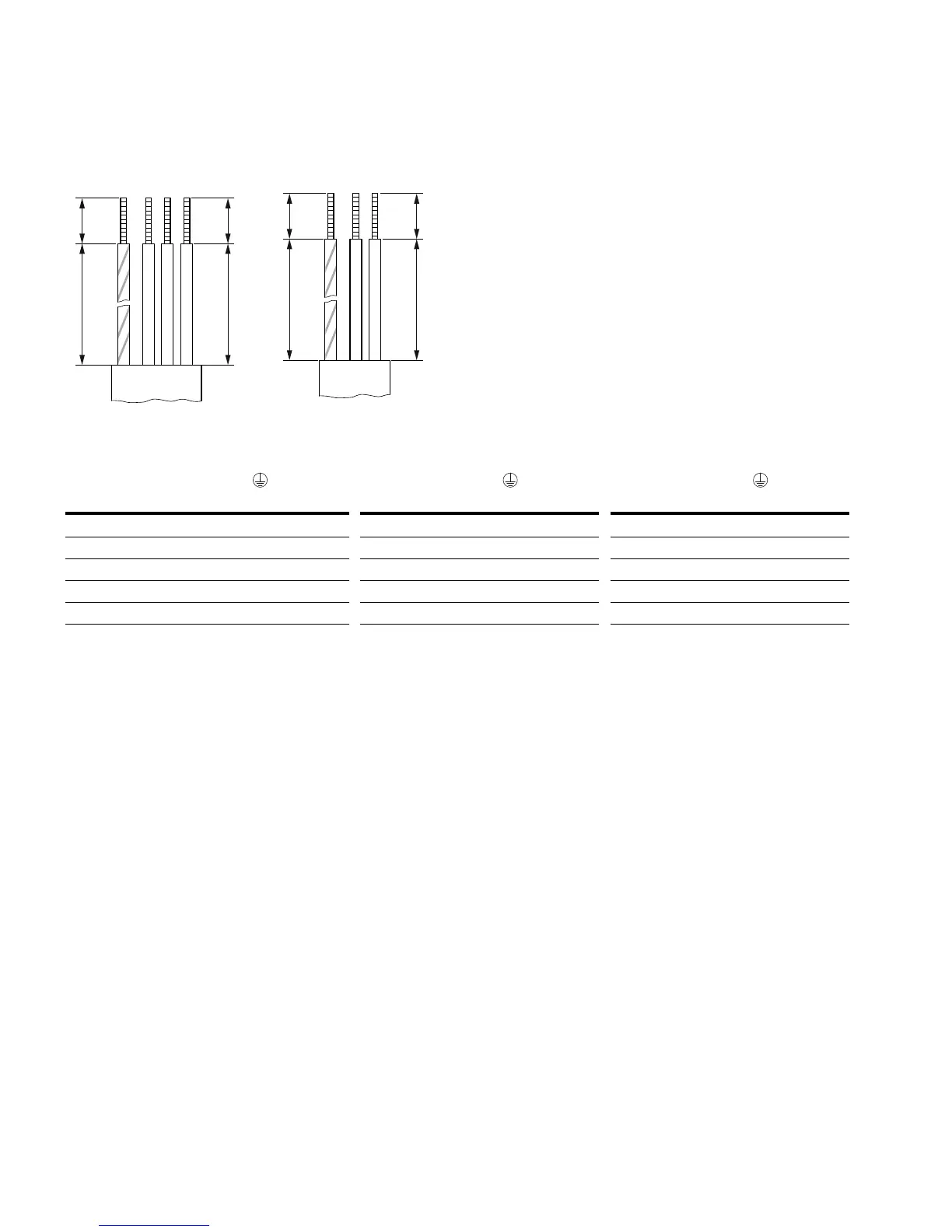

Stripping Lengths in the Power Section in inches (mm)
B1
PE L1 L2 L3
PE U V W
A1
D1
C1
PE R+ R–
D2
C2
B2
A2
DC+
DC–
Supply Voltage (Input) Motor (Output) DC-Link, Brake Resistor
L1, L2, L3 PE U/T1, V/T2, W/T3 PE DC+/R+, R–, DC– PE
C1 D1 A1 B1 C1 D1 A1 B1 C2 D2 A2 B2
FS1 0.30 (8.0) 0.80 (20.0) 0.30 (8.0) 1.40 (35.0) 0.30 (8.0) 0.80 (20.0) 0.30 (8.0) 1.40 (35.0) 0.30 (8.0) 0.80 (20.0) 0.30 (8.0) 1.40 (35.0)
FS2 0.30 (8.0) 0.80 (20.0) 0.30 (8.0) 1.40 (35.0) 0.30 (8.0) 0.80 (20.0) 0.30 (8.0) 1.40 (35.0) 0.30 (8.0) 0.80 (20.0) 0.30 (8.0) 1.40 (35.0)
FS3 0.30 (8.0) 0.80 (20.0) 0.30 (8.0) 1.40 (35.0) 0.30 (8.0) 0.80 (20.0) 0.30 (8.0) 1.40 (35.0) 0.30 (8.0) 0.80 (20.0) 0.30 (8.0) 1.40 (35.0)
FS4 0.30 (8.0) 1.60 (40.0) 0.30 (8.0) 1.20 (30.0) 0.30 (8.0) 2.00 (50.0) 0.30 (8.0) 1.20 (30.0) 0.30 (8.0) 1.60 (40.0) 0.30 (8.0) 1.60 (40.0)
FS5 0.30 (8.0) 1.60 (40.0) 0.30 (8.0) 1.20 (30.0) 0.30 (8.0) 2.00 (50.0) 0.30 (8.0) 1.20 (30.0) 0.30 (8.0) 2.00 (50.0) 0.30 (8.0) 2.00 (50.0)
