Quick Start Parameter Guide
The following table shows the preset application parameters of parameter P1.2. in the factory setting.
With P1.1 = 1 you are guided through the drive parameters in steps (Quickstart Wizard) after the power
supply is switched on and after the factory settings are activated.
Note: To cancel Quickstart Wizard, or to set parameter not contained in the Quickstart Wizard, set parameter P1.1 = 0.
For detailed explanation of parameters and their options, see the detailed parameters list starting on Page 67.

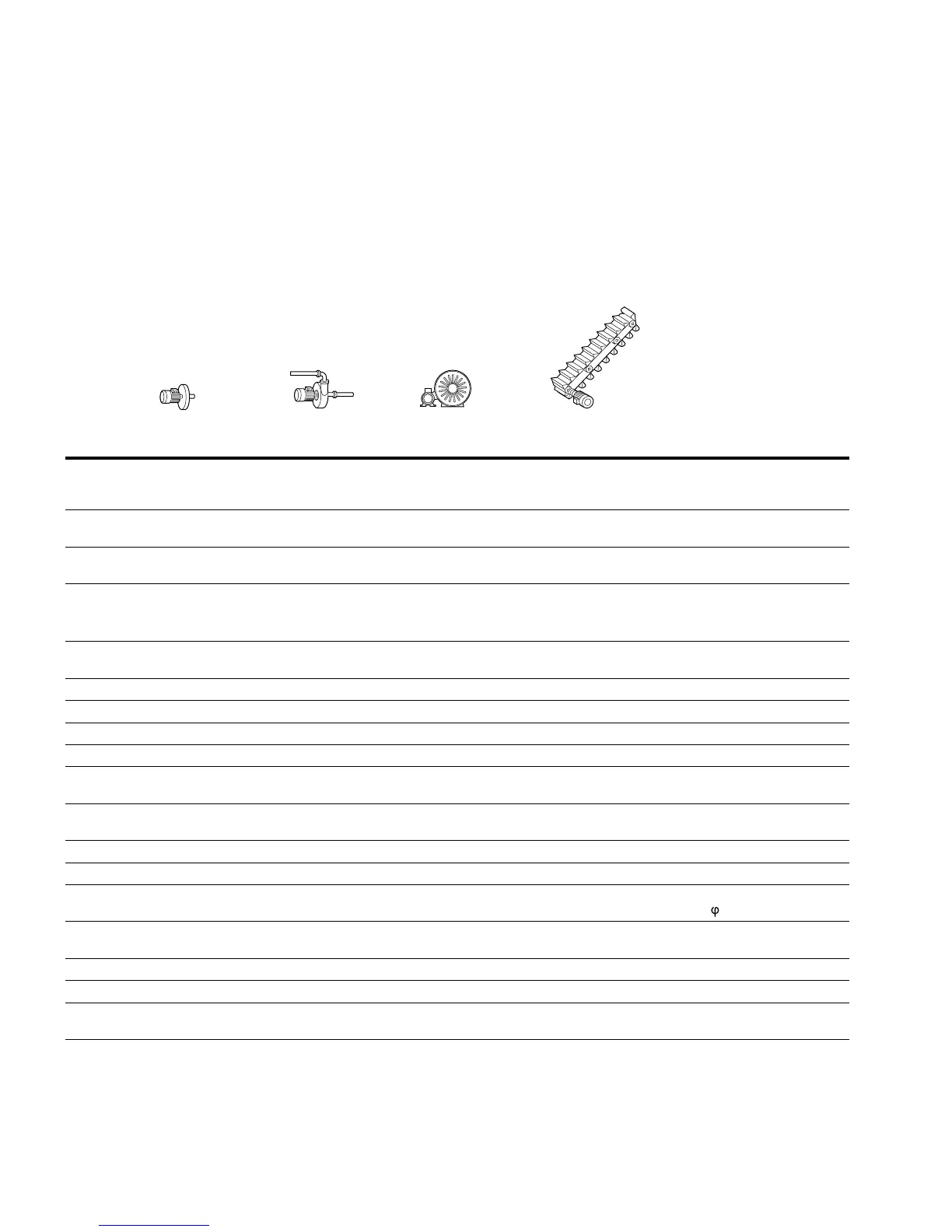

Predefined Application Parameters from Parameter P1.2
Notes

230V = MMX11_, MMX12_, MMX32_.
400V = MMX34_, 575V = MMX35_.
This parameter will default based on style of unit.
Parameter
(PNU)
Basic
(Standard Drive) Pump Drive Fan Drive High Load Designation
P1.1 1 = Only quick
configuration
parameters
1 = Only quick
configuration
parameters
1 = Only quick
configuration
parameters
1 = Only quick
configuration
parameters
Quick start parameters
P1.2 0 = Basic 1 = Pump drive 2 = Fan drive 3 = Hoisting device
(high load)
Application
P1.3 1 = N/A 1 = N/A 1 = N/A 1 = N/A Country specific default
settings
P6.1 1 = Control signal
terminals (I/O)
(I/O)
1 = Control signal
terminals (I/O)
(I/O)
1 = Control signal
terminals (I/O)
(I/O)
1 = Control signal
terminals (I/O)
(I/O)
Primary remote control
source
P6.2 3 = AI1 (analog
setpoint 1)
3 = AI1 (analog
setpoint 1)
3 = AI1 (analog
setpoint 1)
3 = AI1 (analog
setpoint 1)
Primary remote speed
reference
P6.3 00.00 Hz 20.00 Hz 20.00 Hz 00.00 Hz Minimum frequency
P6.4 60.00 Hz 60.00 Hz 60.00 Hz 60.00 Hz Maximum frequency
P6.5 3.0s 5.0s 20.0s 1.0s Acceleration time (acc1)
P6.6 3.0s 5.0s 20.0s 1.0s Deceleration time (dec1)
P6.7 0 = Ramp
(acceleration)
0 = Ramp
(acceleration)
0 = Ramp
(acceleration)
0 = Ramp
(acceleration)
Start function
P6.8 0 = Free coasting 1 = Deceleration
time (ramp)
0 = Free coasting 0 = Free coasting Stop function
P7.1 I
e
I
e
I
e
I
e
Motor, rated current
P7.3 1720 RPM 1720 RPM 1720 RPM 1720 RPM Motor, rated speed (RPM)
P7.4 0.85 0.85 0.85 0.85 Motor, power factor
(cos )
P7.5 230/460/575V

230/460/575V

230/460/575V

230/460/575V

Motor, rated operating
voltage
P7.6 60 Hz 60 Hz 60 Hz 60 Hz Motor, rated frequency
P11.7 0 = Deactivated 0 = Deactivated 0 = Deactivated 1 = Enabled Torque increase
M1.1 0.00 Hz 0.00 Hz 0.00 Hz 0.00 Hz Output frequency
(display only)
