User Manual The1.1 version of 2018 Guangzhou EC-PACK CO.LTD

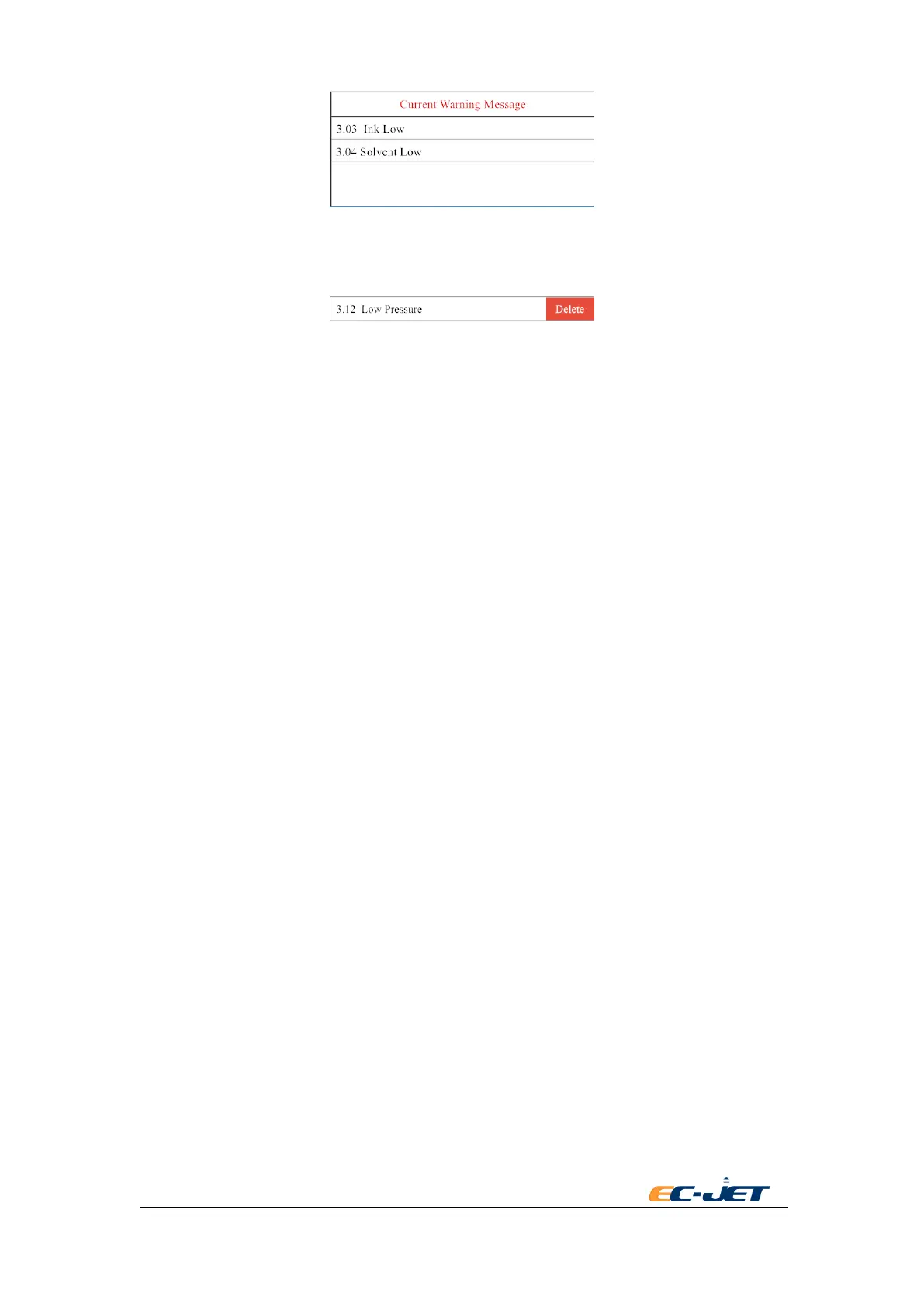

The warning message will be deleted automatically when the warning status eliminates.

Notes:Some warning messages need to delete manually. Press this message and then press pop-up

delete key.
