EC-PACK EC-JET 2000

To Next Page

To Previous Page

User Manual The1.1 version of 2018 Guangzhou EC-PACK CO.LTD

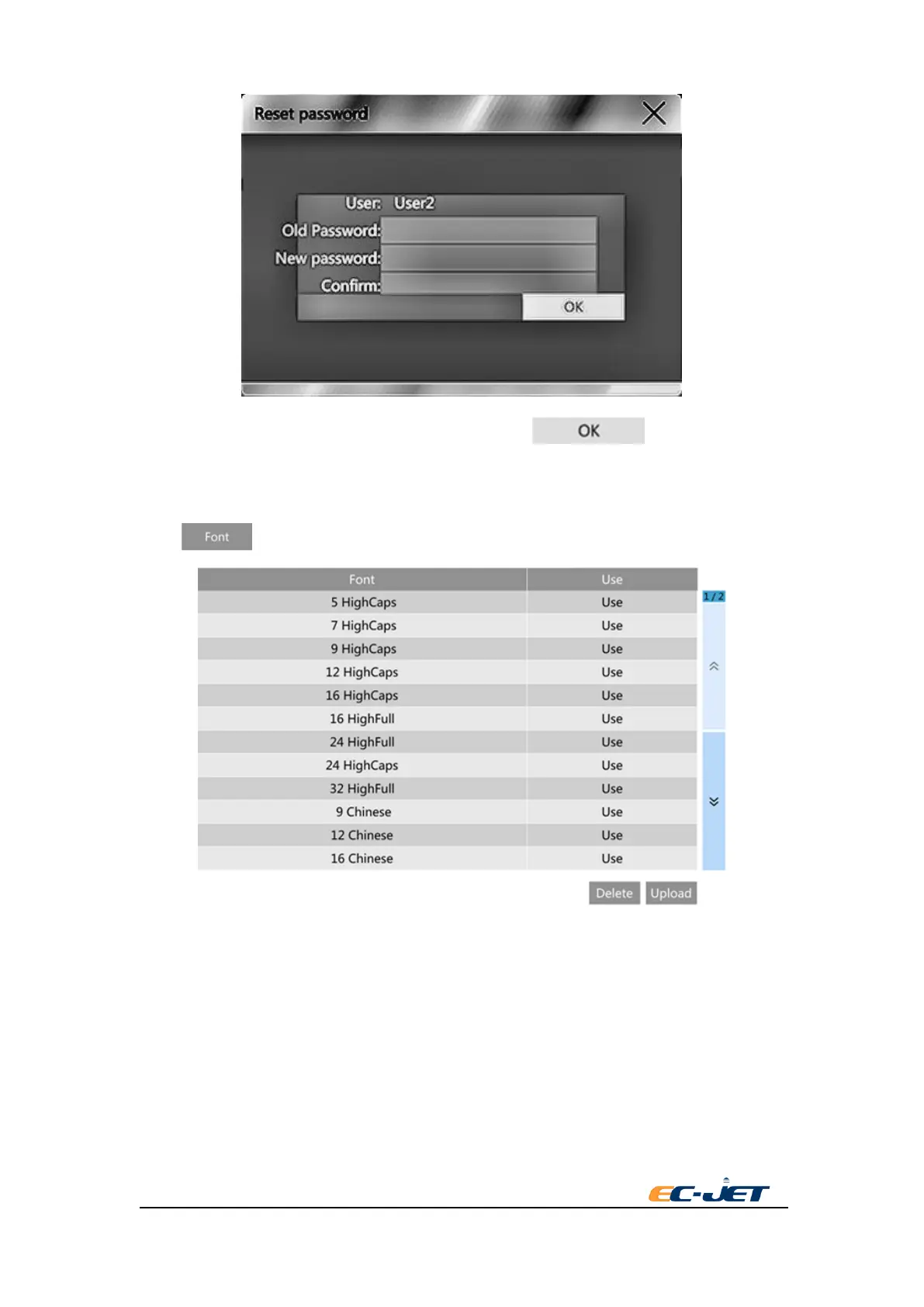

Input the original password and new password twice. Press key to revise.

6.3. Font

Press key to enter font setting.

This interface will list all the font be used on the printer. Press the button of corresponding font

name. Some fonts can be forbidden.
