will cause the loss of the drops from the top of the print pattern.
As printing continues, the ink will build up on the gutter edge and the print loss will increase,
sometimes leading to deflector plate shorting and EHT failures.

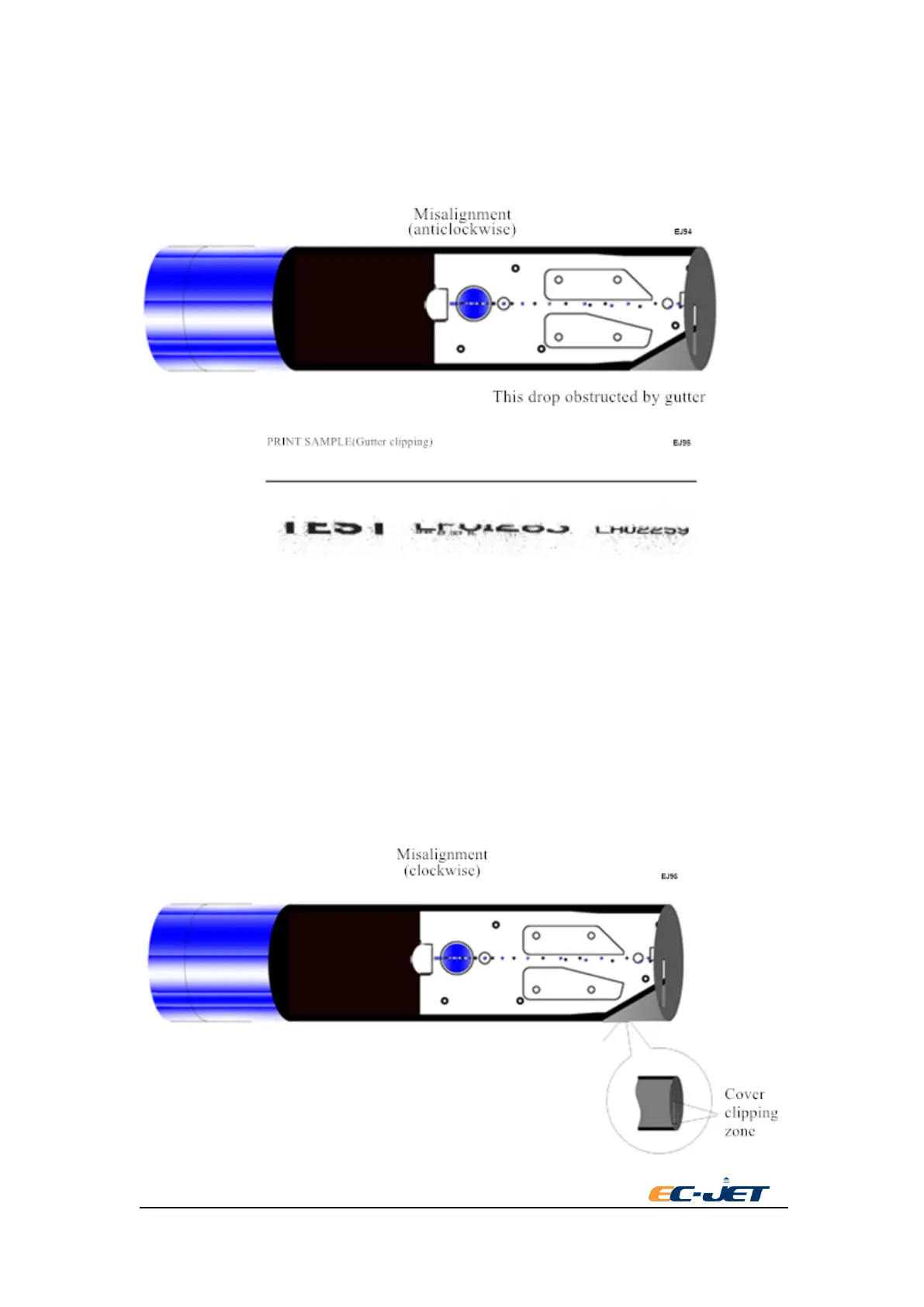

The following diagram illustrates the problem:
Above printing indicate if the gutter is block ,the droplet on the top of printing will be block and
can not be print out .
Cause and Cure:
Check the EHT settings (see - “Changing the System Setup”). Check the jet alignment.
FC06 Printhead Cover Block
Diagnosis
This problem is caused by the most deflected drops catching the edge of the exit slot in the
printhead cover, and thus failing to be printed.
The following diagram illustrates the condition:
