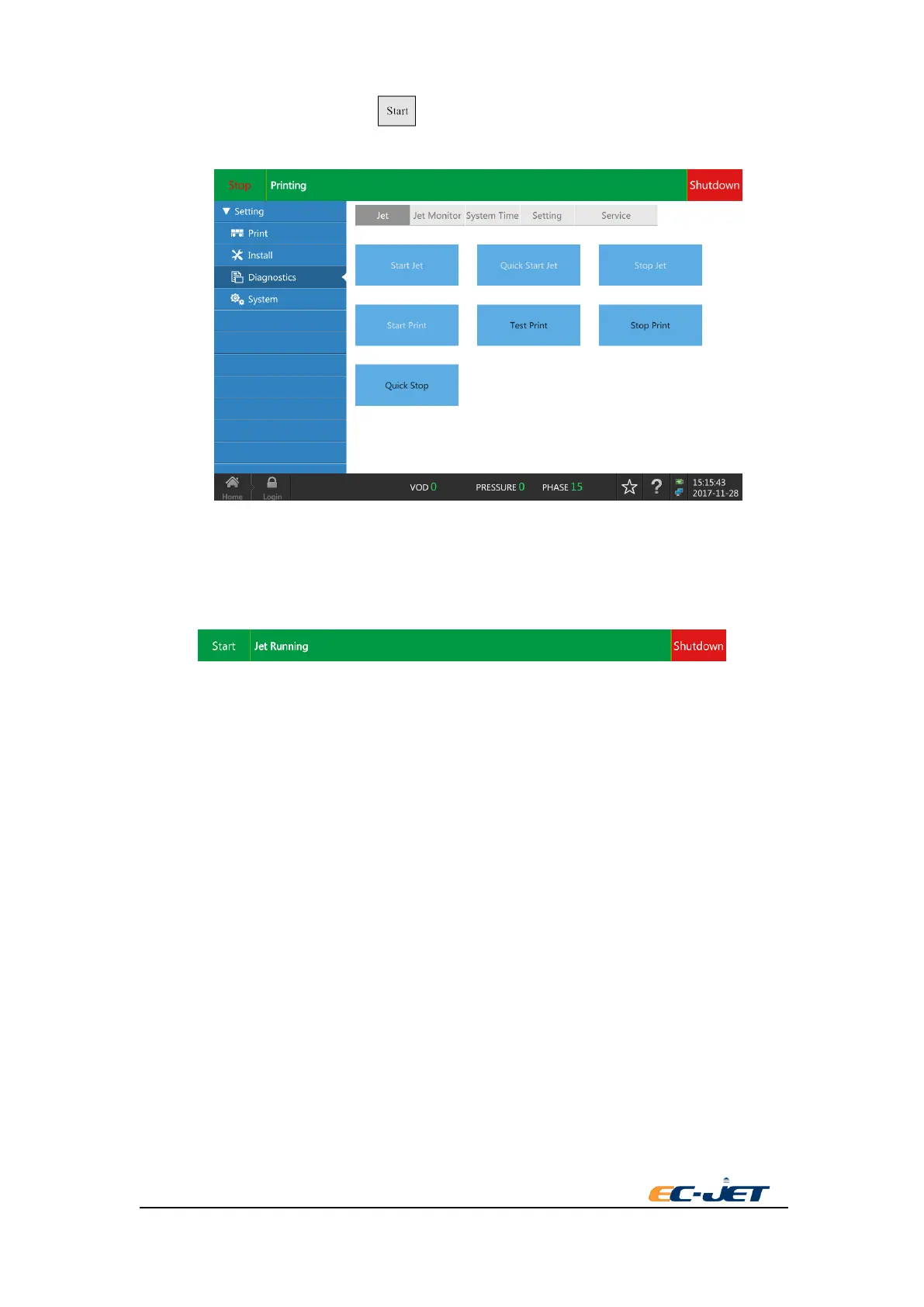

has a lower level function than the button which sets, for example, “Phase” option setting
will automatically set to“On” when pressed “Start” but the current statu will not.
7.6. Stop Print
Stops printing but does not shutdown the jet.
The following message will be displayed while stopping printing:
7.7. Test Print
Select this option to issue a trigger the print command. Triggered print command of test print is
same as the photocell trigger command.
This command is valid only when the photocell mode from setup menu is set to Triggered and the
printer is on the status of printing. This command is invalid if the photocell set to OFF.
It will not print if using the shaft encoder and the production line doesn’t start. Only print when
the production line starts.
