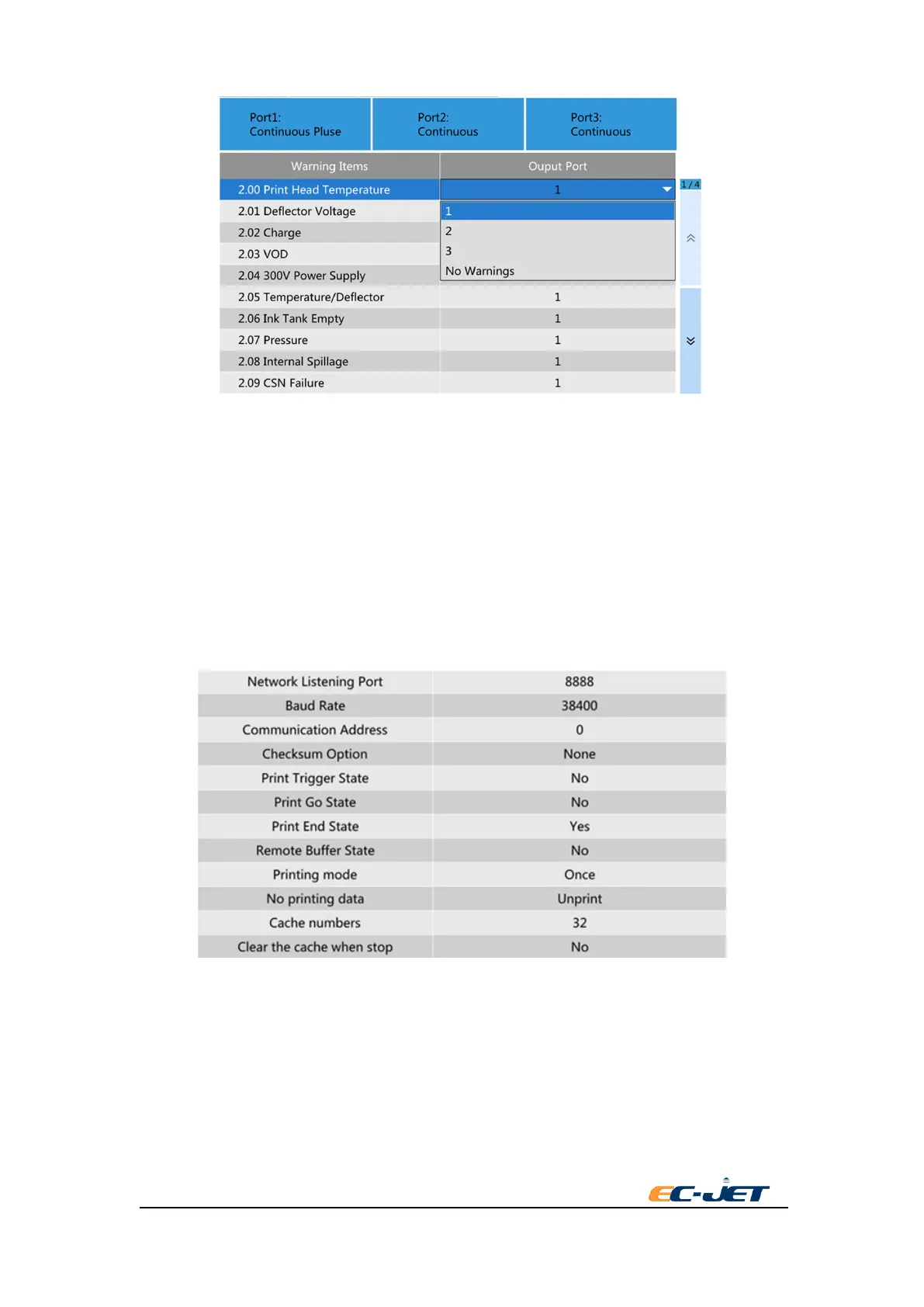

Alarm output interface divides into two parts, above and under section. Three buttons above
represent the output of the three ways. Pressing the button can switch the different alarm output
way.
The following lists represent different alarm items. Press the menu from output port drop-down
menu to select this alarm output port or select no alarm output.
5.3. Remote Communication
EC2000 printer support RS-232 and LAN TCP this two ways to remote communication. See
“EC-JET Communication Protocol V3.1” for specific communication format. Setup interface of
remote communication is below:
5.3.1. Network Listening Port
Network listening port is used to set the connection of TCP. TCP communication needs to set the
IP address of printer and the IP address of communication host to a same LAN, and need to use
the specified listening port to access.
5.3.2. Baud Rate
Baud Rate is used to set the communication rate during using RS-232 communication.
5.3.3. Communication Address
