EDAN INSTRUMENTS VE-1010 User Manual

VE-1010 Veterinary PC ECG User Manual Introduction
- 9 -

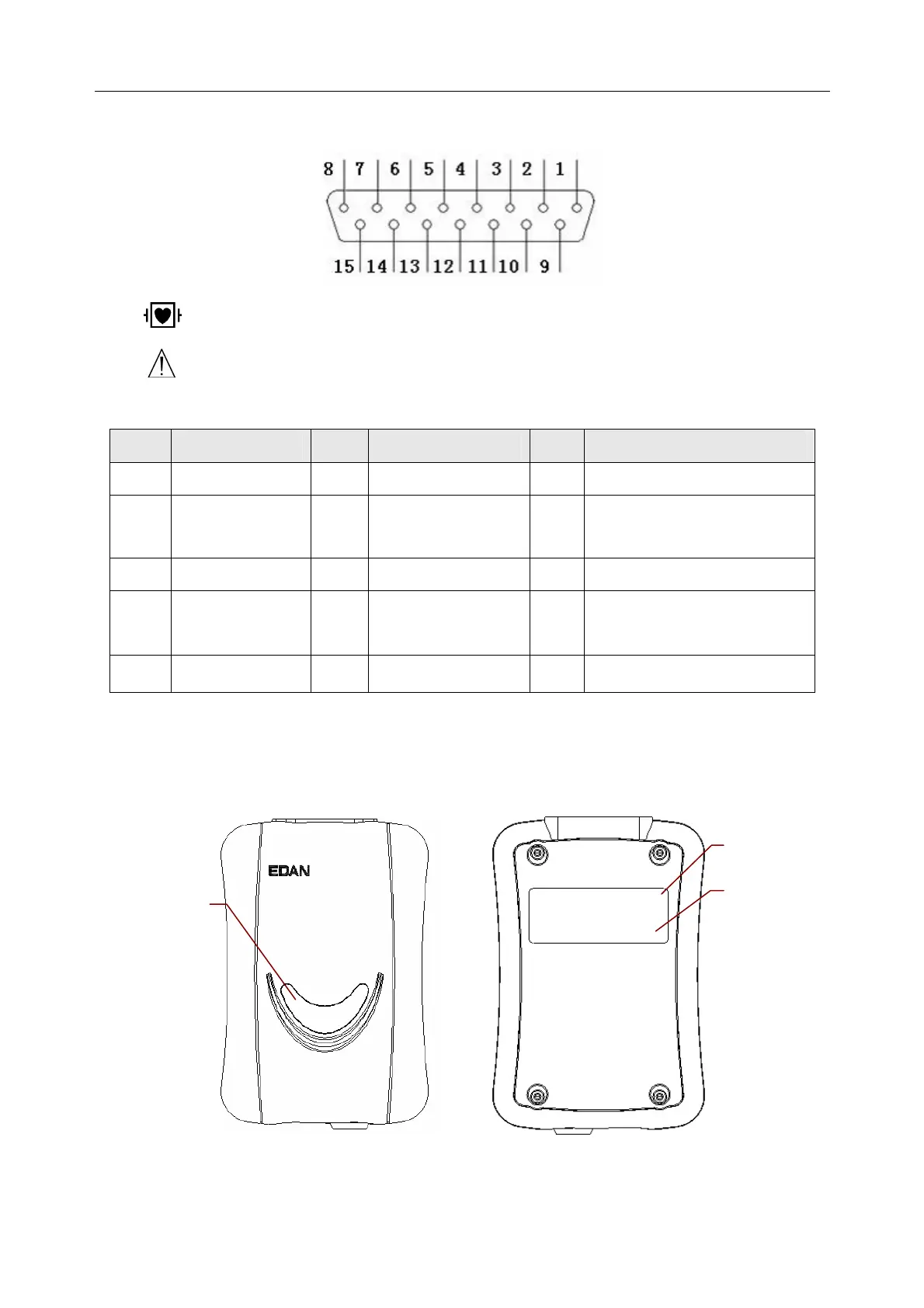

Patient Cable Socket
: Applied part of type CF with defibrillator proof
: Caution
Definitions of corresponding pins:
Pin Signal Pin Signal Pin Signal
1
C2 / V2
6
SH
11
F / LL
2
C3 / V3
7
NC
12
C1 / V1
or NC
3
C4 / V4
8
NC
13
C1 / V1
4
C5 / V5
9
R / RA
14
RF (N) /RL
or NC
5
C6 / V6
10
L / LA
15
RF (N) / RL
Note: The left side of “/” is European standard, and the right side is American standard.
Top Panel and Bottom Panel
Decorative
Chip
Label
Screw
