F15 Series Fetal & Maternal Monitor Service Manual Installation
- 7 -
2.4.2 Mounting the Monitor on a Wall
CAUTION
1 The monitor should only be mounted on a solid concrete or brick wall.
2 Shut the display completely flat before mounting the monitor to the wall.
3 Make sure the wall mounting board is firmly fixed to the wall. If there is any doubt, do
not hang the monitor to this board.
4 Make sure the monitor is safely hung on the posts of the board before releasing your
hands from the monitor.
To mount the monitor on a wall,
1 Order a wall mounting board (01.52.107983), a retaining board (01.52.01983) and a
connecting board (01.52.107984) from the manufacturer.
2 Turn the monitor over and fix the retaining board to the bottom panel using six pan head
screws and then fix the connecting board to the retaining board with two pan head
screws.

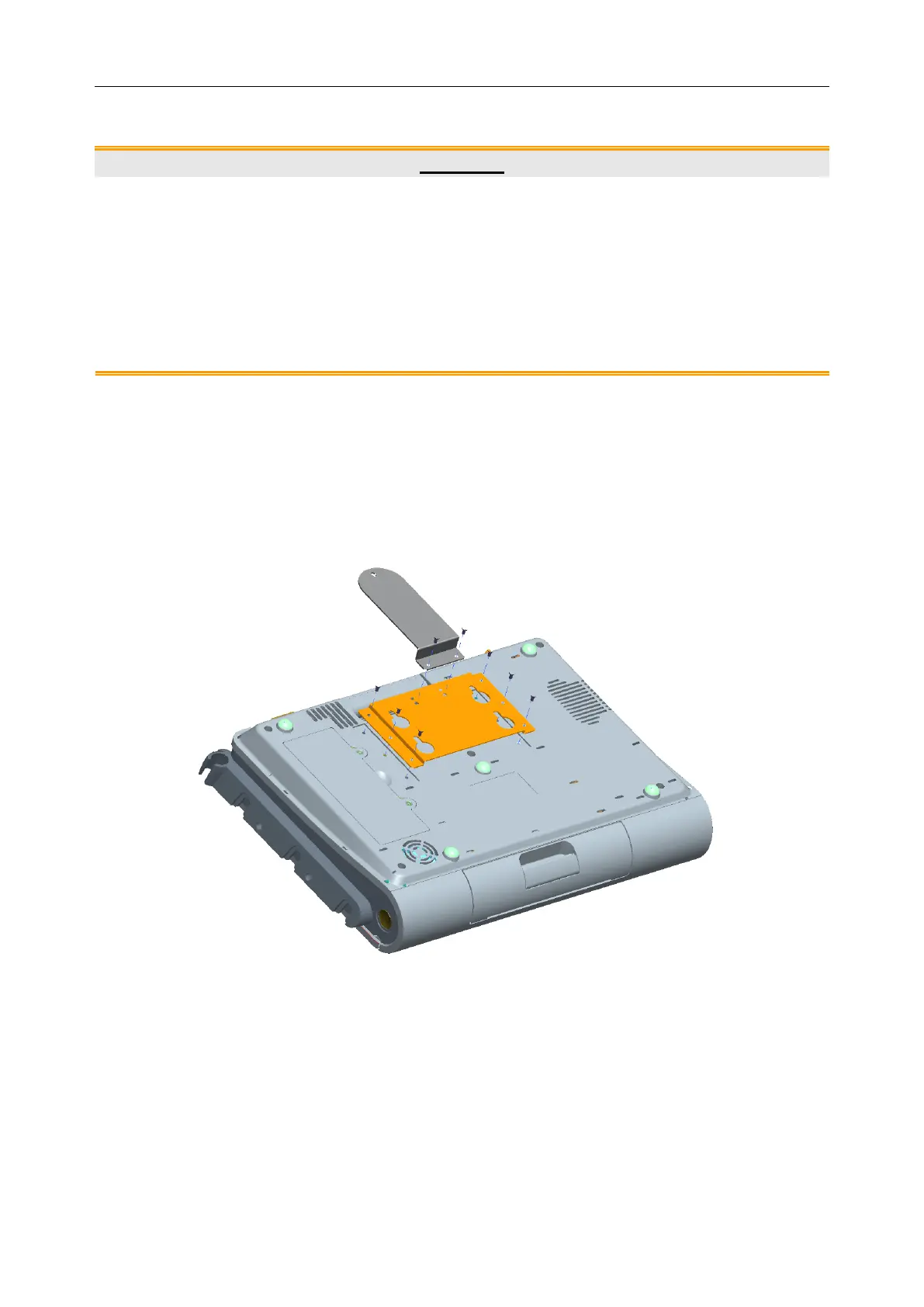

Figure 2-1 Fixing Retaining Board and Connecting Board
3 Fix the wall mounting board to the wall with six self-tapping screws.
To Next Page
