F15 Series Fetal & Maternal Monitor Service Manual Disassembling the Monitor
- 55 -
9.4.7 Replacing the Loudspeaker
To remove the loudspeaker,
1) Remove the iM X12 parameter board per section 9.4.6.
2) Remove the loudspeaker cable interface.
3) Remove the two screws on the loudspeaker supporting bracket.
4) Remove the studs/screw securing the loudspeaker.
To replace the loudspeaker,

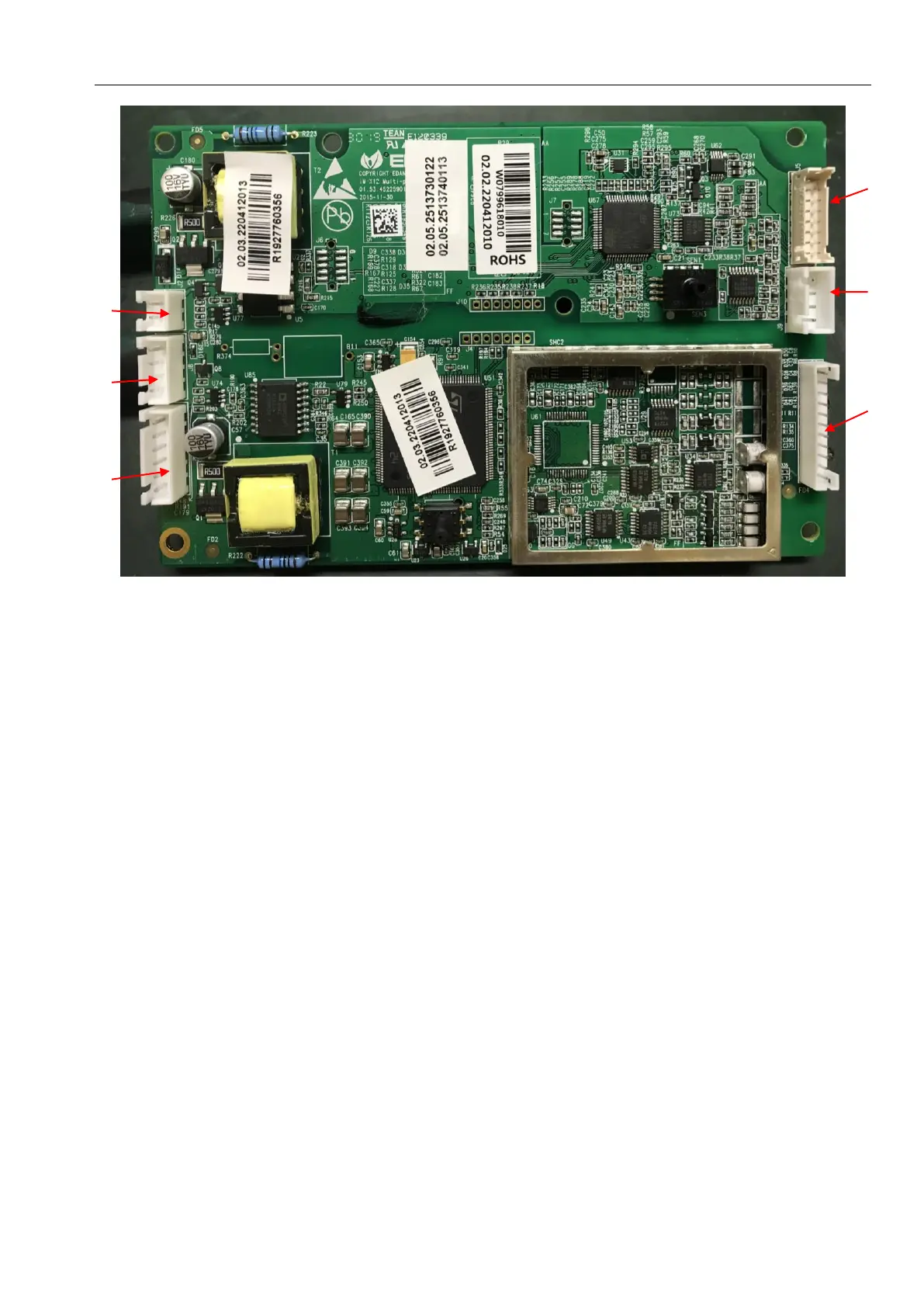

Replace the loudspeaker in a reverse procedure. Refer to the following illustration when connecting
wires. Ensure they are all correctly connected.
1
2
3
4
5
6
No. Connect to
1 pump connection wire
2 air valve connection wire
3 main control board
4 SpO2 connection wire
5 TEMP connection wire
6 NA
