F15 Series Fetal & Maternal Monitor Service Manual Installation
- 8 -

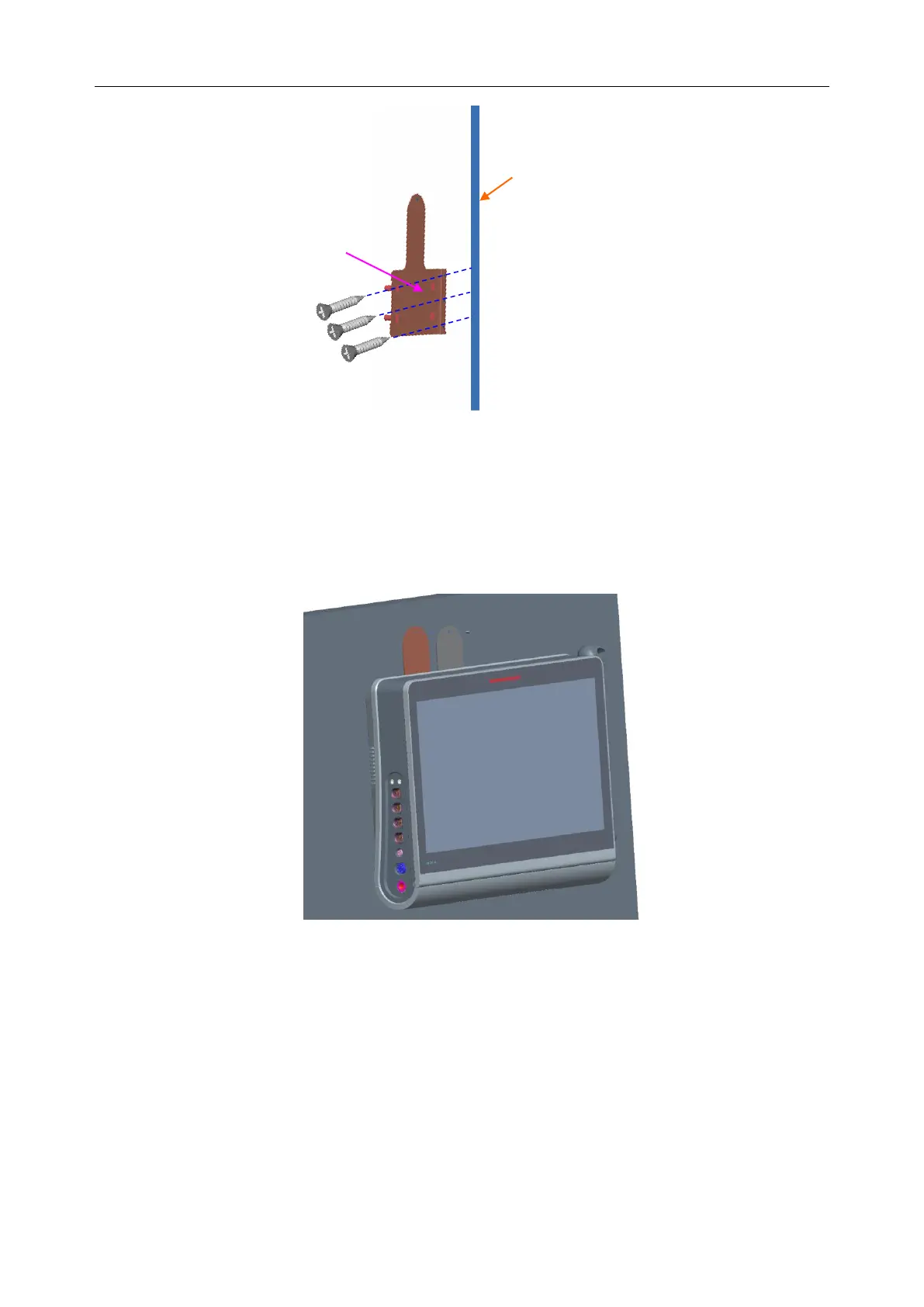

Figure 2-2 Fixing Wall Mounting Board
4 Lift the monitor with the bottom panel facing the wall. Let the four posts on the board
stretch into wall-mounting holes and then release your hands from the monitor slowly.
5 Secure the connecting board to the wall mounting board with a pan head screw.
2.4.3 Installing the Monitor on Trolley
An Assembling Instruction will be delivered with the trolley. Refer to that instruction for details
of installing the monitor on a trolley.
