EDAN F15 Series Service Manual

F15 Series Fetal & Maternal Monitor Service Manual Installation
- 9 -

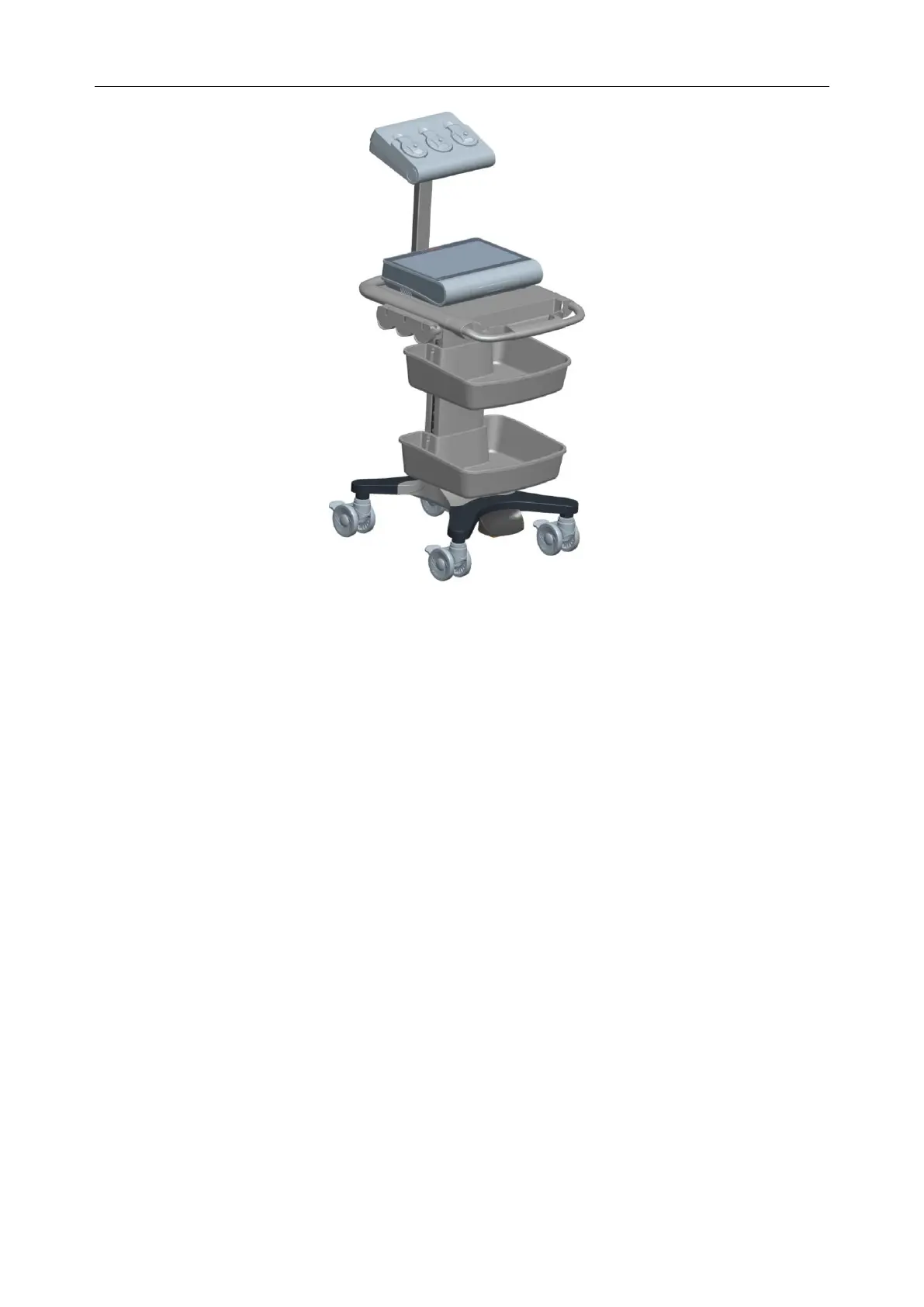

Figure 2-3 the Monitor on a Trolley (Sketch Map)
2.5 Connecting to AC Power
Apply the power cable provided with the monitor. Plug one end of the power cable to the power
socket of the monitor. Connect the other end to a grounded 3-slot power output special for
hospital usage.
