F15 Series Fetal & Maternal Monitor Service Manual Disassembling the Monitor
- 59 -

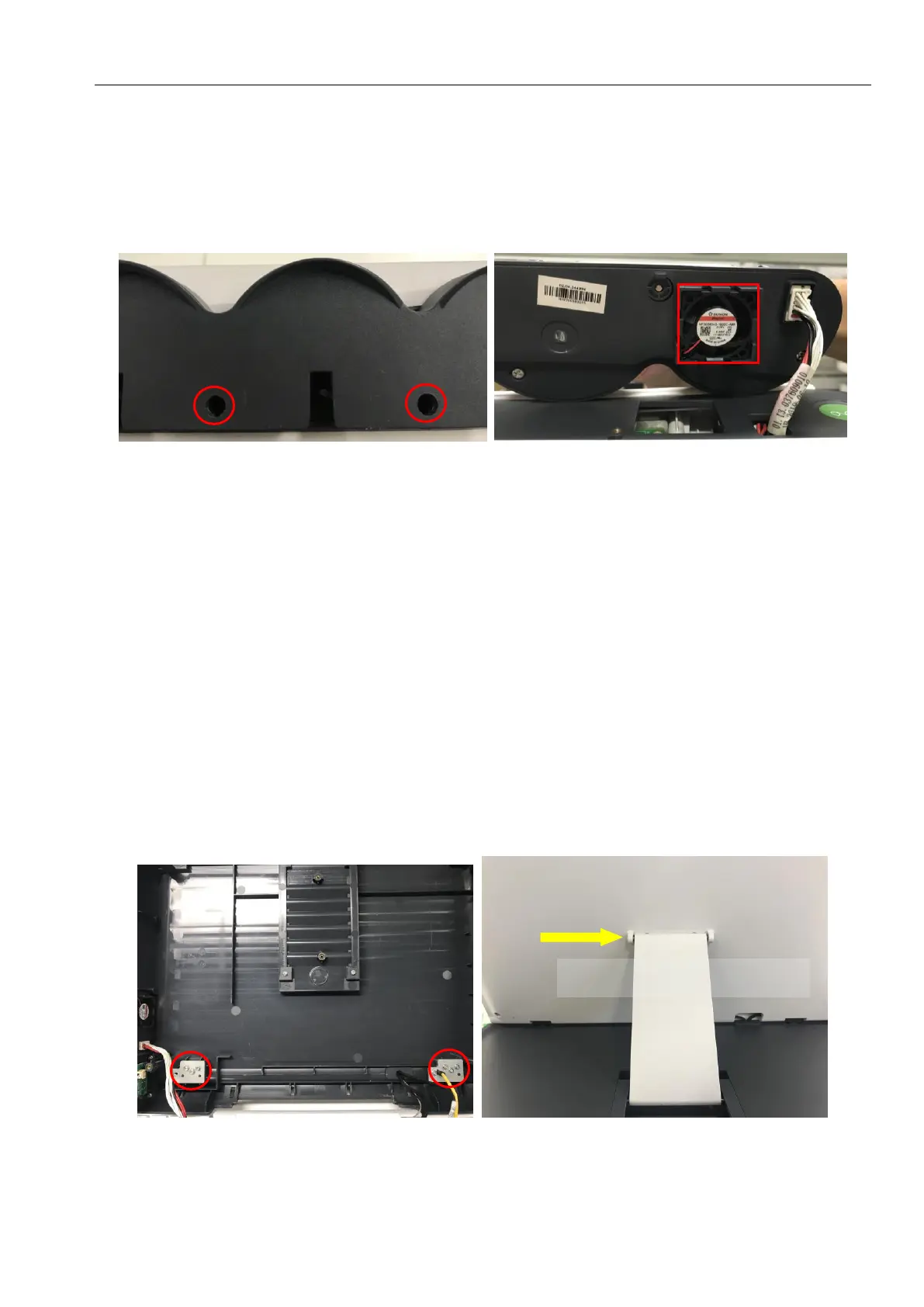

2) Remove all the cables on the wireless transducer holder bracket.
3) Remove the rubber gasket on the fan.
To replace the wireless transducer holder bracket,
Replace the wireless transducer holder bracket in a reverse procedure. Refer to the following
illustration when connecting wires. Ensure they are all correctly connected.
9.5 Disassembling the Upper Assembly
9.5.1 Replacing the LCD Assembly
To remove the LCD assembly,
1) Separate the upper assembly and the lower assembly.
2) Carefully lift up the upper assembly and place it right side up. Remove the six screw securing the
screen retaining plate.
3) Use a slender tool and hold it against the spring in the hole of screen supporting bracket, and then
remove the screen supporting bracket.
4) Remove the LCD assembly.
To replace the LCD assembly,
Replace the LCD assembly in a reverse procedure. Refer to the following illustration when connecting
wires. Ensure they are all correctly connected.
Screen supporting bracket
