EDAN F15 Series Service Manual

F15 Series Fetal & Maternal Monitor Service Manual Disassembling the Monitor
- 57 -
Replace the bottom interface board in a reverse procedure. Refer to the following illustration when
connecting wires. Ensure they are all correctly connected.
9.4.10 Replacing the Printhead
To remove the printhead,
1) Separate the upper assembly and the lower assembly.
2) Remove all the cables on the printhead assembly.
3) Remove the three screws on the printhead assembly.
4) Remove the four springs on the printhead assembly.
5) Take out the printhead.
To replace the printhead,

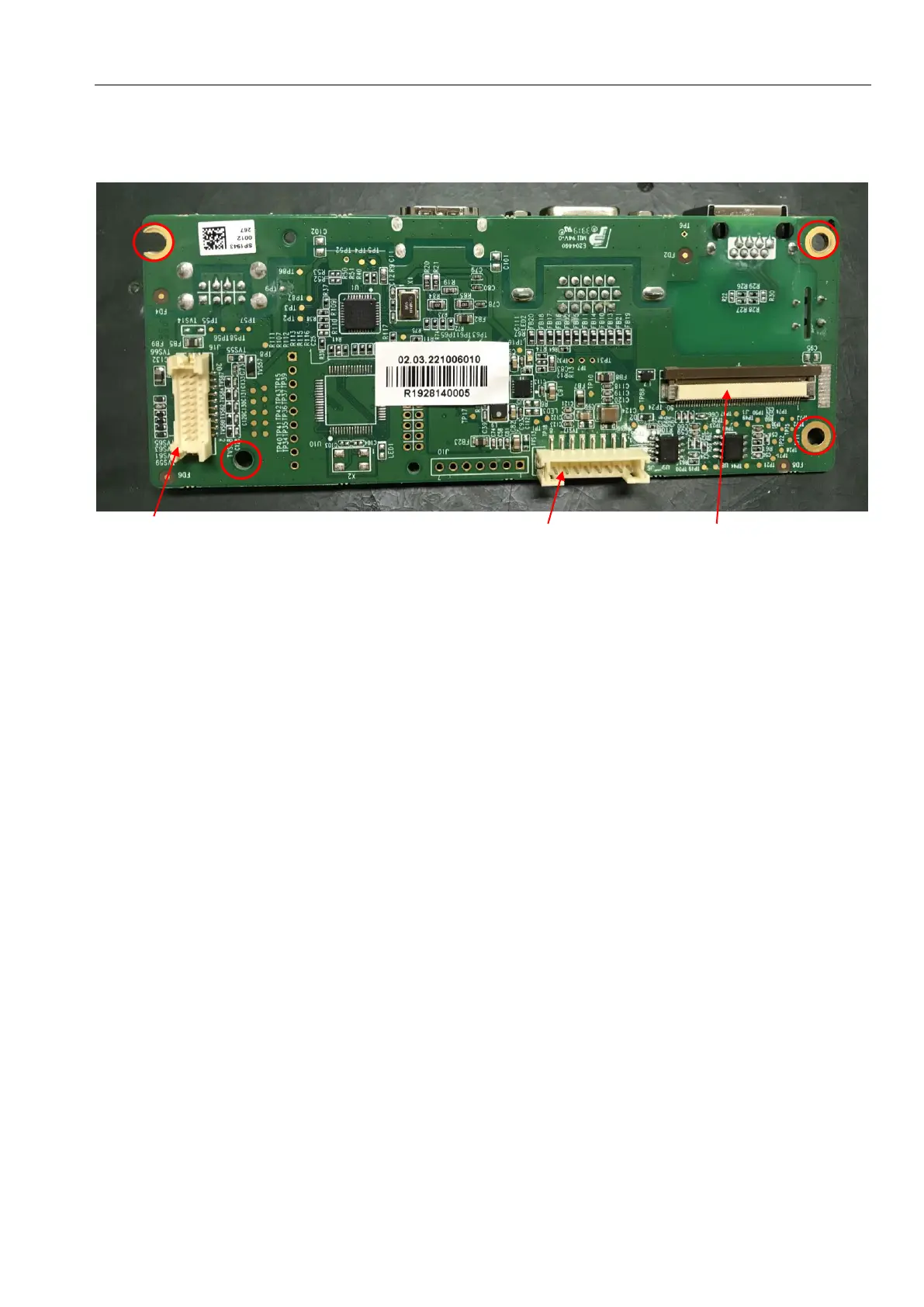

Replace the printhead in a reverse procedure. Refer to the following illustration when connecting wires.
Ensure they are all correctly connected.
1 2 3
No. Connect to
1 bottom interface board
2 main control board
3 main control board
