EDAN F15 Series Service Manual

F15 Series Fetal & Maternal Monitor Service Manual Principle Introduction
- 25 -
100V-240VAC
Input
Rectifier
Filter
PFC
Correcti
ng
LLC
Changin
g
Secondar
y Rectifier
Filter
Direct
Current
19.3V
Controll
er
L6563S
Controll
er
L6599A
Optoc
oupler
Feedback Control

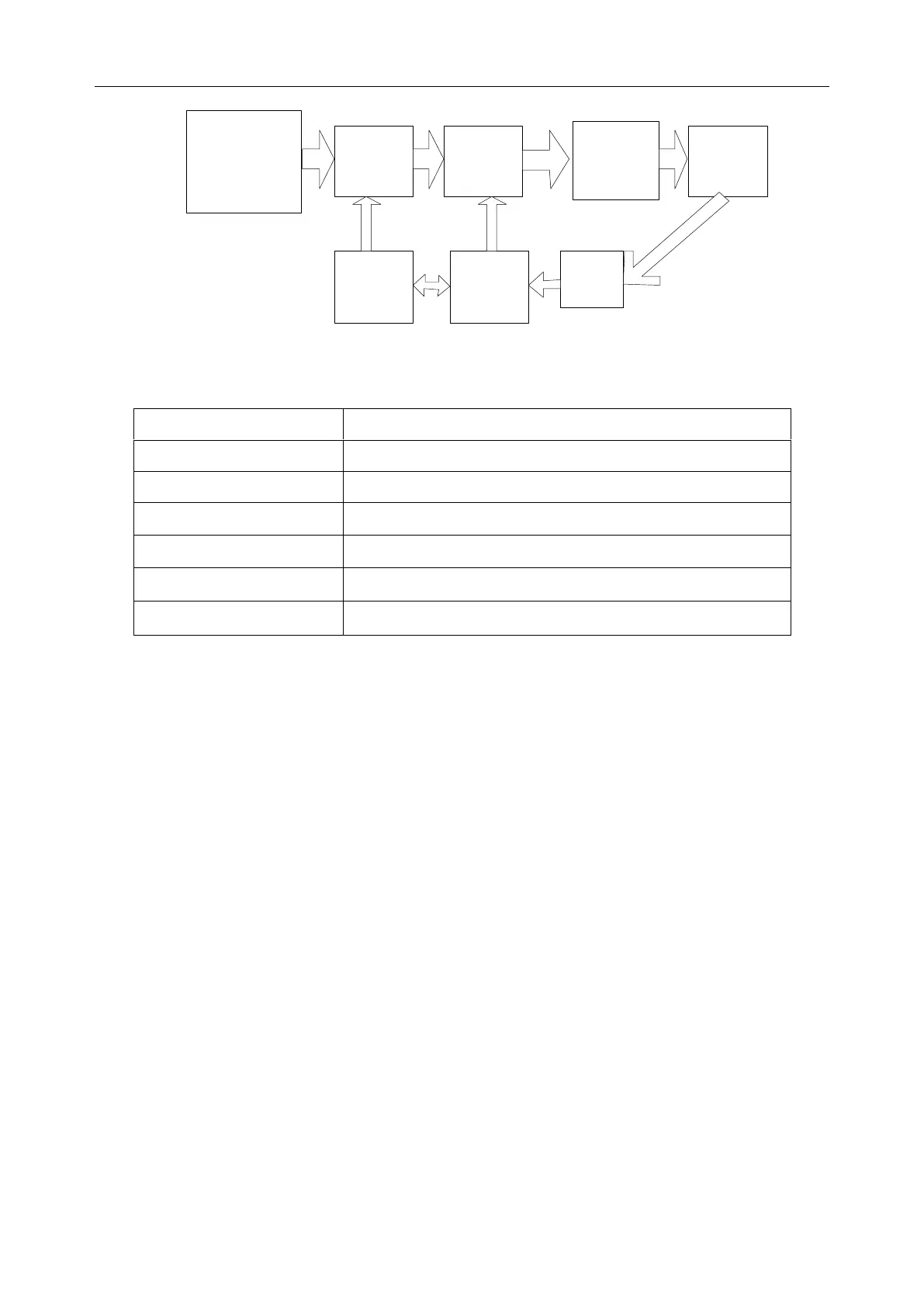

Figure 6-3 AC-DC Power Board Principle Block Diagram
The parameters of this power board are listed below:
Item
Parameter
Input Voltage Range
100-240VAC ±10%
Input Frequency Range
50Hz-60Hz ±3Hz
Input Max.Current
1.2A(110VAC)，0.7A(230VAC)
Input Surge Current
60A MAX（220VAC input）
Input Fuse
3.15A/250V（L、N Line）
PF Value
≥0.98（110VAC，rated load）， ≥0.94（230VAC，rated load）
6.1.4 DC-DC Transfer Board
F15 DC-DC transfer board connects to the 100w AC-DC power board and batteries, and
mainly transfers the 19.3V voltage outputted by the 100w AC-DC power board to direct current
required by F15 main control board and wireless transducer charging board, and controls the
transfer between the batteries and 19.3V voltage, ensuring normal operation of the product and
realizing power supply of the wireless transducer, main control board, multi-parameter module
and LCD display.
