EDAN F15 Series Service Manual

F15 Series Fetal & Maternal Monitor Service Manual Disassembling the Monitor
- 52 -

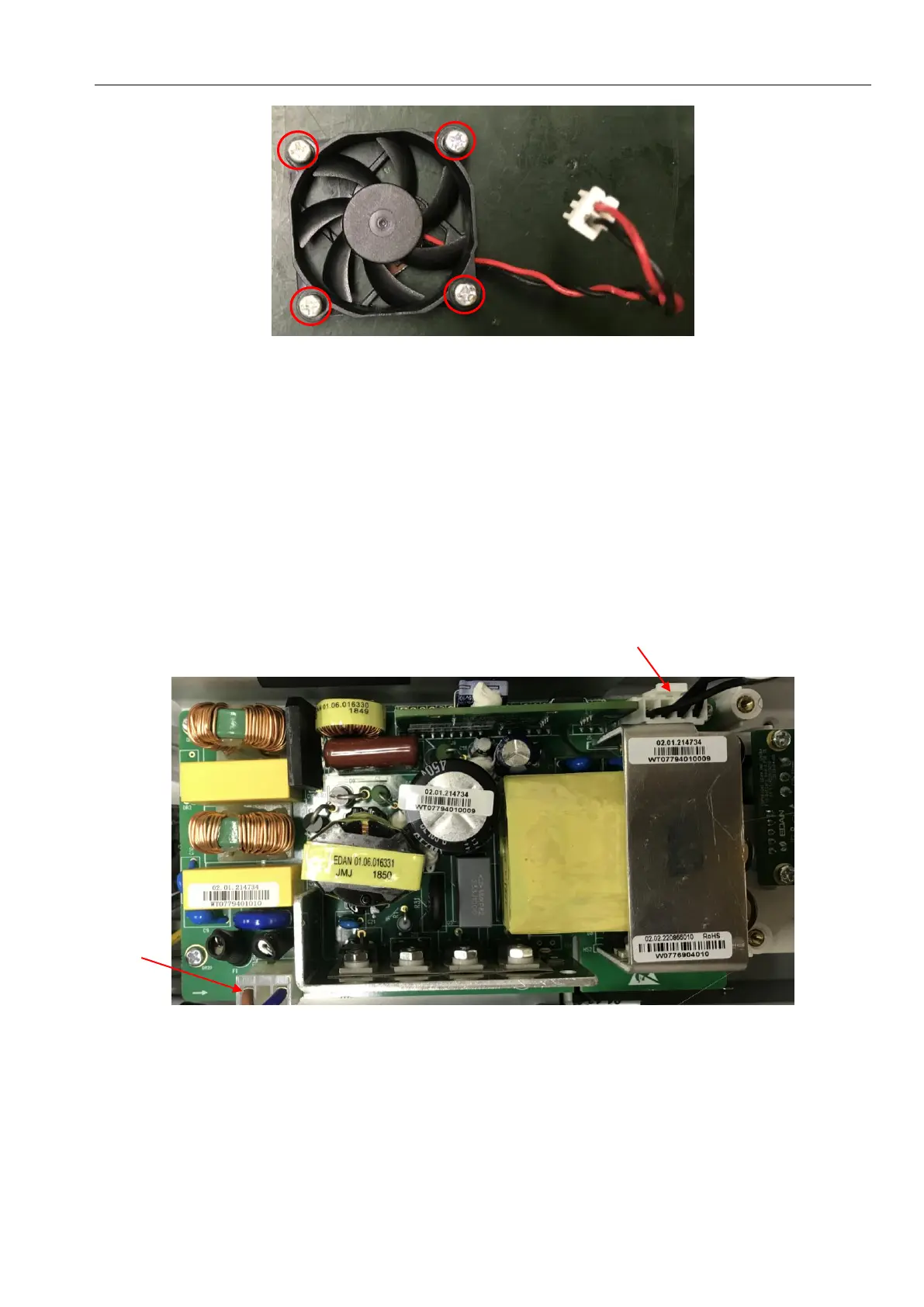

9.4.3 Replacing the Power Module
To remove the power module,
1) Separate the upper assembly and the lower assembly.
2) Disconnect all the wires.
3) Remove the4 screws securing the power module.
To replace the power module,
Replace the power module in a reverse procedure. Refer to the following illustration when connecting
wires. Ensure they are all correctly connected.
No. Connect to
1 Power supply socket
2 DC-DC transfer board
1
2
