Data Center Deployment
The switch is designed for high-availability data center environments with a high
port density. The switch includes redundant, hot-swappable, load-sharing AC PSUs,
a hot-swappable fan tray, and port-to-power and power-to-port airflow direction
options. Meeting the network scaling requirements of enterprise and cloud data
centers, the switch can be deployed as a top-of-rack switch or as part of a
distributed spine network, providing full line-rate switching at Layer 2 or Layer 3
across all ports.

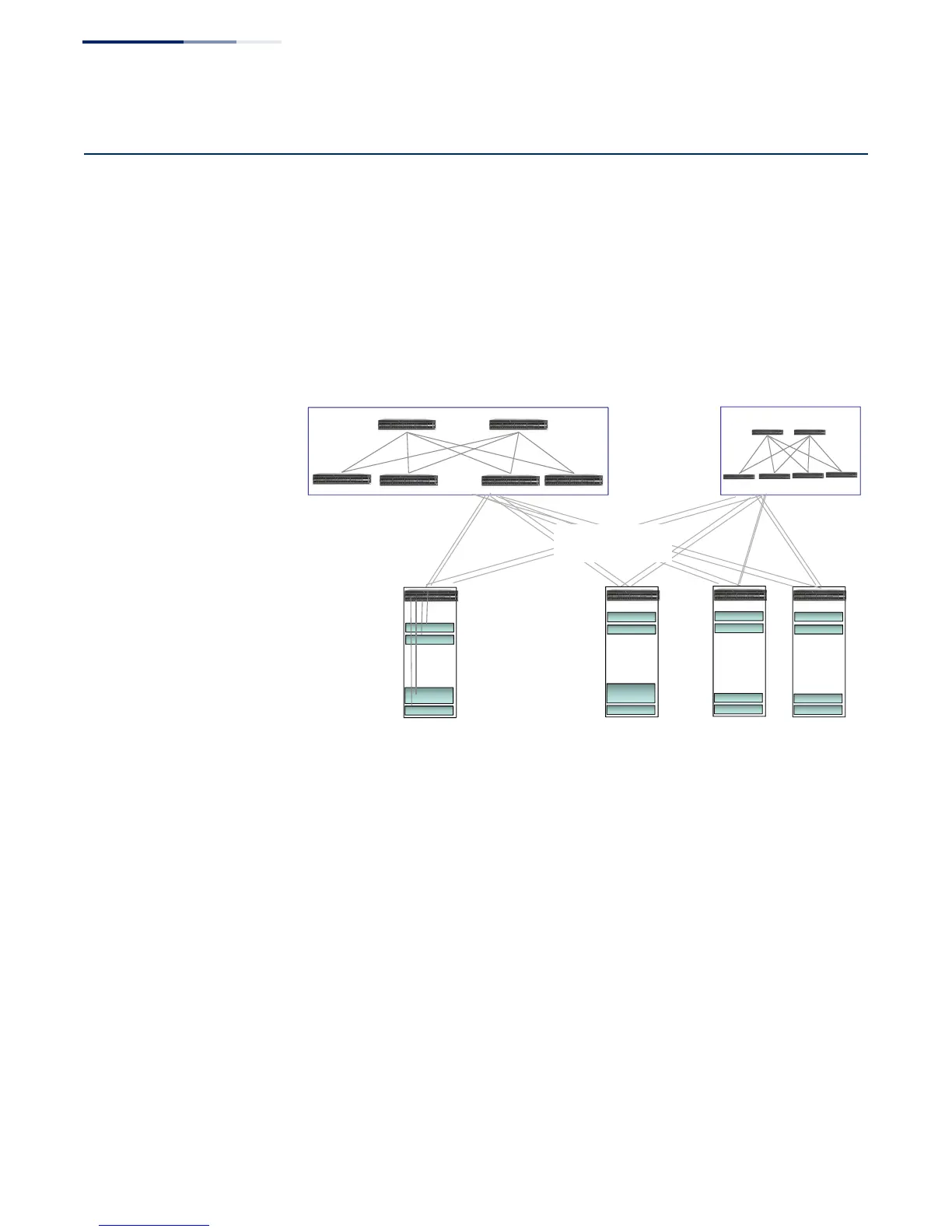

Figure 3: Cloud Data Center Deployment
In many data center configurations, Ethernet connections link servers and data
networks, and Fibre Channel connections link servers to storage networks. This
switch enables the creation of a converged network, which employs lossless
Ethernet connections between FCOE storage, servers, and other data network
switches.
TOR or Leaf Switch
. . .
. . .
…
1GbE or 10GbE
Servers or
Storage Nodes
Server Rack 1
Non-Blocking Distributed Spine Network
Spine Cluster 1
Spine Cluster x
Server Rack n
Core Router Racks
…
…
…
…
…
L2
OSFP/BGP
ECMP
vSwitch
vSwitch

Edge-Core AS5610-52X Specifications

Operating Environment

operating temperature	0° C to 40° C
storage temperature	-40° C to 70° C
operating humidity	5% to 95% (non-condensing)

Power

AC input voltage	100-240 VAC
AC input frequency	50-60 Hz
AC input current	6-3 A
DC output 5V	3 A
DC output 12V	33 A
power consumption	165 Watts maximum
maximum current at 100 VAC	6 A
maximum current at 240 VAC	3 A
power supply power	400 Watts @ 240V/100V per module

Weight and Dimensions

width	438.4 mm
depth	473 mm
height	43.4 mm
weight	8.395 kg
power supply width	54.5 mm
power supply depth	220 mm
power supply height	40.25 mm
