Edge-Core AS5610-52X Installation Guide

Chapter 4 | Power and Grounding
Power Supply Modules
– 30 –

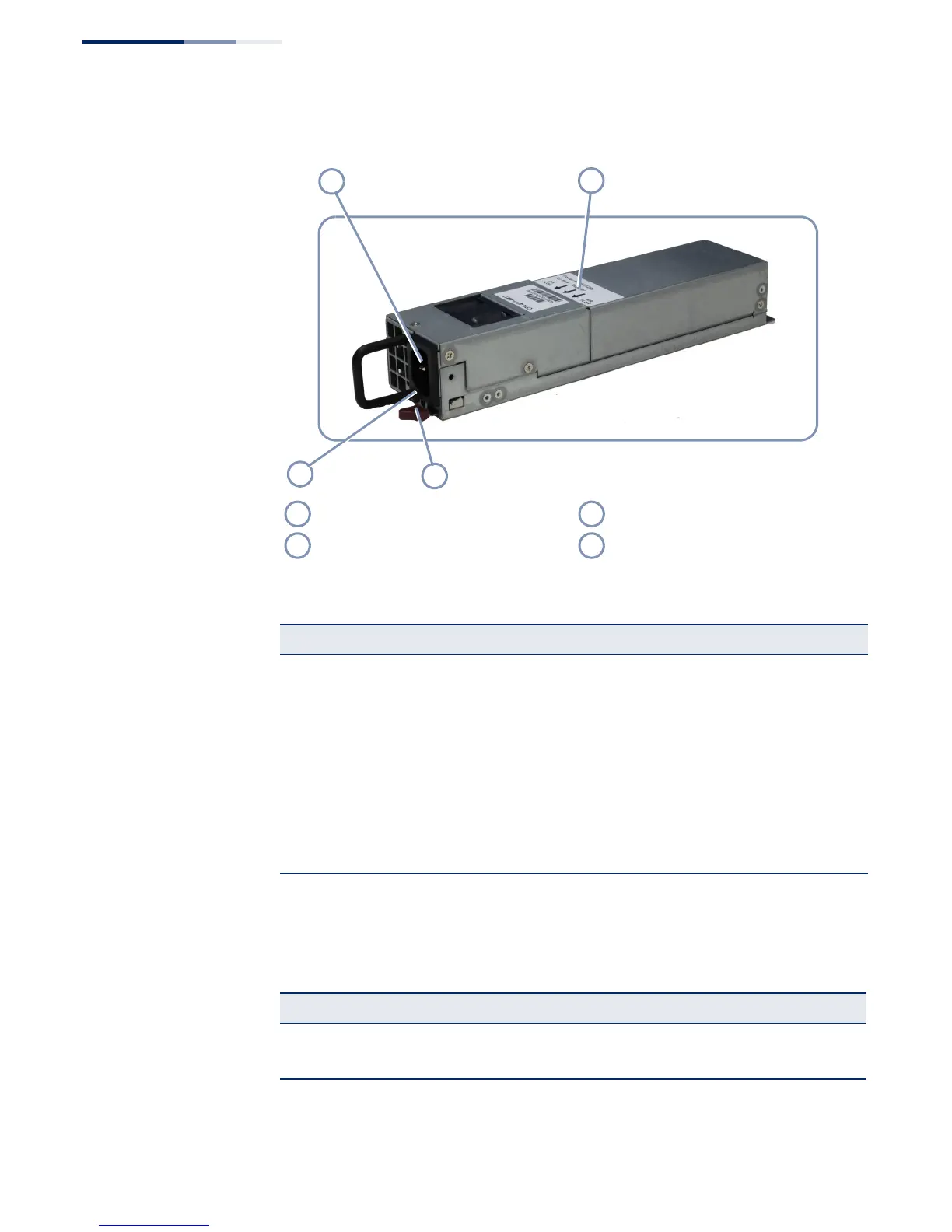

Figure 16: AC Power Supply Module
The PSU also includes an AC power status LED. This LED is described in the
following table.
AC Power Socket Release Lever
Power Supply Module LED Label indicates airflow direction of PSU
Table 3: AC Power Supply Module Specifications
Item Description
AC Input 100-240 VAC, 50-60 Hz, 6-3 A
DC Output +5 Vsb @ 3 A
12 Vdc @ 33 A
Power Supply 100-240 VAC, 50-60 Hz, auto-sensing; hot pluggable
350 Watts@ 220V/110V per module
Power Consumption 258 Watts maximum
Maximum Current 6 A @ 100 VAC
3 A @ 240 VAC
Size W x D x H: 220 x 54.5 x 40.25 mm (8.66 x 2.15 x 1.58 inches)
Figure 17: Power Supply Module LED
LED Condition Status
AC Green External AC power is connected to the module.
Off External power is not connected or has failed.
1
2
3
4
1
3
2
4

Edge-Core AS5610-52X Specifications

Operating Environment

operating temperature	0° C to 40° C
storage temperature	-40° C to 70° C
operating humidity	5% to 95% (non-condensing)

Power

AC input voltage	100-240 VAC
AC input frequency	50-60 Hz
AC input current	6-3 A
DC output 5V	3 A
DC output 12V	33 A
power consumption	165 Watts maximum
maximum current at 100 VAC	6 A
maximum current at 240 VAC	3 A
power supply power	400 Watts @ 240V/100V per module

Weight and Dimensions

width	438.4 mm
depth	473 mm
height	43.4 mm
weight	8.395 kg
power supply width	54.5 mm
power supply depth	220 mm
power supply height	40.25 mm
