Edge-Core AS5610-52X Installation Guide

Chapter 2 | Installation Overview
Switch Installation Tasks
– 19 –
Switch Installation Tasks
Follow these tasks to install the switch in your network. For full details on each task,
go to the relevant chapter or section by clicking on the link.
Caution: Before installing your switch, first review all the safety statements and
guidelines in the Regulatory and Safety Information document.
Unpack package and check contents
Unpack your switch and check the package contents to be sure you have received
all the items. See “Package Contents” on page 18.
Install the Chassis
The switch is designed to be installed in a standard 19-inch equipment rack. Plan
your rack installation and install the switch chassis in the rack. Be sure to take into
account switch cooling requirements.
Go to the chapter “Switch Chassis”

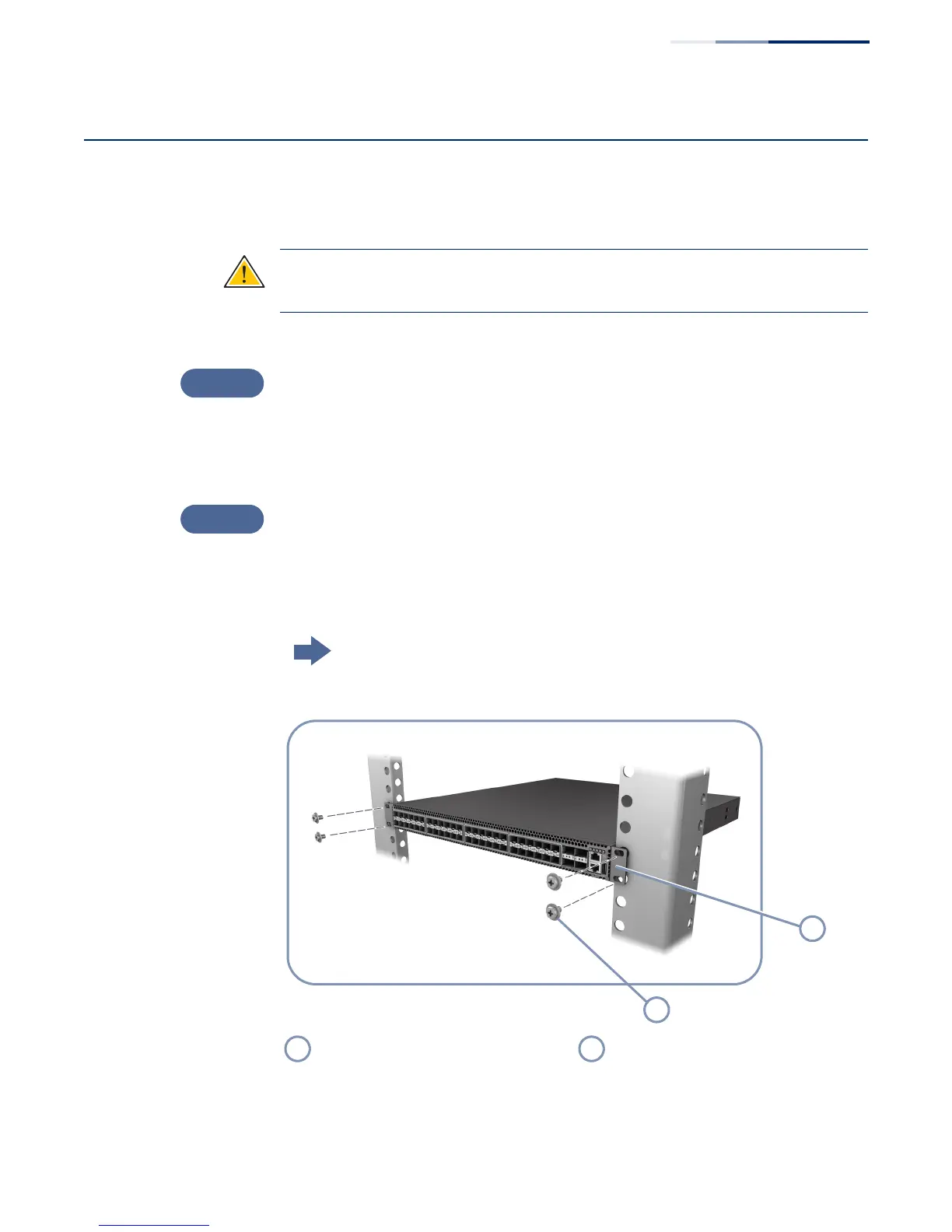

Figure 7: Installing the Switch in a Rack
Task 1
Task 2
Attach the brackets to the switch, Use the rack mounting screws supplied
with the rack to secure the switch in the
rack.
2
1
1
2

Edge-Core AS5610-52X Specifications

Operating Environment

operating temperature	0° C to 40° C
storage temperature	-40° C to 70° C
operating humidity	5% to 95% (non-condensing)

Power

AC input voltage	100-240 VAC
AC input frequency	50-60 Hz
AC input current	6-3 A
DC output 5V	3 A
DC output 12V	33 A
power consumption	165 Watts maximum
maximum current at 100 VAC	6 A
maximum current at 240 VAC	3 A
power supply power	400 Watts @ 240V/100V per module

Weight and Dimensions

width	438.4 mm
depth	473 mm
height	43.4 mm
weight	8.395 kg
power supply width	54.5 mm
power supply depth	220 mm
power supply height	40.25 mm
