Edge-Core AS5610-52X Installation Guide

Chapter 2 | Installation Overview
Switch Installation Tasks
– 21 –

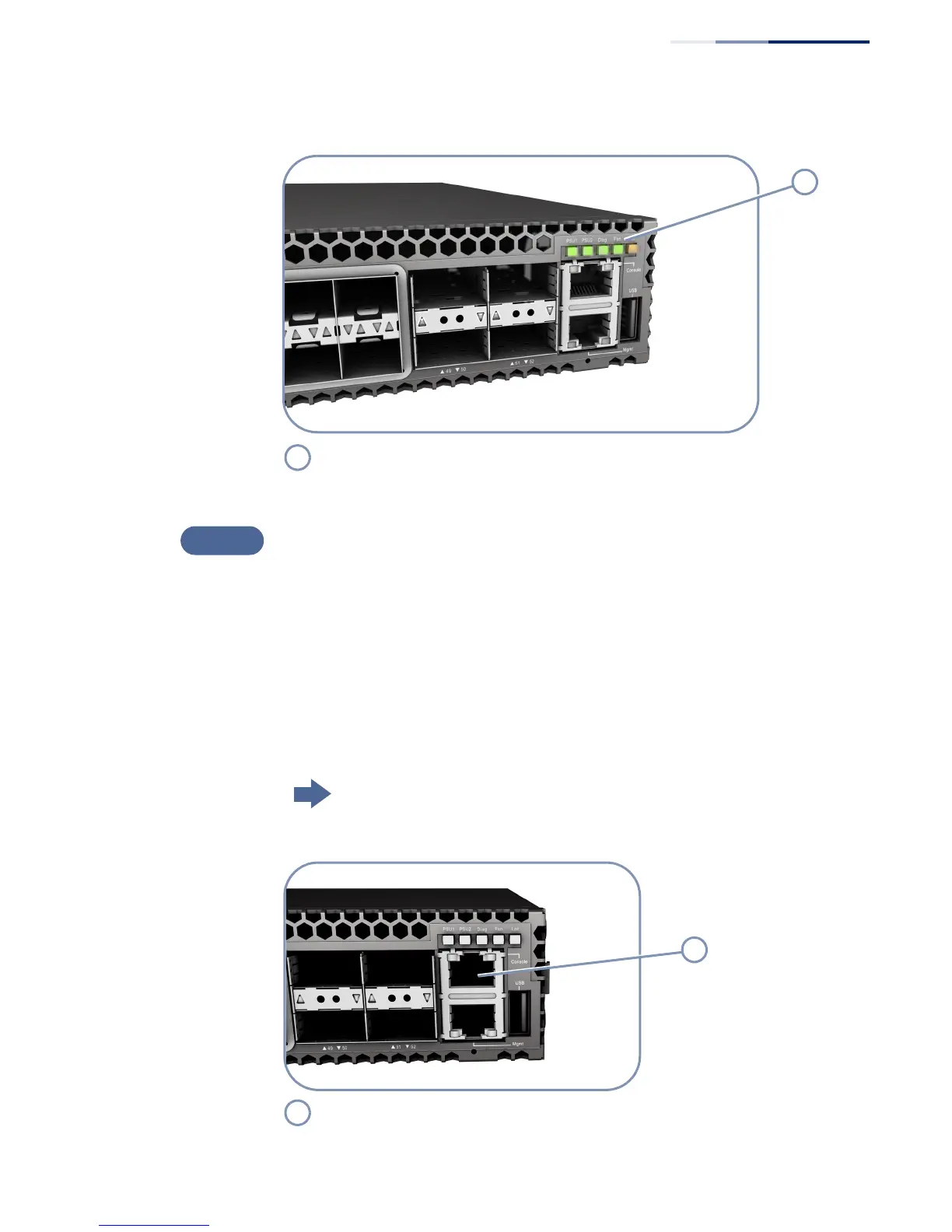

Figure 9: System LEDs
Make Initial Configuration Changes
At this point you may need to make a few basic switch configuration changes
before connecting to the network. It is suggested to connect to the switch console
port to perform this task.
The serial port’s configuration requirements are as follows: 9600 bps, 8 characters,
no parity, one stop bit, 8 data bits, and no flow control.
You can log in to the command-line interface (CLI) using default settings: User
“admin” with no password.
Go to “How to Connect to the Console Port”
Figure 10: Console Port
System Status LEDs.
1
1
Task 5
Console Port
1
1

Edge-Core AS5610-52X Specifications

Operating Environment

operating temperature	0° C to 40° C
storage temperature	-40° C to 70° C
operating humidity	5% to 95% (non-condensing)

Power

AC input voltage	100-240 VAC
AC input frequency	50-60 Hz
AC input current	6-3 A
DC output 5V	3 A
DC output 12V	33 A
power consumption	165 Watts maximum
maximum current at 100 VAC	6 A
maximum current at 240 VAC	3 A
power supply power	400 Watts @ 240V/100V per module

Weight and Dimensions

width	438.4 mm
depth	473 mm
height	43.4 mm
weight	8.395 kg
power supply width	54.5 mm
power supply depth	220 mm
power supply height	40.25 mm
