Edge-Core AS5610-52X Installation Guide

Chapter 4 | Power and Grounding
Grounding the Chassis
– 31 –
Grounding the Chassis
The switch chassis must be connected to ground to ensure proper operation and to
meet electromagnetic interference (EMI) and safety requirements.
The switch chassis is connected internally to 0 V, which is then grounded through
an installed AC PSU when it is connected to a grounded AC power outlet by an AC
power cord.
There are no grounding points on the switch that require a connection to a rack
ground or other earth ground.
How to Connect to AC Power
To supply AC power to the switch, first verify that the external AC power supply can
provide 100 to 240 VAC, 50-60 Hz, 6-3 A minimum.

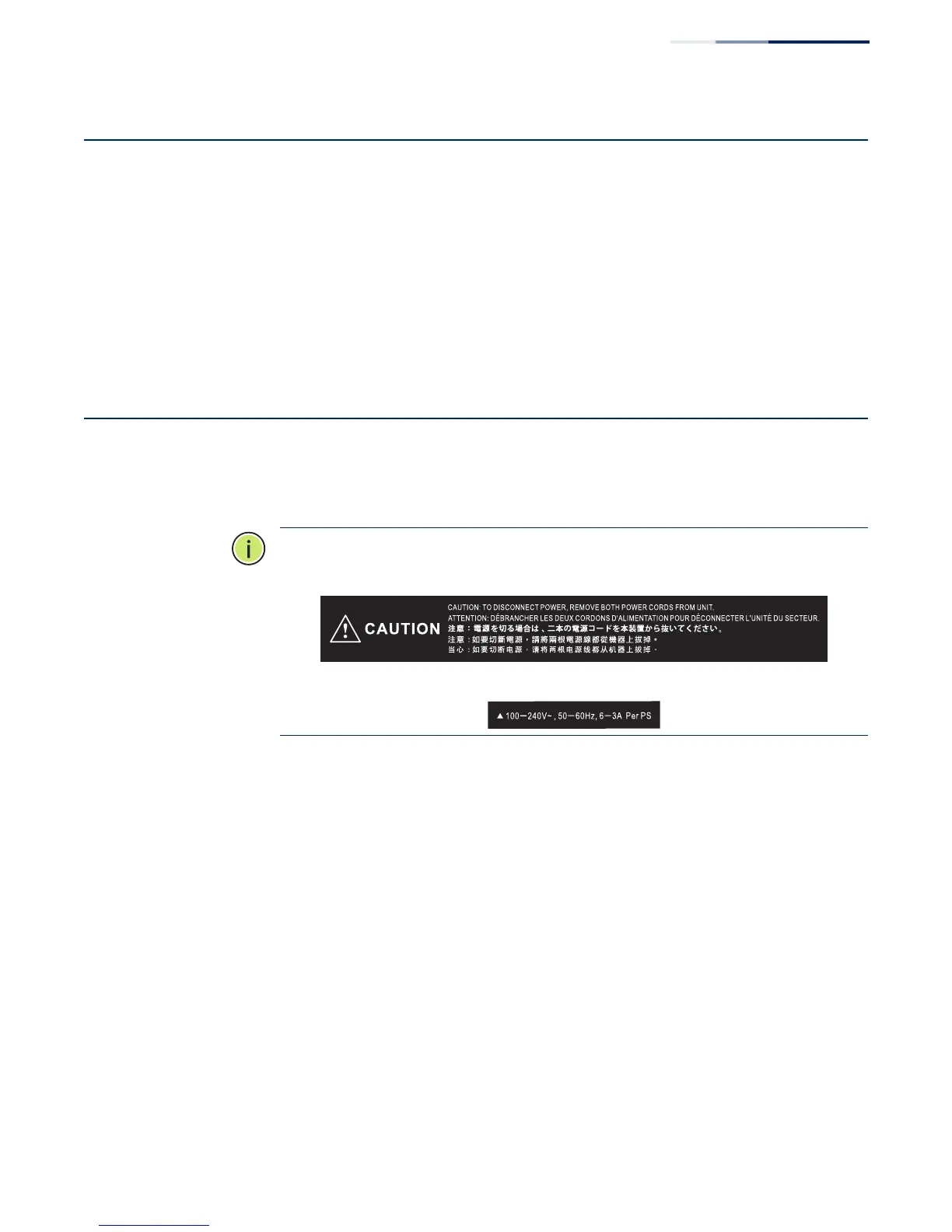

Note: For electrical safety purposes, please pay attention to the following warning
notices, printed on the switch unit.
To connect the switch to a power source:
1. Install one or two AC PSU modules. Slide them into the PSU slots at the rear of
the switch until they click into place. (Push the red release lever to remove a
module from the switch.)

Edge-Core AS5610-52X Specifications

Operating Environment

operating temperature	0° C to 40° C
storage temperature	-40° C to 70° C
operating humidity	5% to 95% (non-condensing)

Power

AC input voltage	100-240 VAC
AC input frequency	50-60 Hz
AC input current	6-3 A
DC output 5V	3 A
DC output 12V	33 A
power consumption	165 Watts maximum
maximum current at 100 VAC	6 A
maximum current at 240 VAC	3 A
power supply power	400 Watts @ 240V/100V per module

Weight and Dimensions

width	438.4 mm
depth	473 mm
height	43.4 mm
weight	8.395 kg
power supply width	54.5 mm
power supply depth	220 mm
power supply height	40.25 mm
