Edge-Core AS5610-52X Installation Guide

Chapter 4 | Power and Grounding
How to Connect to AC Power
– 32 –

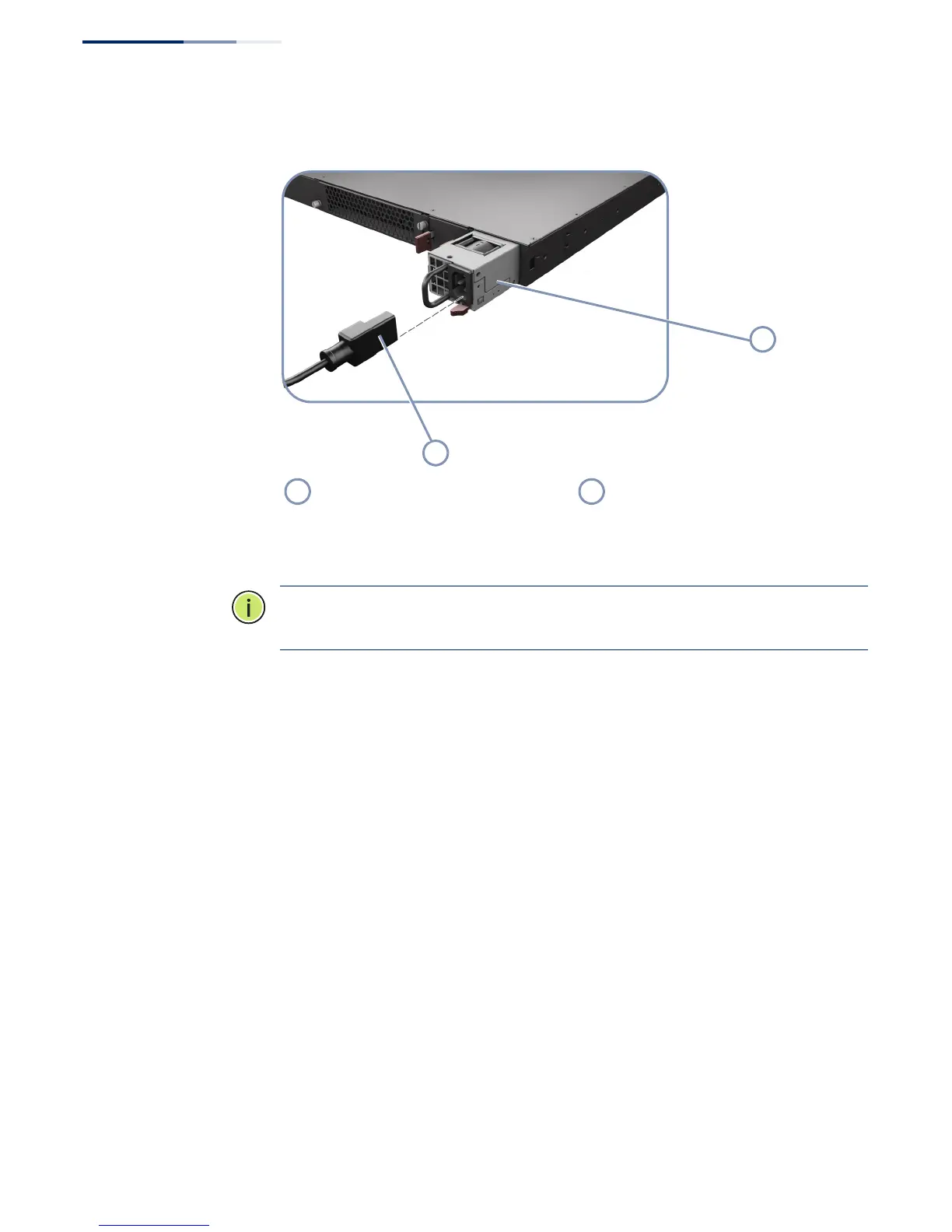

Figure 18: AC PSU and Power Socket
2. Plug the power cord into a grounded, 3-pin, AC power source.
Note: For international use, you may need to change the AC power cord. You must
use a cord set that has been approved for the socket type in your country.
3. Insert the plug on the other end of the power cord directly into the socket on
the AC PSU.
4. Check the LED indicators on the PSU and switch front panel as the unit is
powered on to verify that power is being received. If not, recheck the PSU and
power cord connections at the AC supply source and PSU.
5. If you have installed a second PSU, repeat steps 2 to 4.
AC Power Cord AC PSU
2
1
1
2

Edge-Core AS5610-52X Specifications

Operating Environment

operating temperature	0° C to 40° C
storage temperature	-40° C to 70° C
operating humidity	5% to 95% (non-condensing)

Power

AC input voltage	100-240 VAC
AC input frequency	50-60 Hz
AC input current	6-3 A
DC output 5V	3 A
DC output 12V	33 A
power consumption	165 Watts maximum
maximum current at 100 VAC	6 A
maximum current at 240 VAC	3 A
power supply power	400 Watts @ 240V/100V per module

Weight and Dimensions

width	438.4 mm
depth	473 mm
height	43.4 mm
weight	8.395 kg
power supply width	54.5 mm
power supply depth	220 mm
power supply height	40.25 mm
