Edge-Core AS5610-52X Installation Guide

Chapter 5 | Port Connections
How to Connect to the Twisted-Pair Copper Management Port
– 37 –

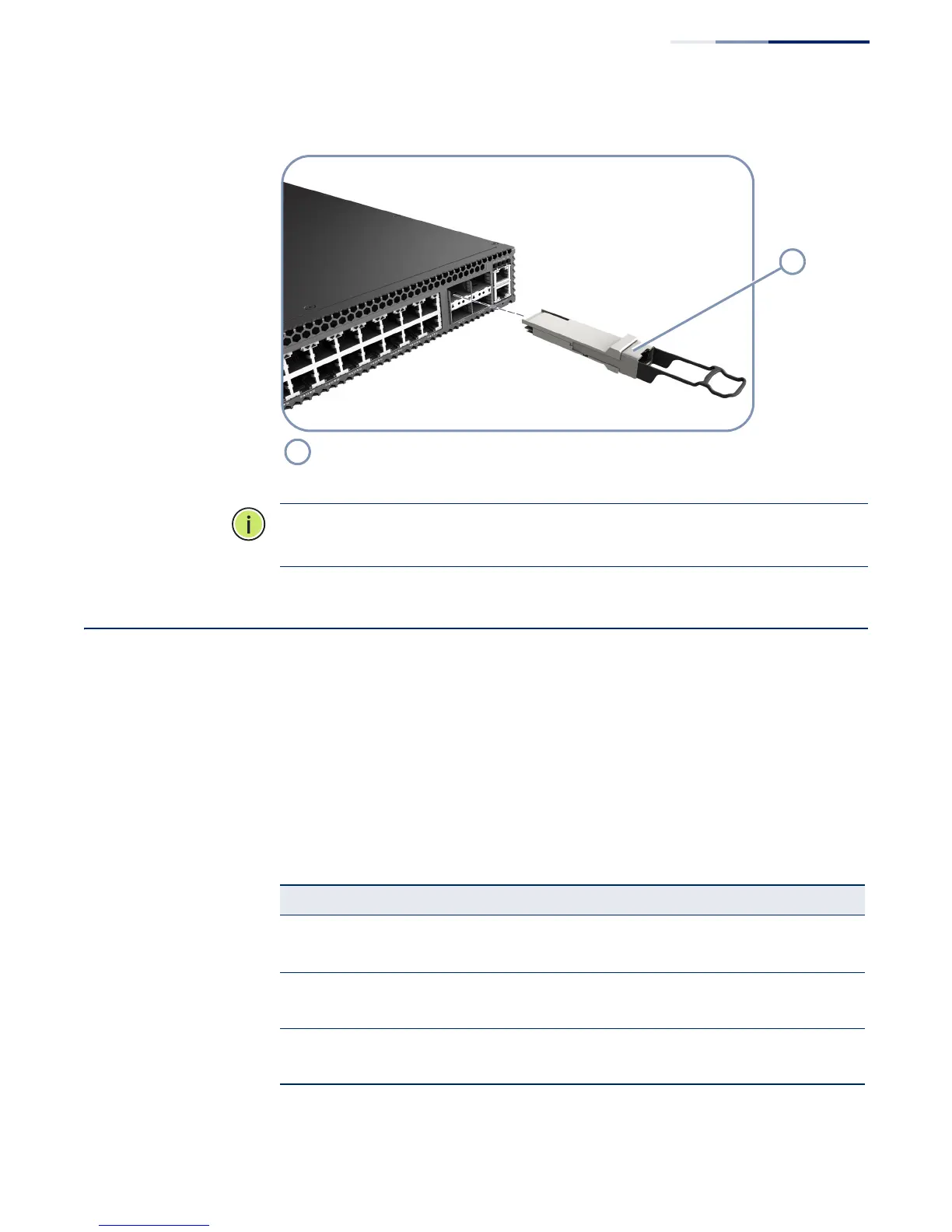

Figure 21: Inserting an SFP/SFP+/QSFP+ Transceiver into a Slot
Note: To uninstall a transceiver: First disconnect the network cable, then release
and pull the wire bail to remove the transceiver from the slot.
How to Connect to the Twisted-Pair Copper Management Port
The RJ-45 management port on the switch supports automatic MDI/MDI-X pinout
configuration, so you can use standard straight-through twisted-pair cables to
connect to any other network device (PCs, servers, switches, routers, or hubs).
The connection requires an unshielded twisted-pair (UTP) cable with RJ-45
connectors at both ends. Use Category 5, 5e or 6 cable for 1000BASE-T connections,
Category 5 or better for 100BASE-TX connections, and Category 3 or better for
10BASE-T connections.
QSFP+ Transceiver
1
1
Table 4: Maximum Twisted-Pair Copper Cable Lengths
Cable Type Maximum Cable Length Connector
1000BASE-T
Category 5, 5e, or 6 100-ohm UTP or STP 100 m (328 ft) RJ-45
100BASE-TX
Category 5 or better 100-ohm UTP or STP 100 m (328 ft) RJ-45
10BASE-T
Category 3 or better 100-ohm UTP 100 m (328 ft) RJ-45

Edge-Core AS5610-52X Specifications

Operating Environment

operating temperature	0° C to 40° C
storage temperature	-40° C to 70° C
operating humidity	5% to 95% (non-condensing)

Power

AC input voltage	100-240 VAC
AC input frequency	50-60 Hz
AC input current	6-3 A
DC output 5V	3 A
DC output 12V	33 A
power consumption	165 Watts maximum
maximum current at 100 VAC	6 A
maximum current at 240 VAC	3 A
power supply power	400 Watts @ 240V/100V per module

Weight and Dimensions

width	438.4 mm
depth	473 mm
height	43.4 mm
weight	8.395 kg
power supply width	54.5 mm
power supply depth	220 mm
power supply height	40.25 mm
