Edge-Core AS5610-52X Installation Guide

Chapter 5 | Port Connections
How to Connect to SFP/SFP+ Fiber Optic Ports
– 41 –
2. Check that the fiber terminators are clean. You can clean the cable plugs by
wiping them gently with a clean tissue or cotton ball moistened with a little
ethanol. Dirty fiber terminators on fiber cables will impair the quality of the
light transmitted through the cable and lead to degraded performance on the
port.
3. Connect one end of the cable to the LC connector on one of the switch’s SFP
transceivers and the other end to the LC port on the other device. Since both LC
connectors are keyed, the cable can only be attached in the correct orientation.

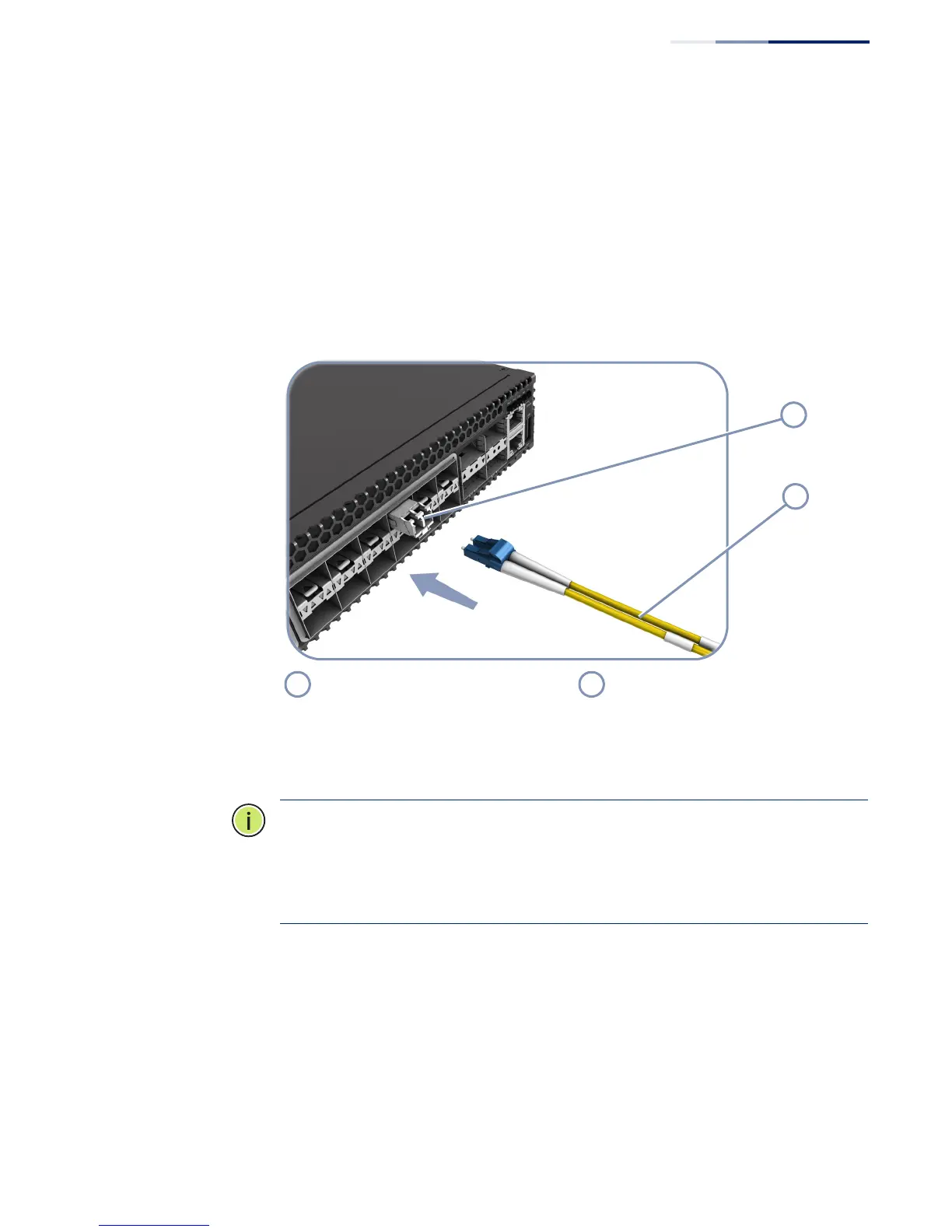

Figure 23: Making Connections to an SFP+ Transceiver
4. As a connection is made, check the Link LED on the switch corresponding to
the port to be sure that the connection is valid.
Note: Be sure to secure cables properly and route them away from the switch
without exceeding the minimum bending radius for fiber cables (typically a few
inches). Use cable ties to bundle cables together and secure coiled loops of excess
cable. Do not let cables hang free supporting their own weight or pull in any way
that puts stress on the connectors.
SFP+ Transceiver Fiber Optic Cable
2
1
1
2

Edge-Core AS5610-52X Specifications

Operating Environment

operating temperature	0° C to 40° C
storage temperature	-40° C to 70° C
operating humidity	5% to 95% (non-condensing)

Power

AC input voltage	100-240 VAC
AC input frequency	50-60 Hz
AC input current	6-3 A
DC output 5V	3 A
DC output 12V	33 A
power consumption	165 Watts maximum
maximum current at 100 VAC	6 A
maximum current at 240 VAC	3 A
power supply power	400 Watts @ 240V/100V per module

Weight and Dimensions

width	438.4 mm
depth	473 mm
height	43.4 mm
weight	8.395 kg
power supply width	54.5 mm
power supply depth	220 mm
power supply height	40.25 mm
