Edge-Core AS5610-52X Installation Guide

Chapter 1 | Switch Description
Data Center Deployment
– 16 –
When mounted in a rack with other network equipment that may have a back-to-
front (B2F) airflow direction, the top-of-rack switch includes power supply and fan
tray modules that reverse the airflow direction through the switch. This enables
various deployment options for the switch in the data center.

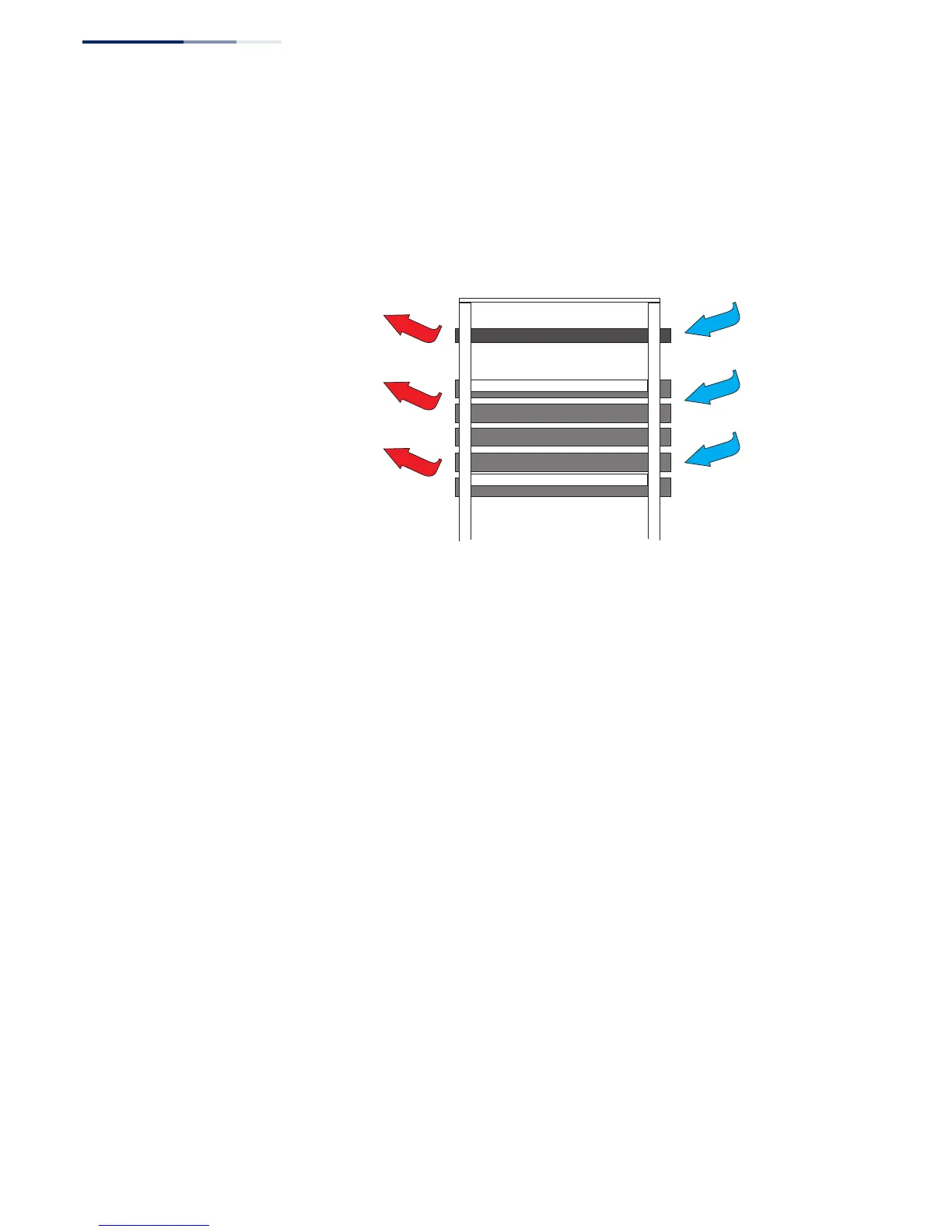

Figure 6: B2F Airflow Cooling
Servers
ToR Switch
Front of Rack
Rear of Rack
Cool Aisle
Hot Aisle

Edge-Core AS5610-52X Specifications

Operating Environment

operating temperature	0° C to 40° C
storage temperature	-40° C to 70° C
operating humidity	5% to 95% (non-condensing)

Power

AC input voltage	100-240 VAC
AC input frequency	50-60 Hz
AC input current	6-3 A
DC output 5V	3 A
DC output 12V	33 A
power consumption	165 Watts maximum
maximum current at 100 VAC	6 A
maximum current at 240 VAC	3 A
power supply power	400 Watts @ 240V/100V per module

Weight and Dimensions

width	438.4 mm
depth	473 mm
height	43.4 mm
weight	8.395 kg
power supply width	54.5 mm
power supply depth	220 mm
power supply height	40.25 mm
