Edge-Core AS5610-52X Installation Guide

Chapter 3 | Switch Chassis
How to Install the Switch in a Rack
– 25 –
1. Attach the brackets to the device using the screws provided in the Rack
Mounting Kit.

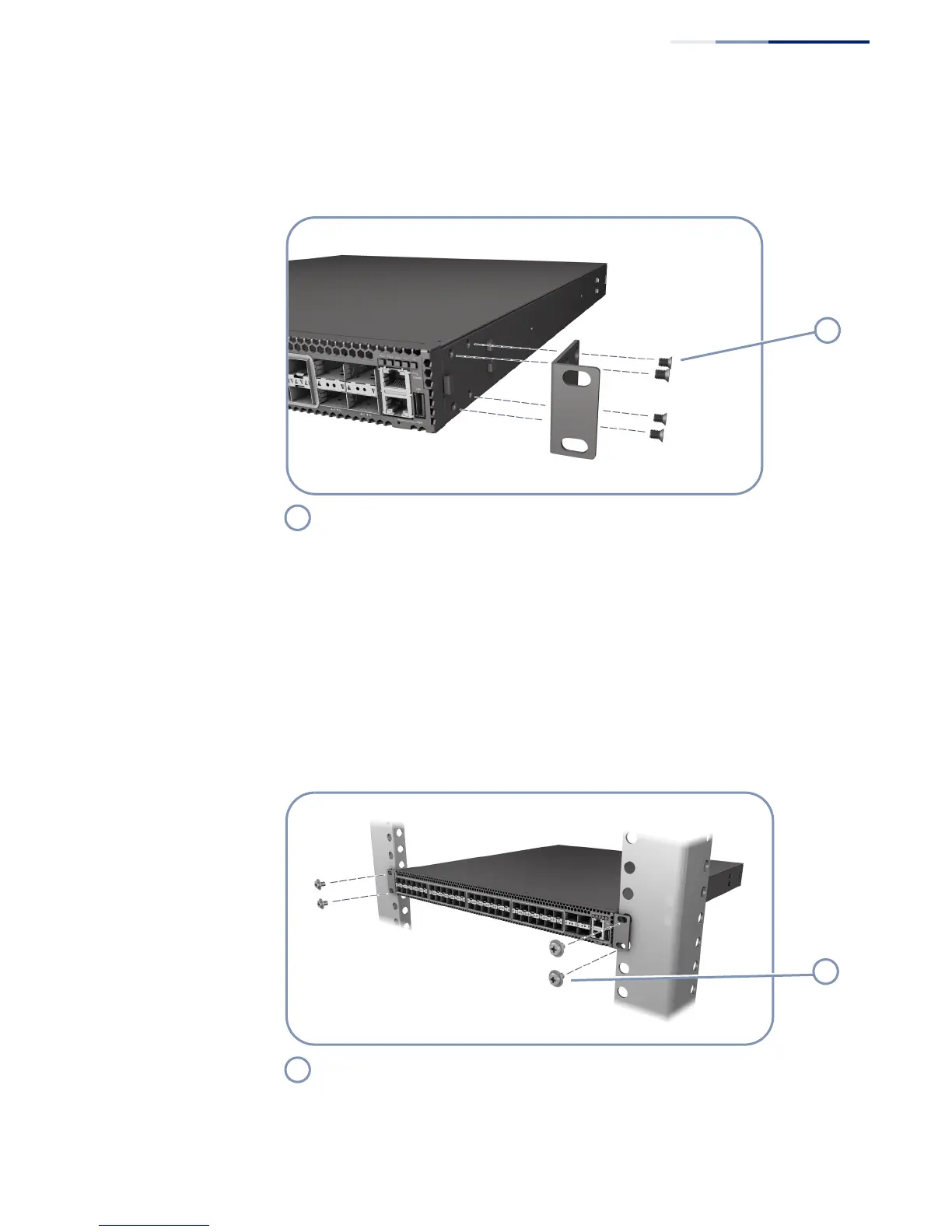

Figure 12: Attaching the Brackets
2. Following your rack plan, mark the holes in the rack where the switch will be
installed.
3. One person should lift the switch into the rack so that it is aligned with the
marked holes.
4. The second person should secure the switch in the rack, using four rack-
mounting screws (not provided).
Figure 13: Installing the Switch in a Rack
Use the screws provided in the Bracket
Mounting Kit.
Use the rack mounting screws supplied
with the rack.
1
1
1
1

Edge-Core AS5610-52X Specifications

Operating Environment

operating temperature	0° C to 40° C
storage temperature	-40° C to 70° C
operating humidity	5% to 95% (non-condensing)

Power

AC input voltage	100-240 VAC
AC input frequency	50-60 Hz
AC input current	6-3 A
DC output 5V	3 A
DC output 12V	33 A
power consumption	165 Watts maximum
maximum current at 100 VAC	6 A
maximum current at 240 VAC	3 A
power supply power	400 Watts @ 240V/100V per module

Weight and Dimensions

width	438.4 mm
depth	473 mm
height	43.4 mm
weight	8.395 kg
power supply width	54.5 mm
power supply depth	220 mm
power supply height	40.25 mm
