Edge-Core AS5610-52X Installation Guide

Chapter 6 | Switch Management
How to Connect to the Console Port
– 51 –
The following table describes the pin assignments used in the RJ-45-to-DB-9
console cable.
The serial port’s configuration requirements are as follows:
◆ Default Baud rate—9600 bps
◆ Character Size—8 Characters
◆ Parity—None
◆ Stop bit—One
◆ Data bits—8
◆ Flow control—none

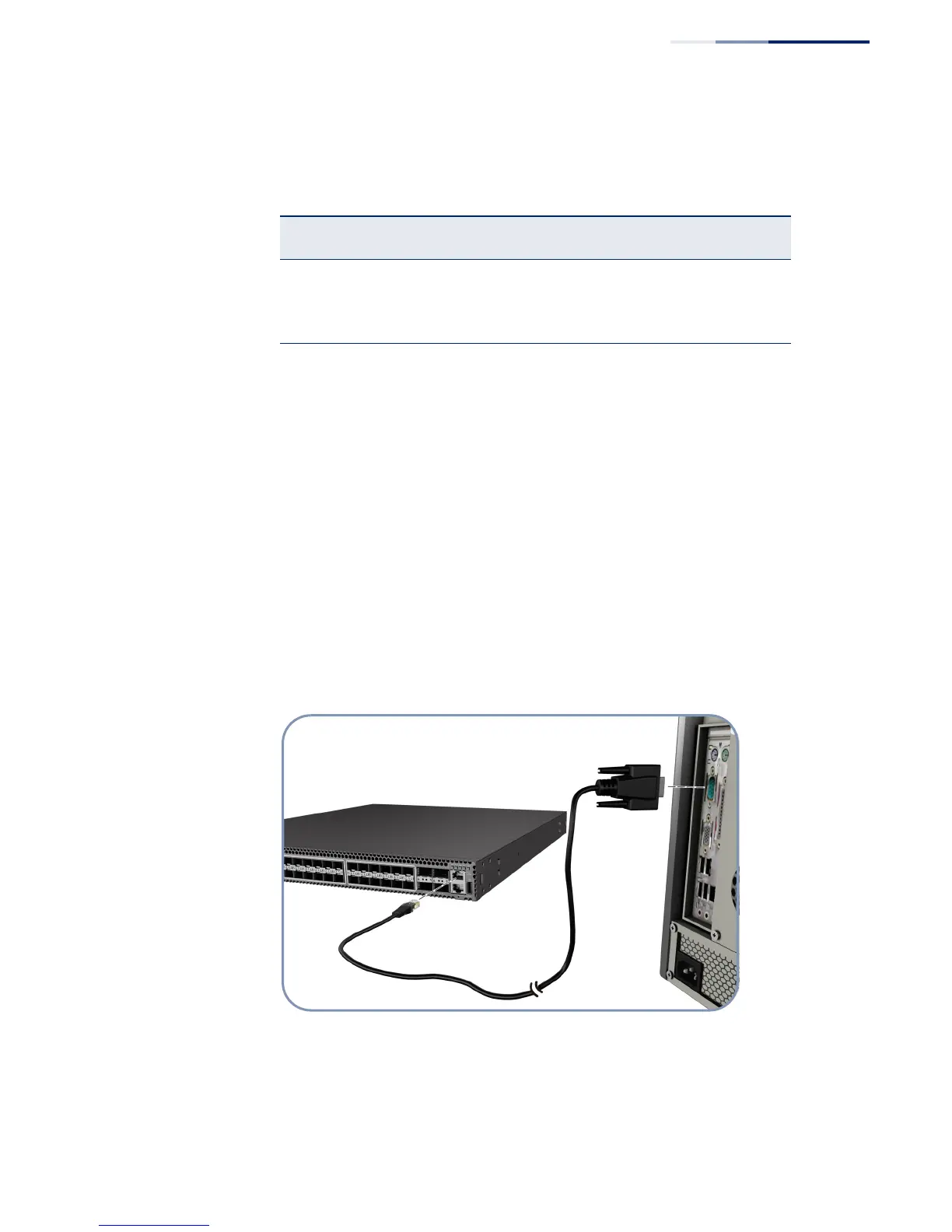

Figure 29: Console Port Connection
Follow these steps to connect to the Console port:
1. Attach the DB-9 end of the included RJ-45-to-DB-9 serial cable to a DB-9 COM
port connector on a management PC.
Table 13: Console Cable Wiring
Switch’s 8-Pin
Console Port
Null Modem PC’s 9-Pin
DTE Port
6 RXD (receive data) <--------------------- 3 TXD (transmit data)
3 TXD (transmit data) ---------------------> 2 RXD (receive data)
5 SGND (signal ground) ----------------------- 5 SGND (signal ground)
No other pins are used.

Edge-Core AS5610-52X Specifications

Operating Environment

operating temperature	0° C to 40° C
storage temperature	-40° C to 70° C
operating humidity	5% to 95% (non-condensing)

Power

AC input voltage	100-240 VAC
AC input frequency	50-60 Hz
AC input current	6-3 A
DC output 5V	3 A
DC output 12V	33 A
power consumption	165 Watts maximum
maximum current at 100 VAC	6 A
maximum current at 240 VAC	3 A
power supply power	400 Watts @ 240V/100V per module

Weight and Dimensions

width	438.4 mm
depth	473 mm
height	43.4 mm
weight	8.395 kg
power supply width	54.5 mm
power supply depth	220 mm
power supply height	40.25 mm
