Edge-Core AS5610-52X Installation Guide

Chapter 5 | Port Connections
Understanding the Port Status LEDs
– 35 –
Understanding the Port Status LEDs
The switch includes LED indicators for each port to indicate link status and network
activity. The port LEDs are shown below and described in the following table.

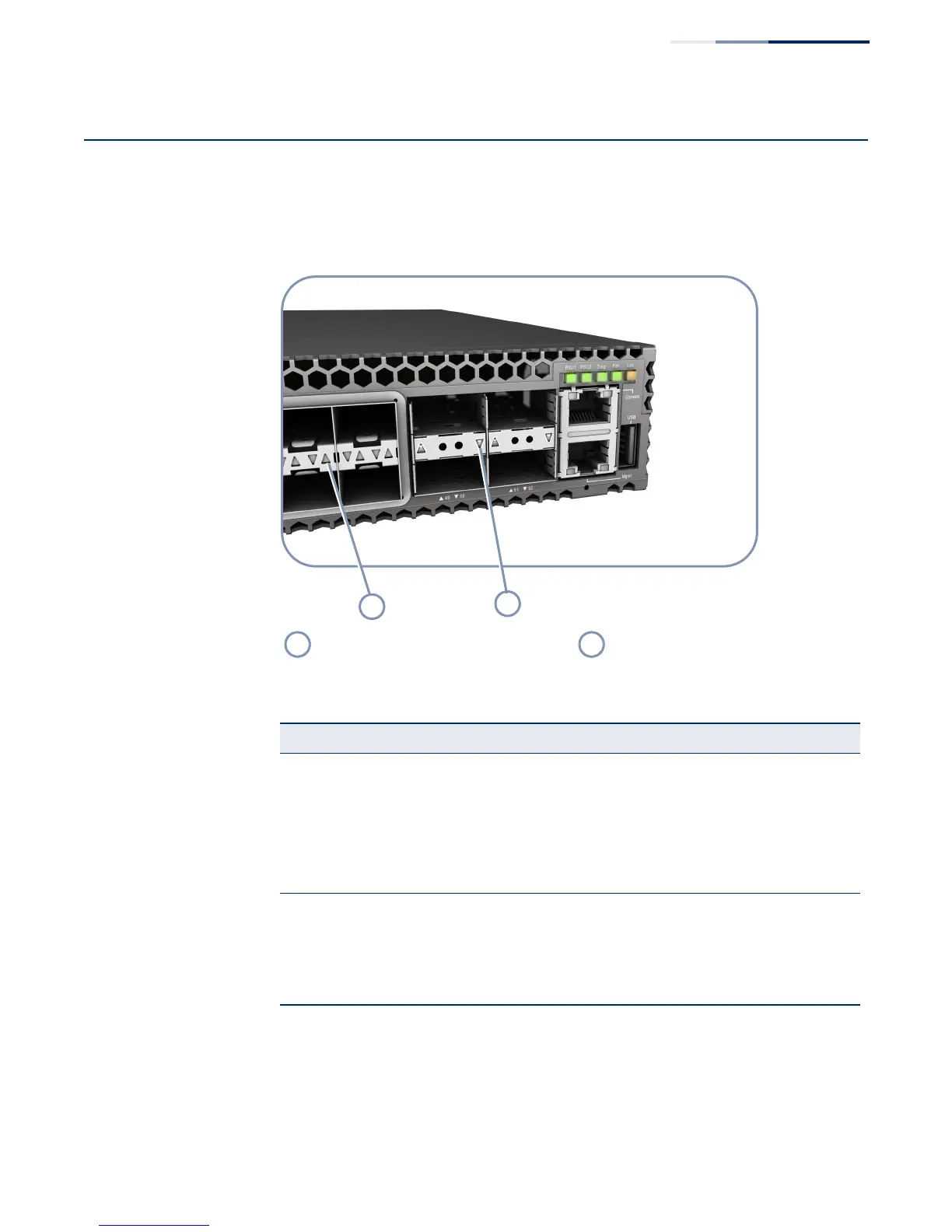

Figure 19: Port Status LEDs
Port 1-48 Link/Activity LEDs Port 49-52 Link/Activity LEDs
Figure 20: Port Status LEDs
LED Condition Status
10G SFP+ Ports (1-48)
Link/Activity On/Flashing Green Port has a valid 10G link. Flashing indicates
activity on the port.
On/Flashing Amber Port has a valid 1G link. Flashing indicates activity
on the port.
Off The link is down.
40G QSFP+ Ports (49-52)
Link/Activity On Green Port has a valid 40G link.
Flashing Green Flashing indicates activity on the port.
Off The link is down.
1
2
1
2

Edge-Core AS5610-52X Specifications

Operating Environment

operating temperature	0° C to 40° C
storage temperature	-40° C to 70° C
operating humidity	5% to 95% (non-condensing)

Power

AC input voltage	100-240 VAC
AC input frequency	50-60 Hz
AC input current	6-3 A
DC output 5V	3 A
DC output 12V	33 A
power consumption	165 Watts maximum
maximum current at 100 VAC	6 A
maximum current at 240 VAC	3 A
power supply power	400 Watts @ 240V/100V per module

Weight and Dimensions

width	438.4 mm
depth	473 mm
height	43.4 mm
weight	8.395 kg
power supply width	54.5 mm
power supply depth	220 mm
power supply height	40.25 mm
