Edge-Core AS5610-52X Installation Guide

Chapter 2 | Installation Overview
Switch Installation Tasks
– 22 –
For information on initial switch configuration:
Refer to the Administrator’s Guide.
Install Transceivers and Connect Cables
Install SFP+ or QSFP+ transceivers and connect network cables to port interfaces:
◆ Connect DAC cables to the SFP+/QSFP+ slots. Or first install SFP+/QSFP+
transceivers and then connect fiber optic cabling to the transceiver ports.
◆ For the RJ-45 Management port, use 100-ohm Category 5, 5e or better cable for
1000BASE-T connections.
As connections are made, check the port status LEDs to be sure the links are valid.
Go to the chapter “Port Connections”

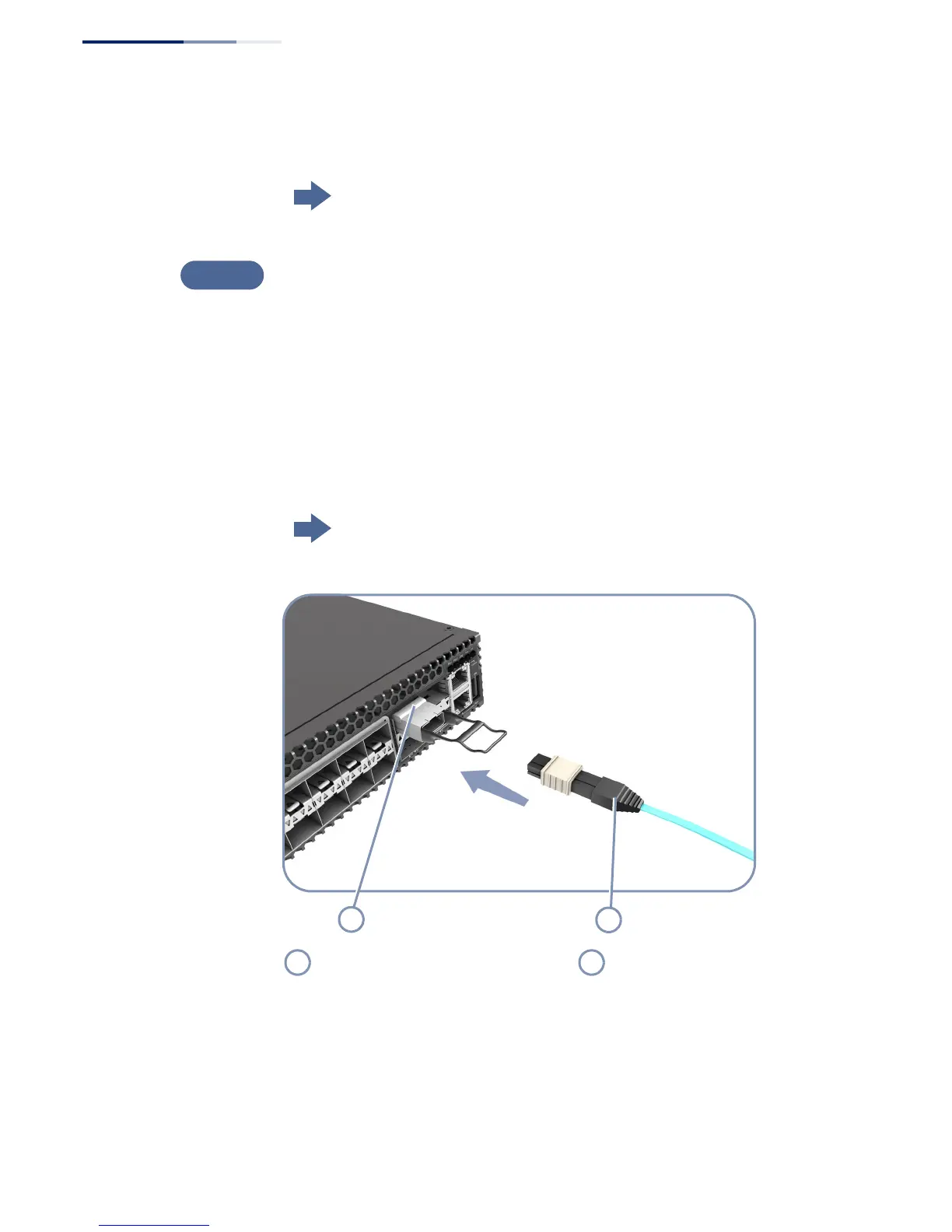

Figure 11: Making a Connection to a QSFP+ Transceiver
Task 6
Install QSFP+ transceivers. Connect fiber optic cabling to the ports.
1
2
1
2

Edge-Core AS5610-52X Specifications

Operating Environment

operating temperature	0° C to 40° C
storage temperature	-40° C to 70° C
operating humidity	5% to 95% (non-condensing)

Power

AC input voltage	100-240 VAC
AC input frequency	50-60 Hz
AC input current	6-3 A
DC output 5V	3 A
DC output 12V	33 A
power consumption	165 Watts maximum
maximum current at 100 VAC	6 A
maximum current at 240 VAC	3 A
power supply power	400 Watts @ 240V/100V per module

Weight and Dimensions

width	438.4 mm
depth	473 mm
height	43.4 mm
weight	8.395 kg
power supply width	54.5 mm
power supply depth	220 mm
power supply height	40.25 mm
