5-2 EDMI Atlas Hardware Reference Manual

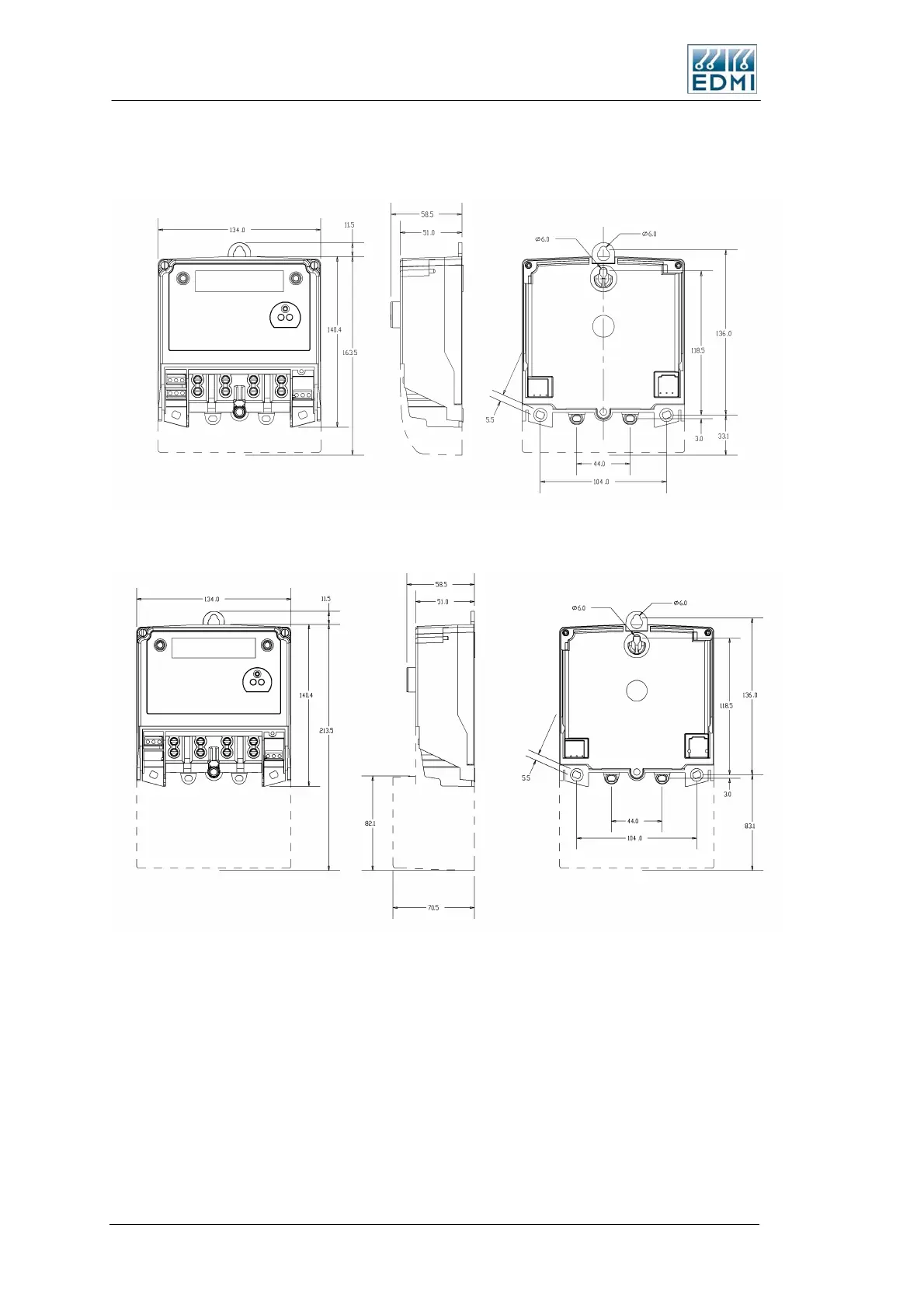

Figure 5-2 below gives more detailed dimensions for the meter. Figure 5-3 gives the

dimensions of the meter with a modem terminal cover fitted, which can house a GSM

modem.

• Figure 5-2 Dimensions with standard terminal cover

• Figure 5-3 Dimensions with modem terminal cover
