Under the Terminal Cover

• Figure 5-9 Terminal block diagram

TB4

TB3

TB2

TB1

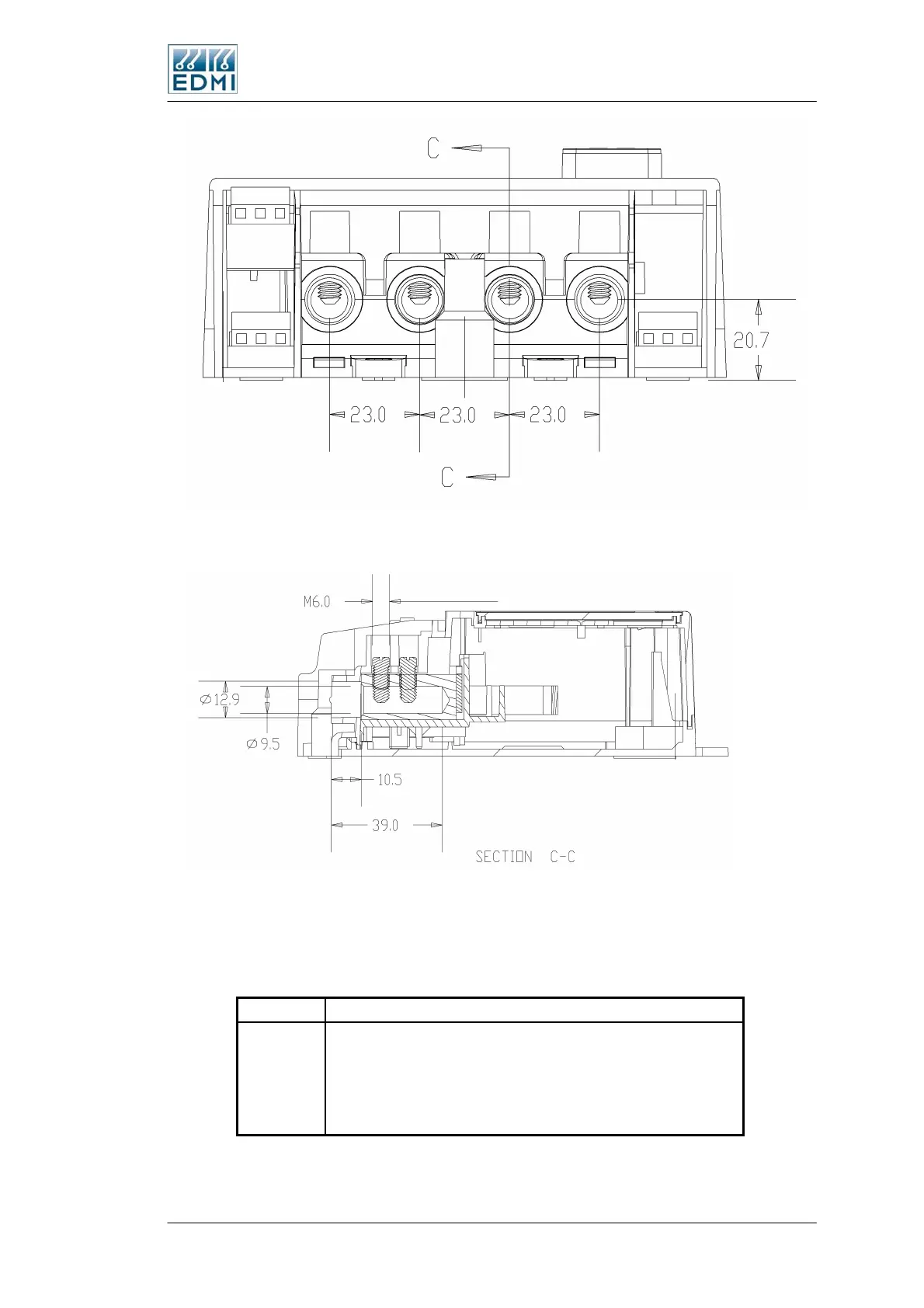

• Figure 5-10 TB1 terminal details

Table 5-2 to Table 5-7 list the terminal block connections for the various configurations.

All terminals numbered left to right.

Terminal Description

TB1 Voltage and current inputs.

TB1-1 Incoming Active

TB1-2 Incoming Neutral

TB1-3 Outgoing Neutral

TB1-4 Outgoing Active L1

• Table 5-2 Terminal block connections - Common

The Mk7C Meter 5-7
