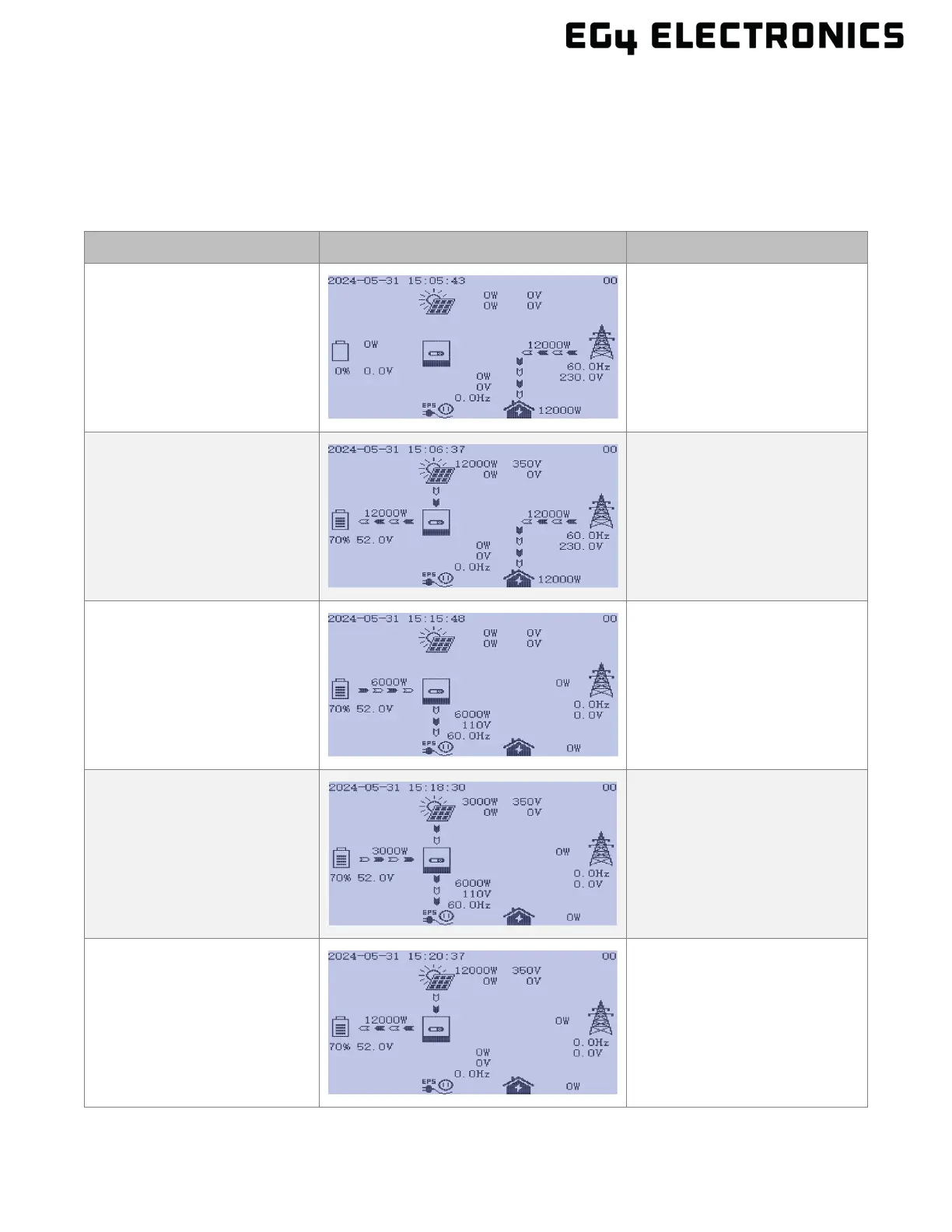

11.3 WORKING MODES
The table below describes how the inverter's LCD will display different modes of operation at a given
scenario. The inverter logic will automatically operate in one of the modes listed in the table below
without any required configuration. However, there are working mode settings that can be configured
within Monitor Center to control when a particular working mode is used.
MODE DIAGRAM COMMENTS
Bypass Mode
AC powers the load
PV Charge Bypass
PV charges the battery while
AC powers the load
BAT Off-Grid
Battery powers the load
PV+BAT Off-Grid
PV & Battery power the load
PV Charge
1. With EPS output switch
off, the inverter charges the
battery only
2. With battery power off, PV
can wake up the battery
automatically
To Next Page
