EG4 12000XP - Location Selection and Installation; Mounting the Inverter

11

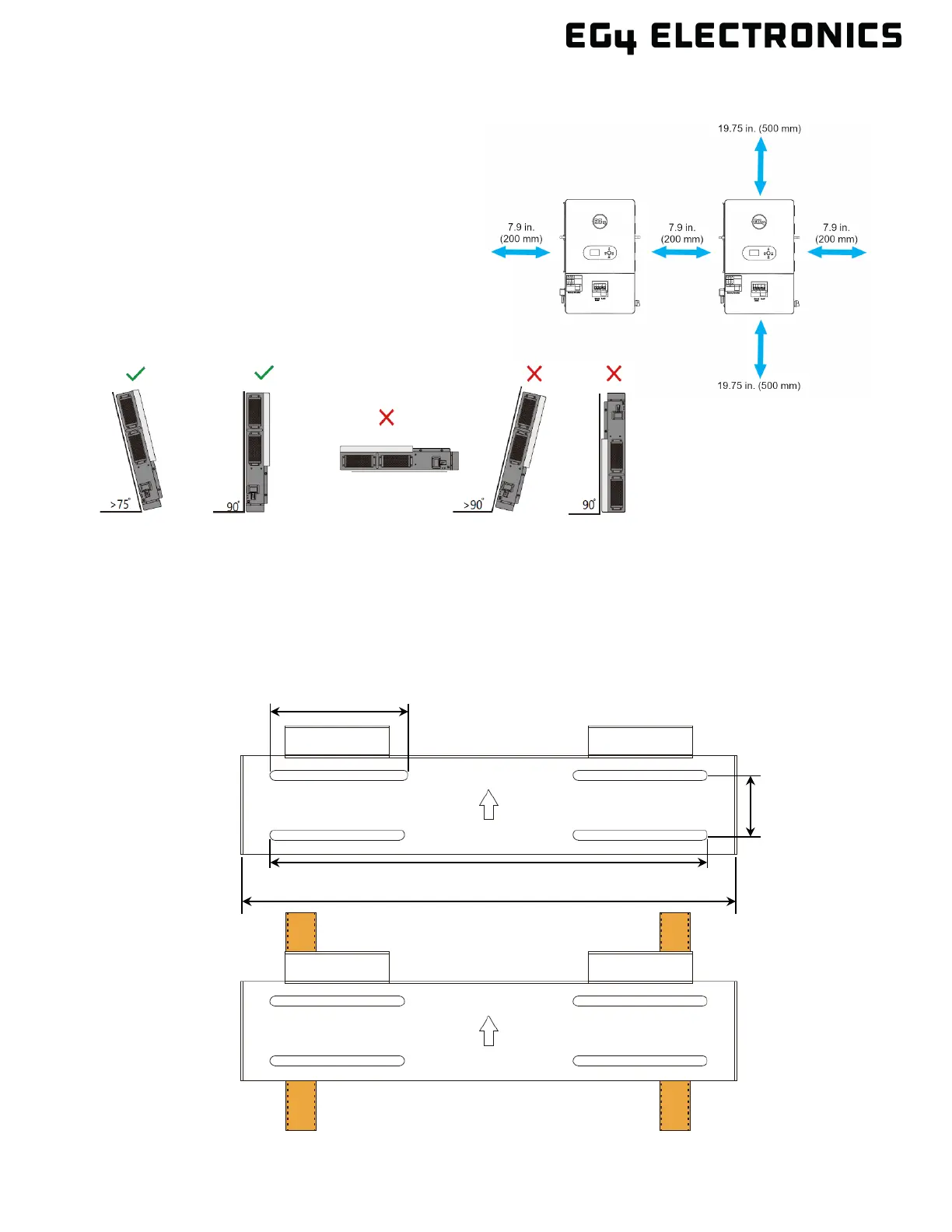

6.2 LOCATION SELECTION AND INSTALLATION
• The mounting wall should be strong
enough to bear the weight of the
inverter.
• Maintain the minimum clearances
presented to the right for adequate heat
dissipation.
• Install the inverter upright on a vertical
surface.
6.3 MOUNTING THE INVERTER
The inverter is designed to be vertically wall-mounted on a solid, non-combustible material such as
brick or concrete. Two or more people may be needed to install the inverter due to its weight (≈104.7
lbs.). The inverter is wall mounted using a wall mount bracket. The slots on the mounting bracket
can accommodate various stud spacings from 12 inches (305 mm) to 16 inches (406 mm), as shown
in the image below.
16 in. (406 mm)
2 3/8 in.
(60 mm)
5 3/16 in. (135 mm)
18 1/8 in. (460 mm)
17 5/16 in. (440 mm)
