50
12

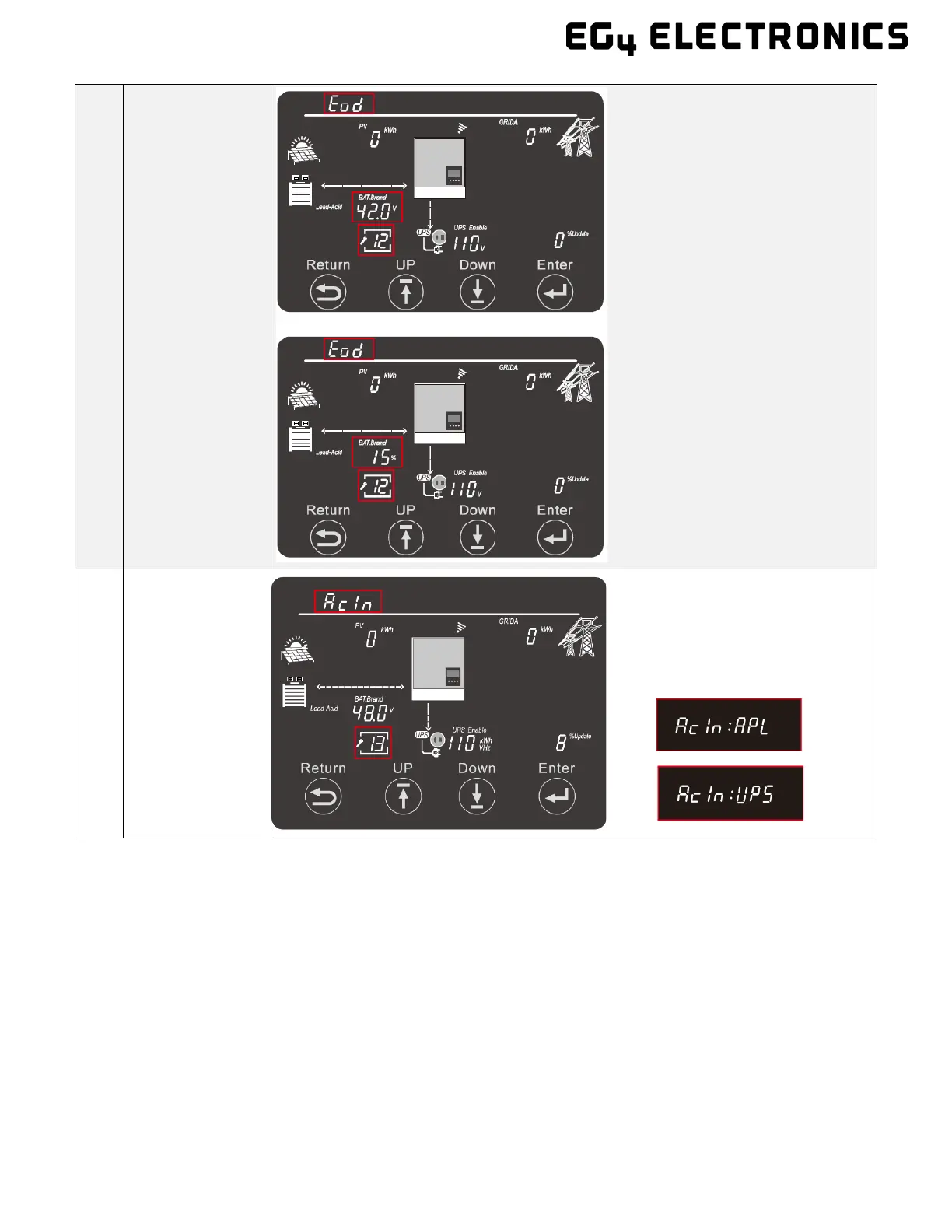

Eod:
Battery Discharge
Cuto
This setting allows the user to set
the End-Of-Discharge Voltage and
SOC parameters.
End of Discharge Cuto Voltage:
Range: Cuto Voltage – 58V
Default: 42V
End of Discharge Cuto SOC:
Range: Cuto SOC – 90%
Default: 15%
13
AC In:
AC Voltage Range
Setting
This setting allows the user to set
the AC Input Voltage Range
AC In Voltage Range:
APL – 90-280VAC
UPS – 170-280VAC
