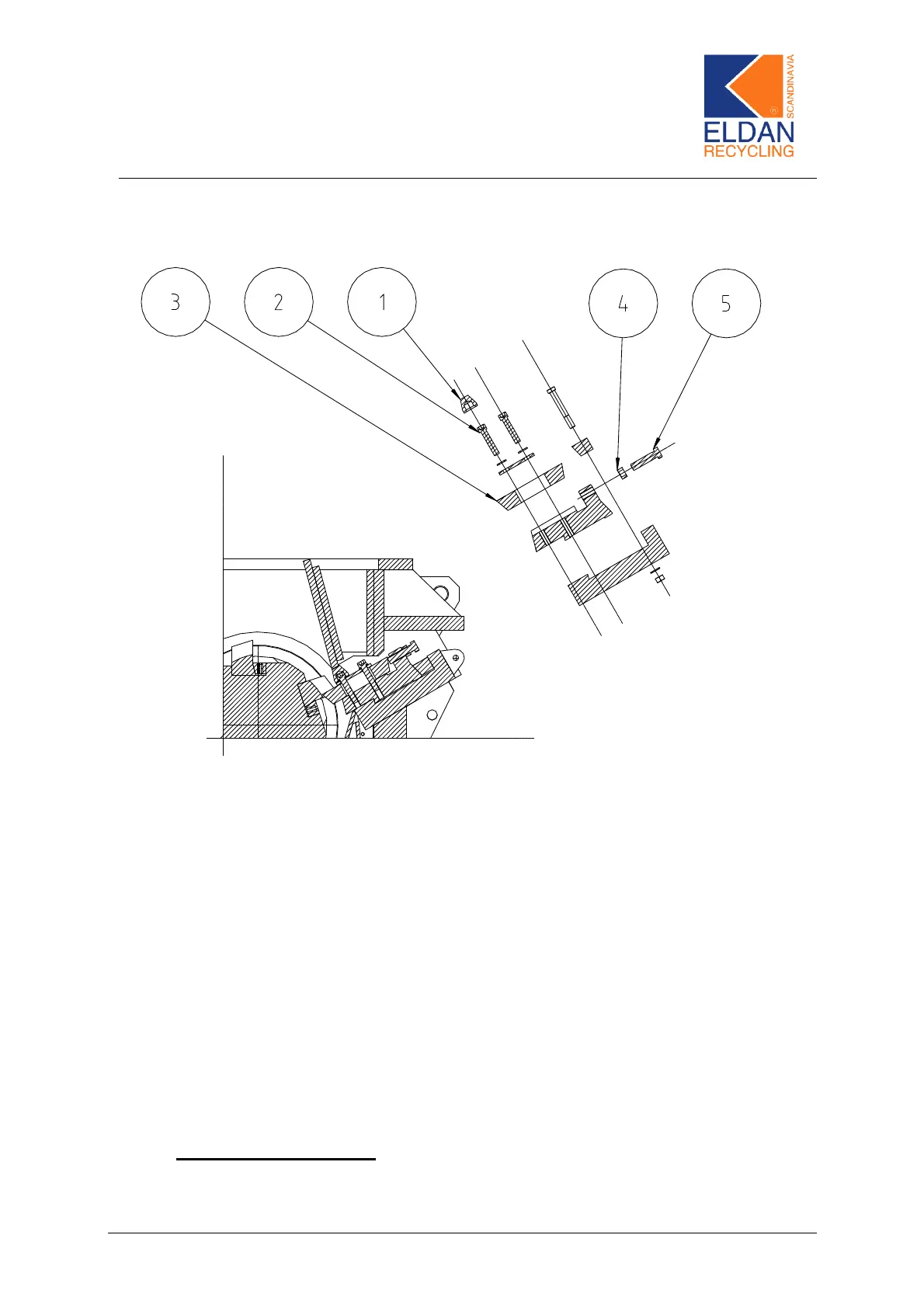

Figure 6
1) Remove the caps for the knife bolts Figure 6 - Pos. 1.
2) Before adjusting it is che cked that the counter nuts, Figure 6 - Pos.
4, and that the adjusting bolts, Figure 6 - Pos. 5, are loose.
3) Undo the knife retaining bolts Figure 6 - Pos. 2, using a 14 mm Allen
key socket and remove the knives, Figure 6 - Pos. 3.
4) Clean the knife holder and knife.
5) Fit the knife in place and insert the bolts.
6) Adjust knife and tighten the knife bolts.
Mount the caps above the knife bolts
Remove knife bolts
When the knife bolts are removed it is very important that the locking
washers are removed as a pair.
ELDAN Recycling A/S Page 28
