Pressure-Gauges
Dalager 1 DK-2605 Brøndby Fax +45 43 24 55 00 E-mail avn.hydraulik@avn.dk
Page
Suensonsvej 14 DK-8600 Silkeborg Fax +45 87 22 81 00 Internetadresse www.avn.dk
12.2.1
+45 70 20 04 11
Sizes: Ø 63 mm. Glass: Plexi glass
Precision Class: 1,6 (± 1,6% of maximal Max. working pressure: Constant load: 3/4 x full scale value
scale value). Alternating load: 2/3 x full scale value
Thread: G 1/4”
Connections: Brass 58 – UNI5705. Temperature: -Medium Tmin. –25°C, Tmax. 80°C
-Ambient Tmin. –25°C, Tmax. 60°C
Material housing: Stainless Steel Scale: - bar (standard)
Technical Data:

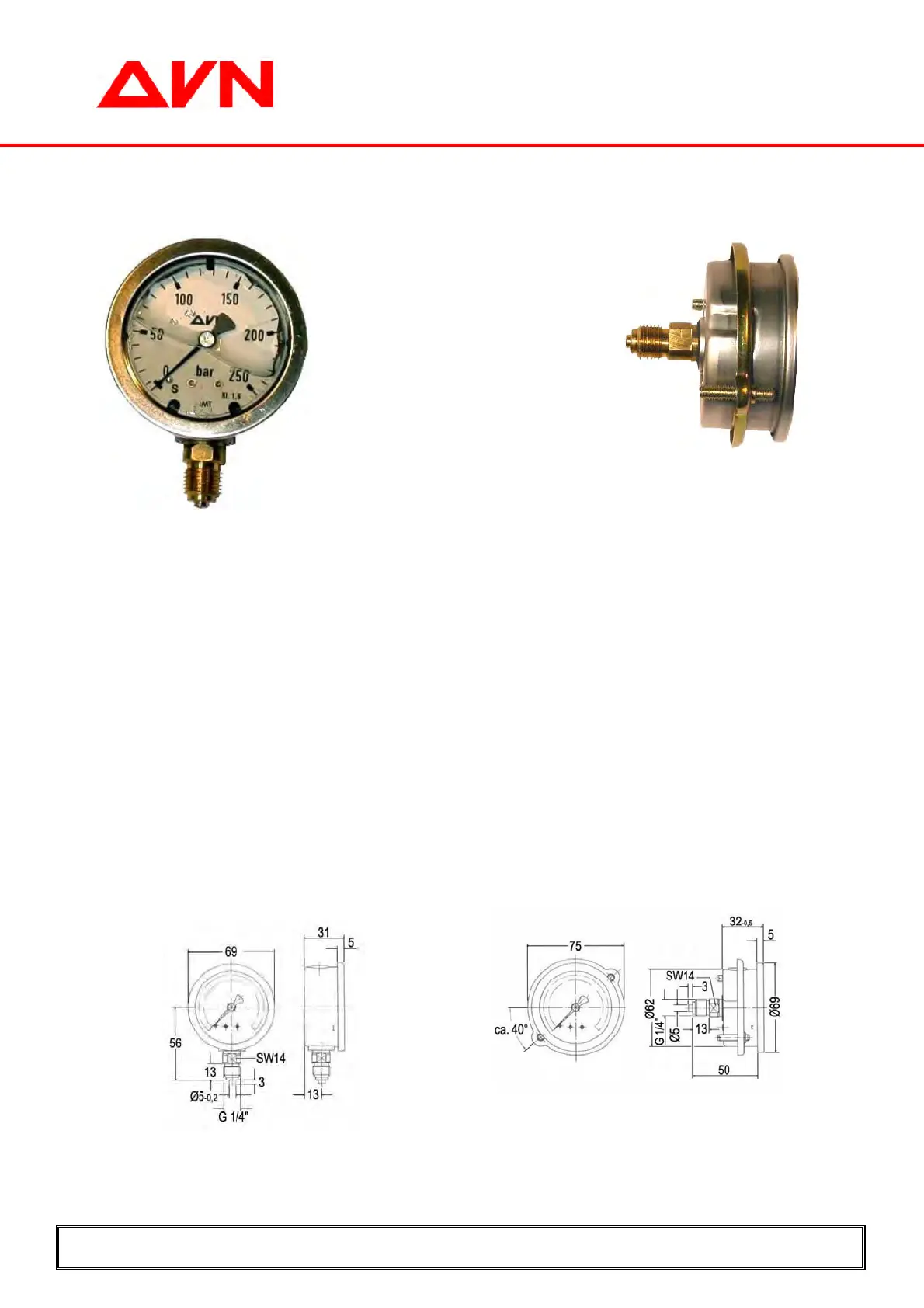

Dimensions:
Lower connection
Back connection with mounting bracket
for panel mounting (order separate)
rev. 0
Glycerine filled
Ø63 mm
Lower connection or
back connection.
Housing: Stainless steel
